Programming

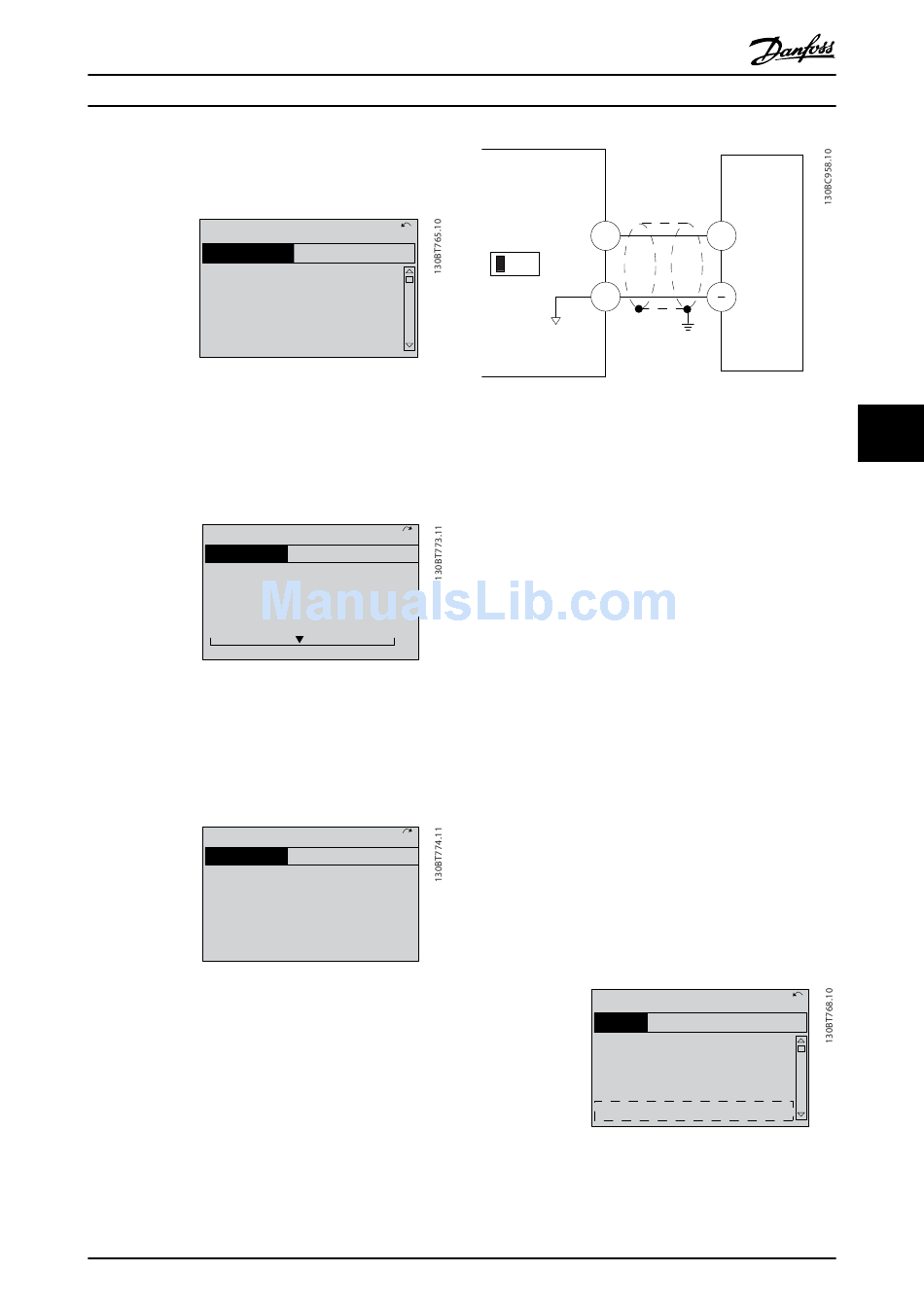

5. 6-11 Terminal 53 High Voltage. Set the maximum
external voltage reference on Terminal 53 to 10
V. (This sets the maximum input signal at 10 V).
14.7%
Analog Reference
6-11 Terminal 53 High
Voltage
10.00 V
Illustration 6.5 Programming Example Step 5
6. 6-14 Terminal 53 Low Ref./Feedb. Value. Set the
minimum speed reference on terminal 53 to 6 Hz.
(This tells the frequency converter that the
minimum voltage received on terminal 53 (0 V)
equals 6 Hz output).
14.7 %
Analog Reference
6 - 14 Terminal 53 Low
Ref./Feedb. Value
000020.000
Illustration 6.6 Programming Example Step 6
7. 6-15 Terminal 53 High Ref./Feedb. Value. Set the
maximum speed reference on terminal 53 to 60
Hz. (This tells the frequency converter that the
maximum voltage received on terminal 53 (10 V)
equals 60 Hz output).
14.7 %
Analog Reference
6 - 15 Terminal 53 High
Ref./Feedb. Value
50.000
Illustration 6.7 Programming Example Step 7
With an external device providing a 0-10 V control signal
connected to frequency converter terminal 53, the system
is now ready for operation. Note that the scroll bar on the
right in the last illustration of the display is at the bottom,
indicating the procedure is complete.
Illustration 6.8 shows the wiring connections used to
enable this set-up.
MG16J202
Operating Instructions
0.00A 1(1)
Q3-21
6.3 Control Terminal Programming
0.00 A 1(1)
Control terminals can be programmed.
Q3-21
See Table 6.1 for control terminal parameter number and
default setting. (Default setting can change based on the
selection in 0-03 Regional Settings).
0.00 A 1(1)
Q3-21
The following example shows accessing terminal 18 to see
the default setting.
Danfoss A/S © Rev. 05/2014 All rights reserved.
53
6-1*
U - I
A53
55
Illustration 6.8 Wiring Example for External Device Providing
0-10 V Control Signal (Frequency Converter Left, External
Device Right)
Examples
•
Each terminal has specified functions it is capable
of performing.
•
Parameters associated with the terminal enable
the function.
•
For proper frequency converter functioning, the
control terminals must be:
- Wired properly
- Programmed for the intended function
- Receiving a signal
1. Press [Main Menu] twice, scroll to parameter
group 5-** Digital In/Out Parameter Data Set and
press [OK].
14.6%
Main Menu
2-** Brakes
3-** Reference / Ramps
4-** Limits / Warnings
5-** Digital In/Out
Illustration 6.9 Main Menu Display Example
+
0-10V
6
0.00A 1(1)
69
