With the measurement object line, polyline, rectangle. Plygon, ellipse, the analogue signal can also refer
to maximum or minimum temperature. For an ROI, however, only one value (the average or maximum or
minimum) can be selected and linked to one of the two analogue outputs. Should two analogue signals
be needed, for example the average and maximum of one surface, this must be entered twice.

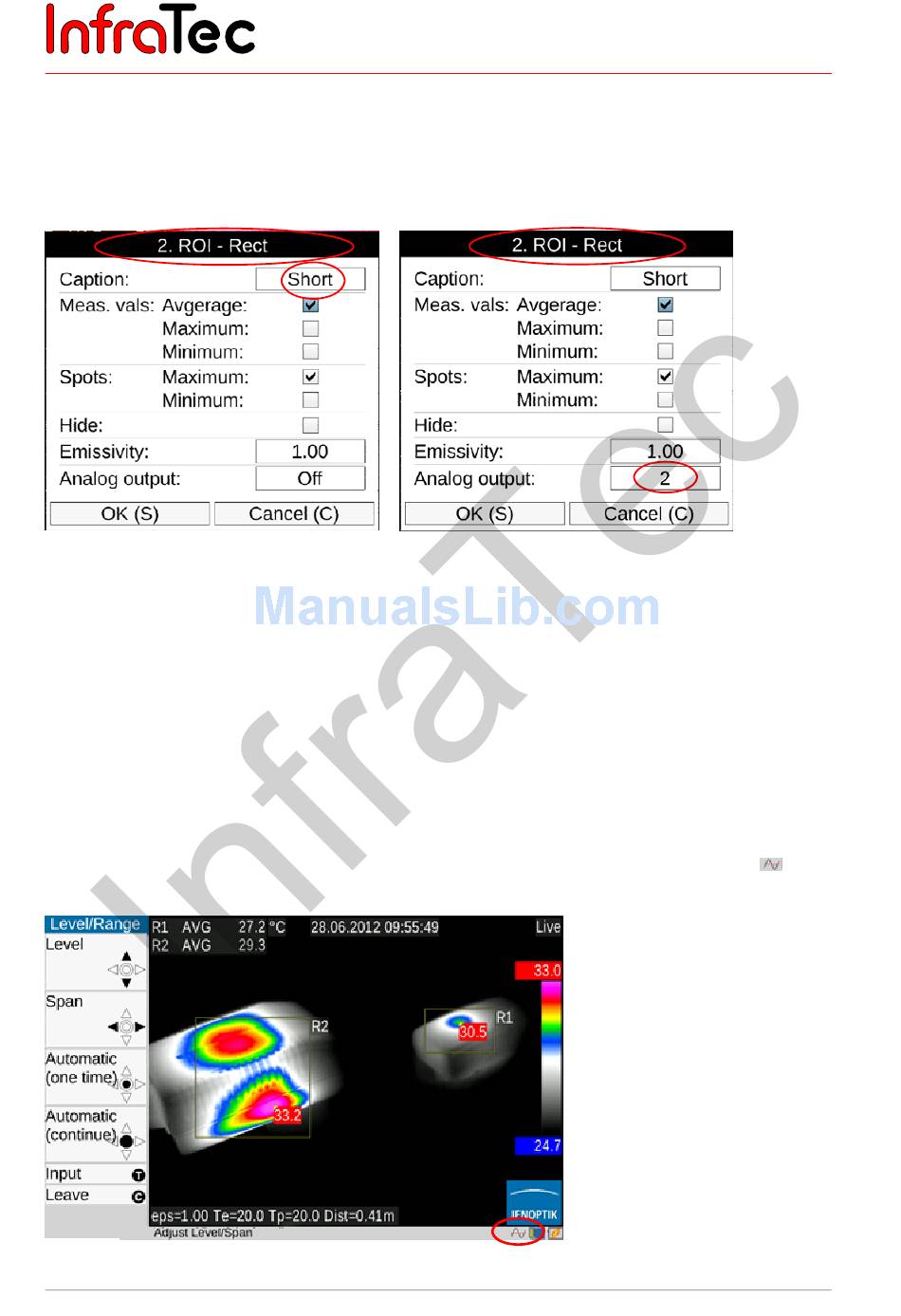

Fig. 141. 142: Activation of the analogue output - example rectangle: maximum or minimum
The assignment of average, maximum or minimum for analogue output is done by choosing from the
measured value display. For the settings, the following rules apply:
Analogue value output
depends on
■ Mean
■ Maximum
■ Minimum
If additional display are shown that are not in accordance with the desired analogue value output, for
example display of the maximum for analogue output dependent on the minimum, an additional, identical
ROI must be set for the additional display. The activated alarm is displayed as a sine symbol
status line:
Activated analogue output
Fig. 143:
62
Measured value display
Mean or no selection
Maximum, mean value must not be selected
Minimum, average and/or maximum must not be selected
