9.1

Menu "Image"

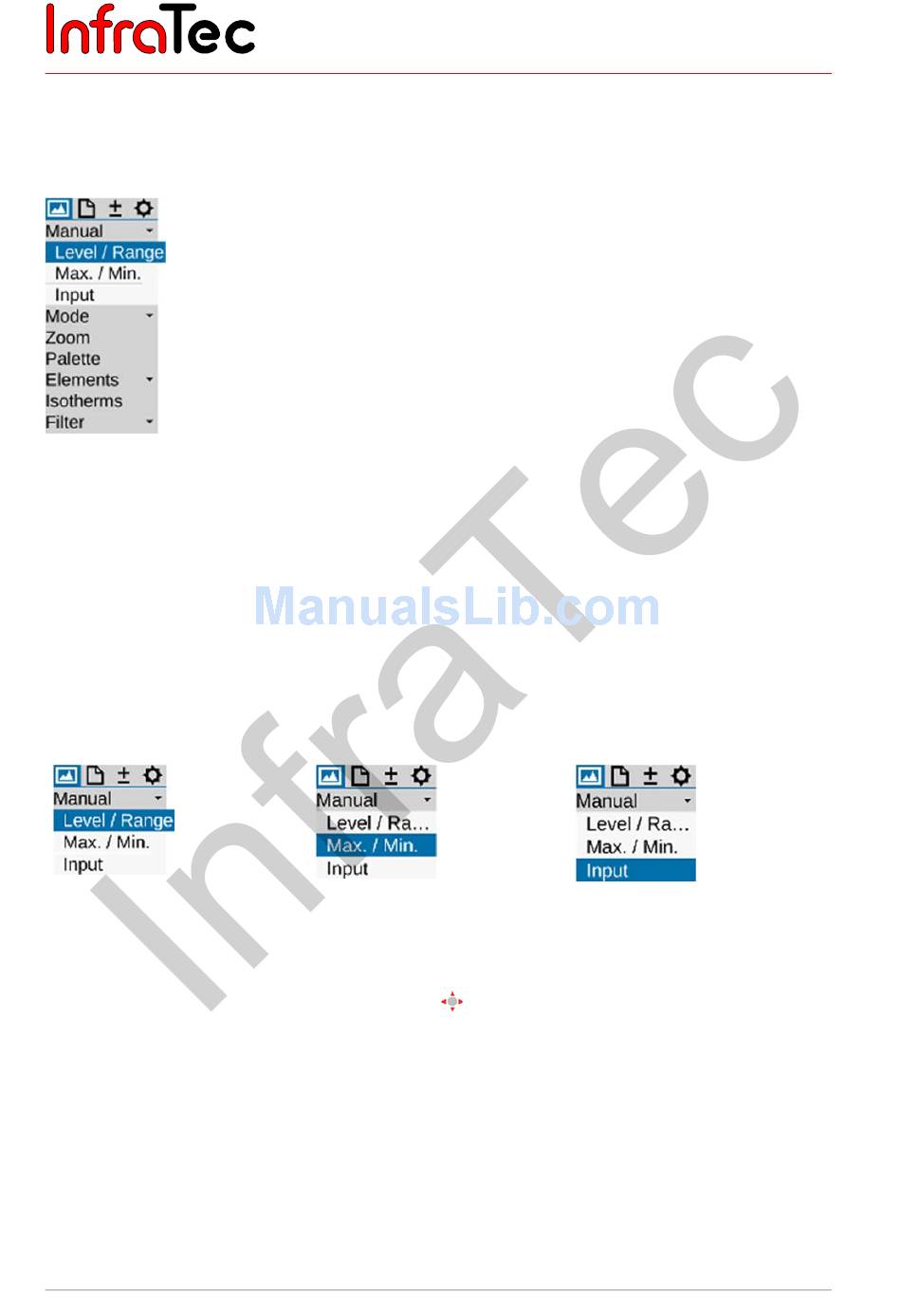

Fig. 39 shows the "Image" menu. This menu constitutes a summary of the settings relevant for the
representation of the thermal image.
Fig. 39 Menu "Image", dropped down "Manual" sub-menu
9.1.1

Menu item "Manual"

The option of manually setting the temperature scale is a central function of each thermography camera.
Therefore, this function is arranged in a quickly accessible menu in the left top area of the main menu of
®
the VarioCAM HD. Setting the temperature scale allows for a visual allocation of temperatures to the
displayed scene by means of the false color representation of the thermal image. Maximum and minimum
values of the currently set temperature range are indicated by the corresponding figures above and below
the arranged colour palette.
3 different modes can be selected for manually setting the temperature range in the "Manual" menu item:
Fig. 40 Menu selection for
manually setting
level/range
Depending on the selected input variant, the joystick
and the temperature range (Level/Range) or the upper and lower limits (Max/Min) and the values can be
input numerically as well. In this, the respective joystick and button functions are displayed to the left of
the thermal image instead of the menu after opening the function. The respective input dialog for
numerical input is displayed in the center of the field of view:
36
Fig. 41 Menu selection for
manually setting
maximum/minimum
can be used in order to set the temperature level
© InfraTec GmbH 2016
Thermography System VarioCAM
9. Introduction
Fig. 42 Menu selection for
numerical temperature
input
