9. Introduction
9.2.6

Menu item "Format SD"

If all data saved to the SDHC-card is to be deleted, this can be done by formatting the card. The
corresponding function must be started in the "Format SD" menu item.

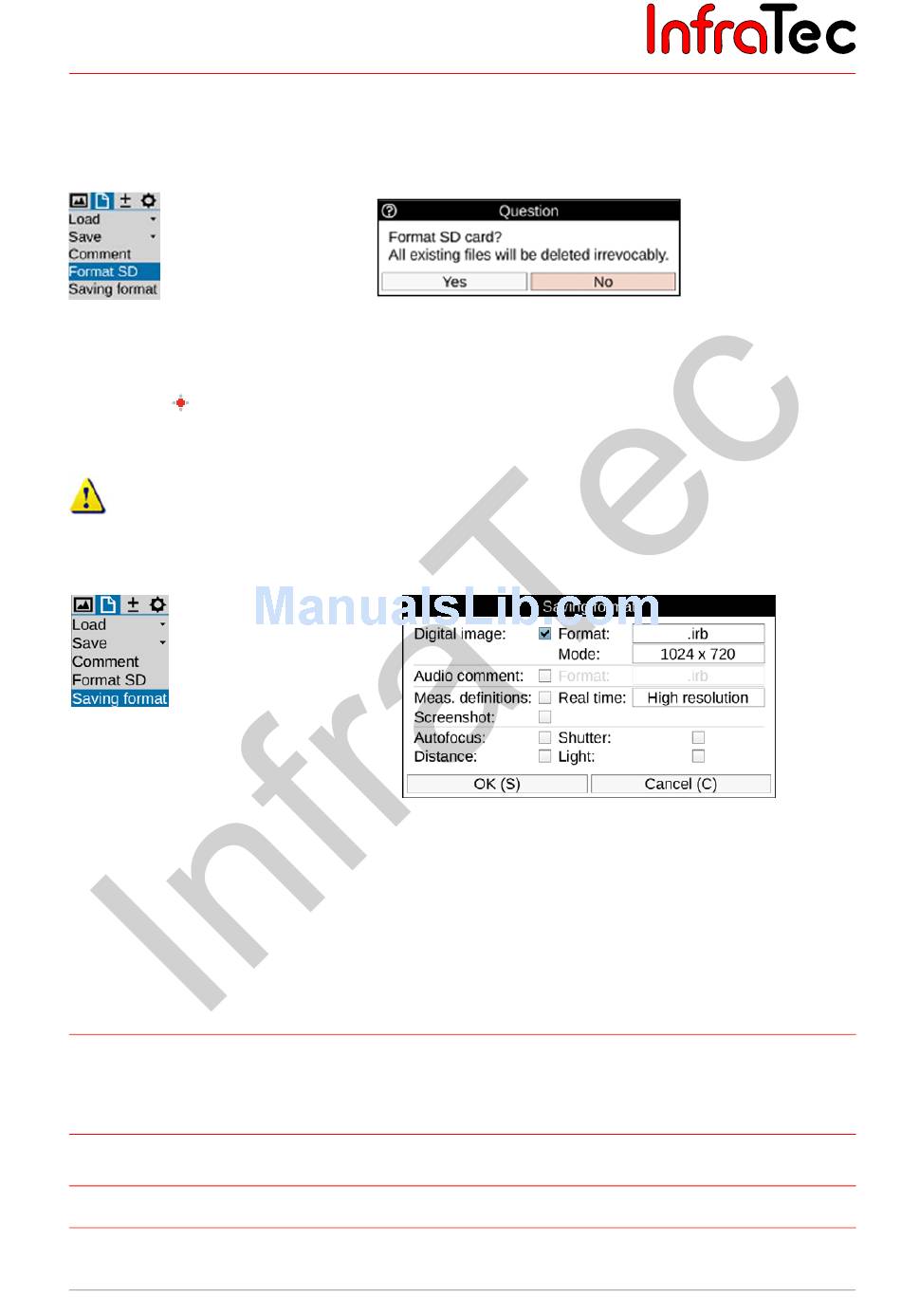

Fig. 104 Menu "Format SD"
After having clicked the "Format SD" item, a dialogue is displayed that must be confirmed by pushing the
Enter button in order to delete all data from the card and to re-format the card. After the card is
formatted, all data is deleted irrevocably.
This process cannot be undone!
9.2.7

Menu item "Saving format"

Fig. 106 Menu item "Saving format"
Using the "Saving format" menu item, data to be saved in addition to the thermal image and its format can
be selected, and furthermore settings to be made in connection with the process of saving can also be
selected. For this, a dialogue is shown (see also Fig. 107).
The following table shows the selectable settings:
Selection
Digital image Saving the visual image
synchronously with the thermal
Audio comment Saving the audio files
Measurement Saving measurement definitions
definitions
Screenshot Graphics file screenshot
User Manual
® HD
Fig. 105 Dialogue for confirming the formatting of the SD-card
Fig. 107 Setting the saving format
© InfraTec GmbH 2016
Format
.irb thermal image and photo in one file
.jpg photo in separate file
(1.024 x 720)
8 MP (3.264 x 2.448)
.irb thermal image and audio in one file
.wav audio in separate file
.irb (no selection possible)
.png (no selection possible)
