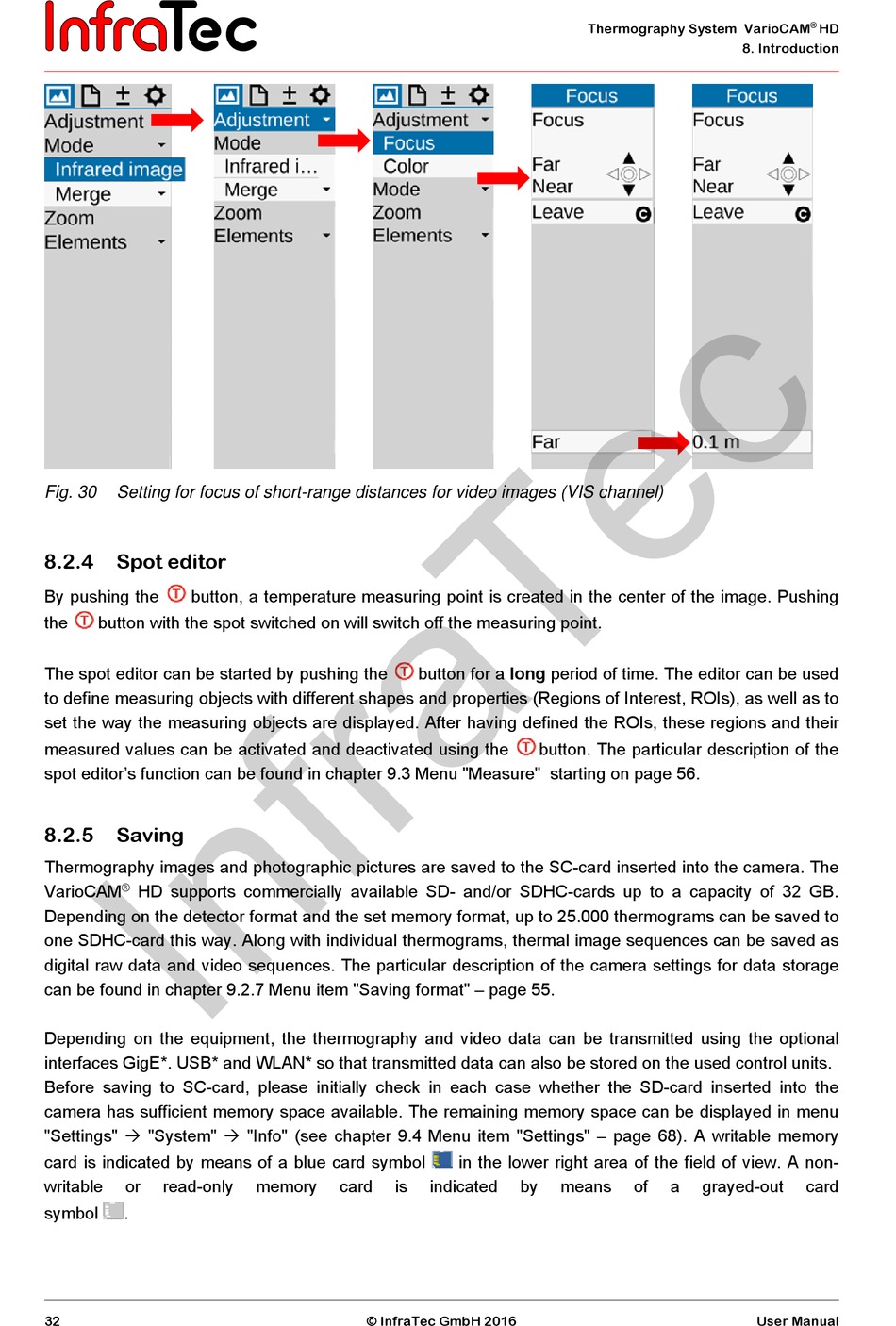

Fig. 30 Setting for focus of short-range distances for video images (VIS channel)
8.2.4

Spot editor

By pushing the button, a temperature measuring point is created in the center of the image. Pushing
the button with the spot switched on will switch off the measuring point.
The spot editor can be started by pushing the
to define measuring objects with different shapes and properties (Regions of Interest, ROIs), as well as to
set the way the measuring objects are displayed. After having defined the ROIs, these regions and their
measured values can be activated and deactivated using the
spot editor's function can be found in chapter 9.3 Menu "Measure" starting on page 56.
8.2.5

Saving

Thermography images and photographic pictures are saved to the SC-card inserted into the camera. The
®
VarioCAM HD supports commercially available SD- and/or SDHC-cards up to a capacity of 32 GB.
Depending on the detector format and the set memory format, up to 25.000 thermograms can be saved to
one SDHC-card this way. Along with individual thermograms, thermal image sequences can be saved as
digital raw data and video sequences. The particular description of the camera settings for data storage
can be found in chapter 9.2.7 Menu item "Saving format" – page 55.
Depending on the equipment, the thermography and video data can be transmitted using the optional
interfaces GigE*. USB* and WLAN* so that transmitted data can also be stored on the used control units.
Before saving to SC-card, please initially check in each case whether the SD-card inserted into the
camera has sufficient memory space available. The remaining memory space can be displayed in menu
"Settings"  "System"  "Info" (see chapter 9.4 Menu item "Settings" – page 68). A writable memory
card is indicated by means of a blue card symbol
writable or read-only
symbol .
32
button for a long period of time. The editor can be used
memory card is
© InfraTec GmbH 2016
Thermography System VarioCAM
button. The particular description of the
in the lower right area of the field of view. A non-
indicated by means
8. Introduction
of a grayed-out
User Manual
® HD
card
