Menu "File"

Those VarioCAM ® HD functions that can be used to load thermograms and photos, to make settings
regarding contents and format individual images and image sequences to be saved are summarised in
the "File" menu.
9.2.1 Directory structure of the VarioCAM
The directory names are set in the submenu „Directory":

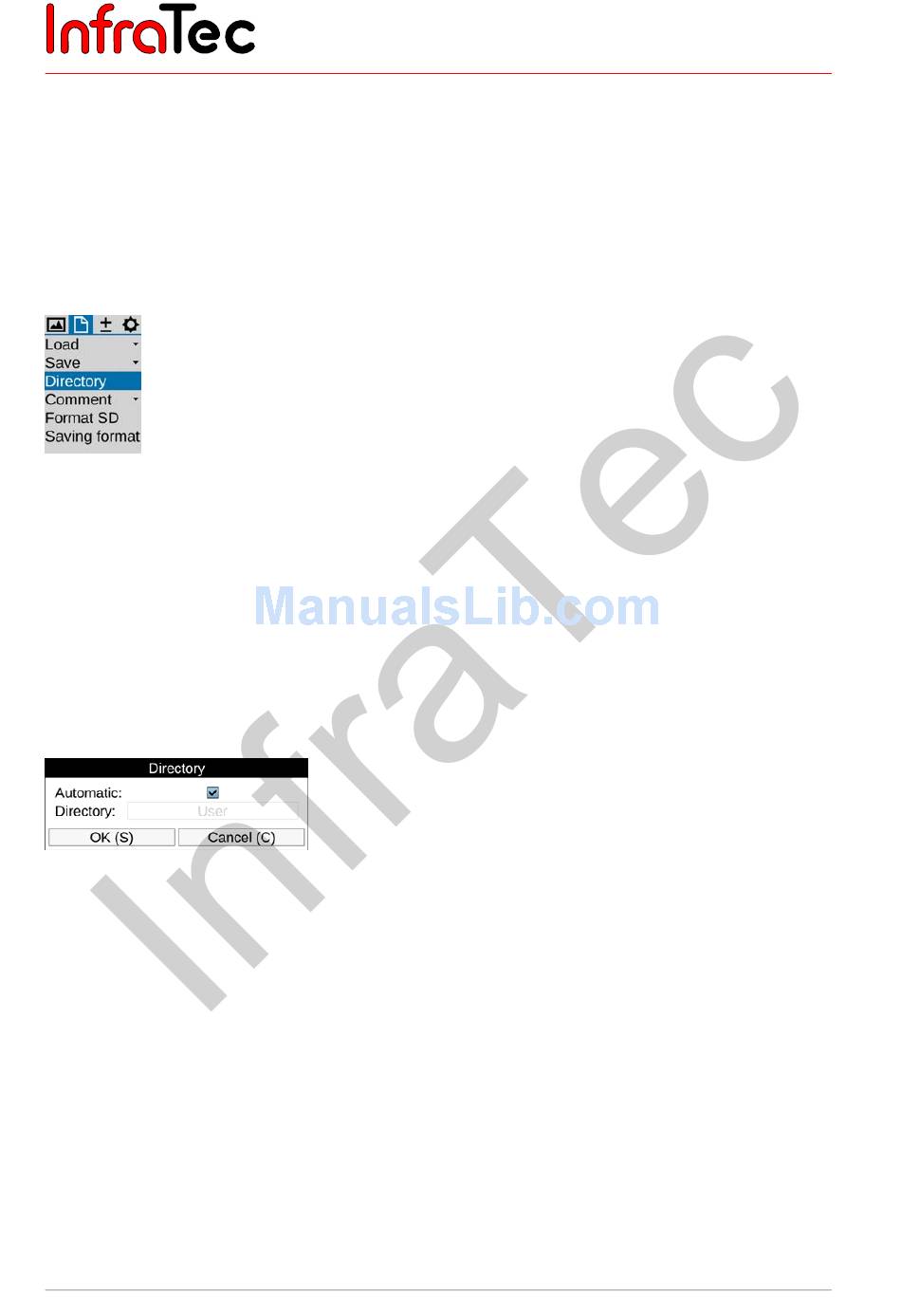

Fig 79 Menu "Directory"
Files are always stored in a subdirectory. The definition of individual subdirectory names depends on the
setting made in the submenu "Directory". The maximum number of files to be stored in the directory is
always limited to 100, in order to avoid having to search tediously within long lists and to ensure quickly
finding the desired files, even with large amounts of data.

9.2.1.1 Automatic directory structure (default setting)

With each data storage on the SDHC card the VarioCAM
whose names are automatically generated. In the settings directory "Automatic", the file and directory
names cannot be specified by the user.
Fig. 80 Automatic directory structure
The name of the subdirectory is generated from the current data – always two letters for year, month and
day as well as two letters for continuous identification – for example, on 22.06.2012 the first directory
would be named 120622AA. In the directory the files are numbered consecutively, starting from 00 up to
99. The file name is composed of the hull name – always two letters for each directory name + month +
day, for example. AA06220 continuously until number AA062299.Within one year, in this way each file
can always be assigned to the associated directory. If a subdirectory is completely filled (e.g. file
AA062299.irb) the next file is created in directory 120622AB with the file name AB06220. The directory
name JJMMTTAZ is followed by directory JJMMTTBA, then JJMMTTBB, JJMMTTBC ... JJMMTTBZ etc.
The file names are numbered consecutively starting with 00 to 99 and do not contain any year
identification in contrast to the directory. However, the directories are numbered with the year, month
and day from AA to ZZ. The maximum number of files cannot exceed 26 x 26 x 100 = 67.600 files in 676
automatically generated directories per day.
