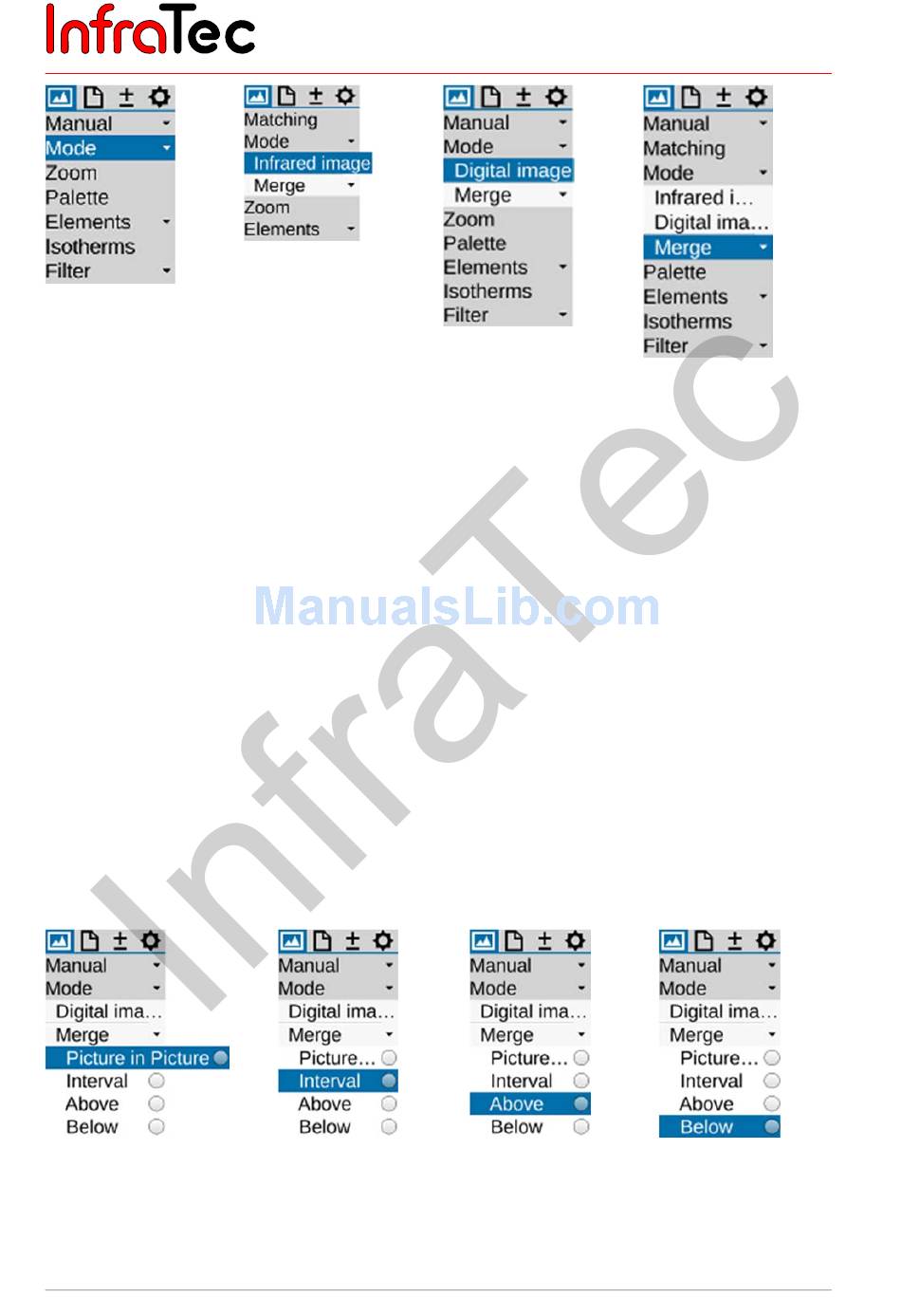

Fig.46 Menu "Mode"
not dropped
down
Infrared image mode
In the Infrared image mode, the thermal image is shown in false colour representation. Depending on the
equipment, the live image displays (1.024 x 768) or (640 x 480) IR pixels with the digital zoom switched
off. While saving, the geometric resolution can be increased to (2.048 x 1.536) and/or (1.280 x 960) IR
pixels by means of the optomechanic MicroScan functions Resolution Enhancement* (RE) or Dynamic
Resolution Enhancement* (DRE). These modes* must be activated in the "Settings menu" using the
"Extras" menu item.
Digital image mode
In the Digital image mode, the camera-internal digital photo channel is operated in video mode and
displayed with a geometric resolution of (1.024 x 720) pixels. The option of saving photos with the
available pixel resolution of (3.264 x 2.448) pixels (8 megapixels) is set in the "File" menu using the menu
item "Saving format", see chapter 9.2.7 Menu item "Saving format" – page 55.
Merge mode
In the Merge mode, 4 different modes can be selected. In order to select these options, the Merge sub-
menu must be dropped down:
Fig.50 Merge sub-menu –
Picture in Picture
38
Fig.47 Menu "Mode"
– Infrared
image mode
Fig.51 Merge sub-
menu –
Interval
© InfraTec GmbH 2016
Thermography System VarioCAM
Fig.48 Menu "Mode"
– Digital
image mode
Fig.52 Merge sub-
menu –
Above
® HD
9. Introduction
Fig.49 Menu "Mode"
– Merge mode
Fig.53 Merge sub-
menu –
Below
