9.3.2.5 Polygon PG*

The VarioCAM ® HD supports polygon planes with a maximum of 11 points, the position of which can be
defined freely. After having defined the position of a (first) point (Fig. 129), a new point is created every
time the Enter button is pressed longer (Fig. 130. Fig. 133). whereby this new point can be moved to its
target position. Once more than one point is created, the Enter button can be pressed shortly in order to
toggle between the points in a circulating manner, the position of which can still be changed in this case.
When the third point is created, this third point is connected to the starting point defining a plane (Fig.
132). The Enter button must be pressed longer in order to create the next point starting from the active
point in a clockwise direction, which can then be moved with the joystick and saved by pressing Enter.
When all points are highlighted, the polygon plane can be moved without any changes to its shape (Fig.
134).

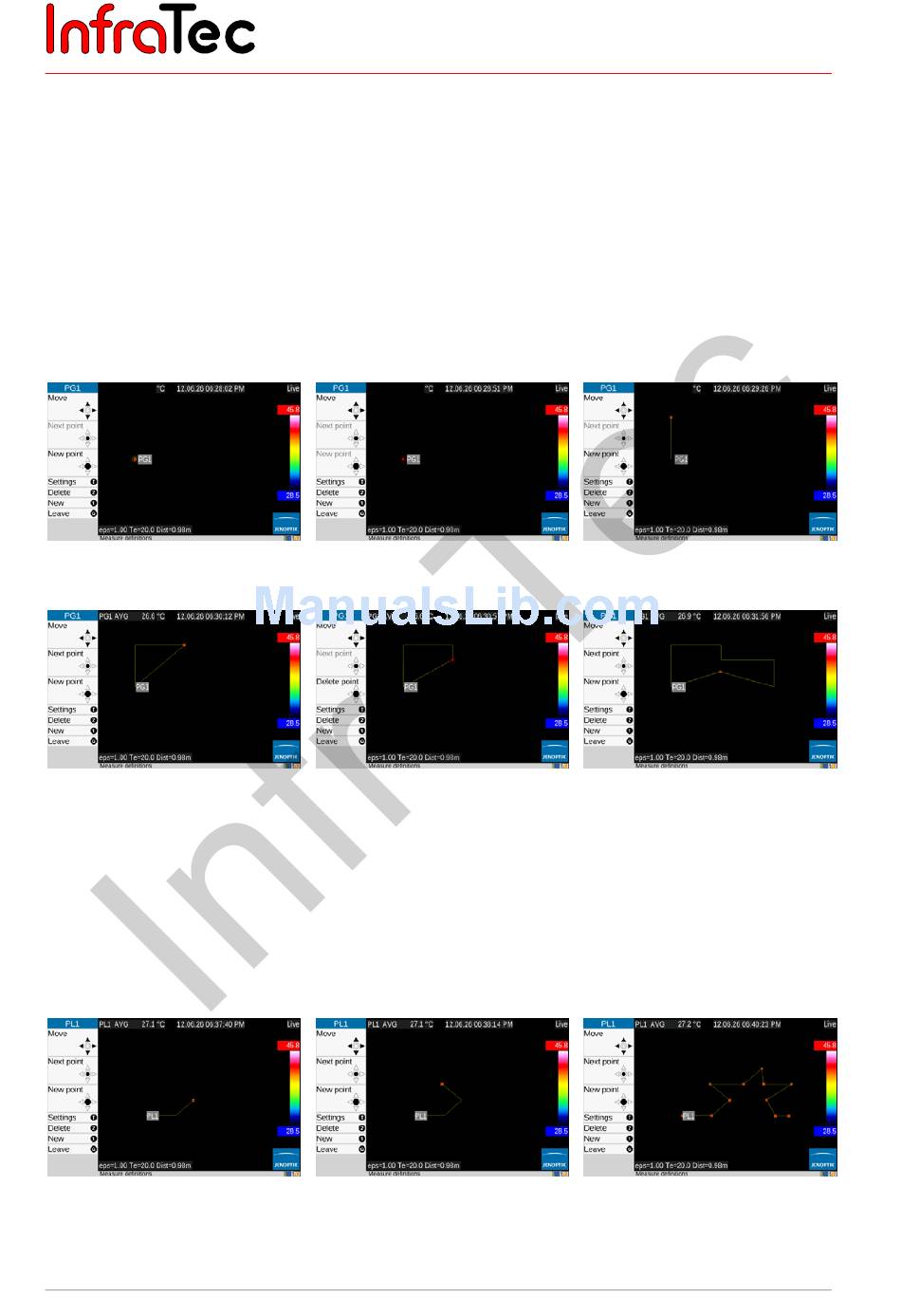

Fig. 129 Polygon – moving the
starting point
Fig. 132 Polygon – moving the
rd
3 point
Individual points can be deleted by activating them with the cursor and pressing Enter for a longer time.
The activation is indicated by a red circle around the respective point (fig. 116).

9.3.2.6 Polyline PL*

In analoguey to the polygon (plane), a line can also be created with a maximum of 11 support points:
Fig. 135 Polyline – moving the 3
point
60
Fig. 130 Polygon – creating a
new point
Fig. 133 Polygon – creating a
new point
rd
Fig. 136 Polyline – 5t
created. but not moved
yet
© InfraTec GmbH 2016
Thermography System VarioCAM
Fig. 131 Polygon – moving a new
Fig. 134 Polygon – moving the
h
point Fig. 137 Polyline – moving all 11
® HD
9. Introduction
point
entire plane
points
