Autofocus Automatic focusing is performed before saving.
Compensation NUC (Non Uniformity Correction) is performed before saving.
Light The photo light is switched on before saving.
9.3

Menu "Measure"

The menu "Measure" summarises all temperature measurement functions. The structure of the menu is
illustrated by Fig. 108. The individual menu items are described in more detail below.
In order that measured values are displayed, the corresponding setting in the "Image elements" menu
must be activated (see chapter 9.1.5 Menu item "Elements" – page 43).
9.3.1

Menu items "Maximum" and "Minimum"

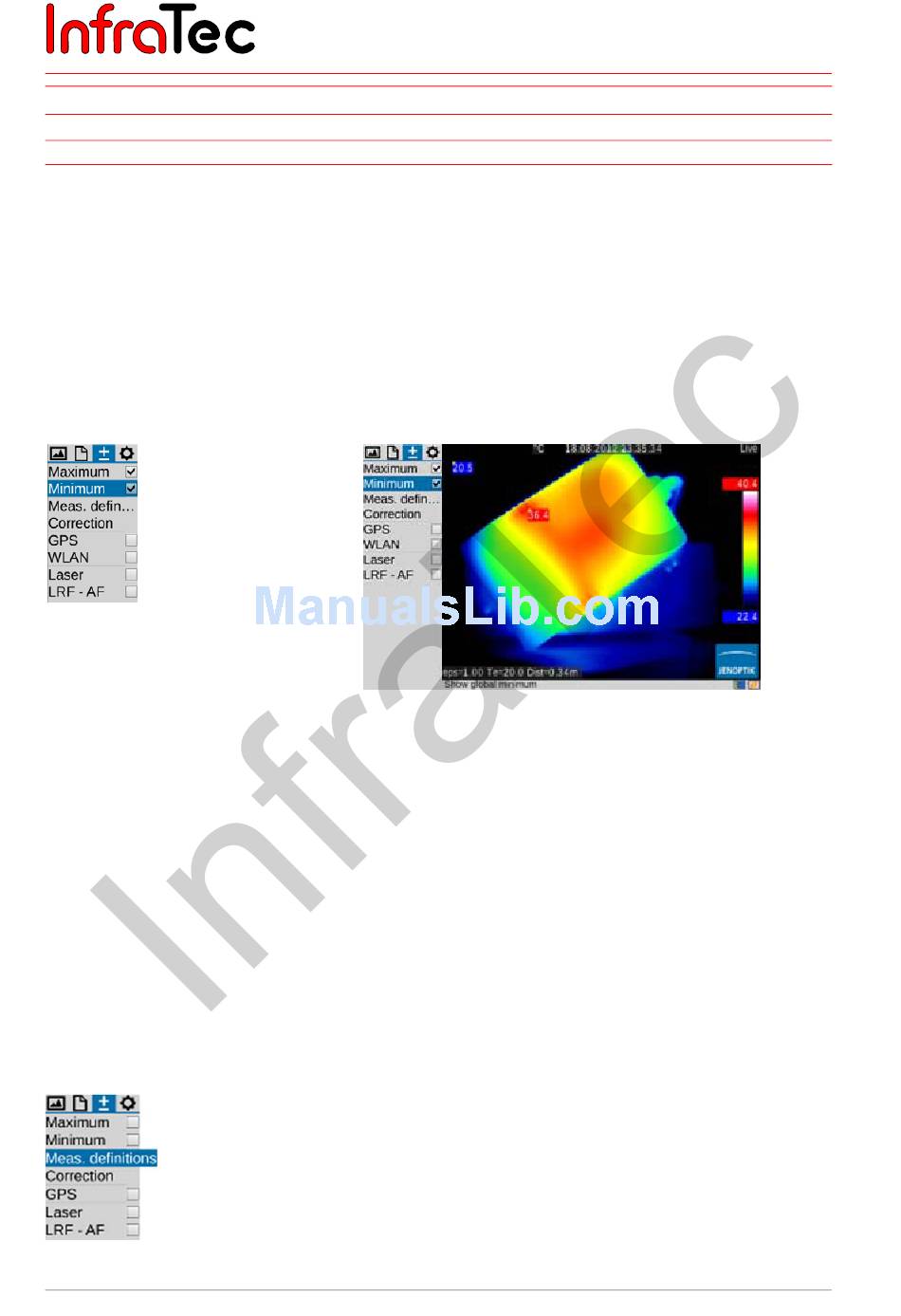

Fig. 108 Menu "Measure" – "Maximum"
and "Minimum"
It is possible to display the (global) temperature maximum and/or temperature minimum within the
thermal image by selecting the options "Maximum" and "Minimum". Position and value are consistently
updated within the image. Regardless of the palette selected for false colour representation, the
maximum is red and the minimum is blue.
The maximum and minimum values are only displayed within the central image area where no other
system indications are displayed. These indications are not contained in the thermal images saved
digitally, but can be saved when saving the display as screenshot. With the help of the IRBIS
software, it is possible to show the maximum and minimum values in the entire image area in the event of
subsequent editing of the saved thermal images.
9.3.2

Menu item "Measurement definitions"

Fig. 110 Menu item "Measurement definitions"
56
Fig. 109 Thermogram with displayed temperature maximum
and temperature minimum
