Thermography System VarioCAM
6. Introduction
6

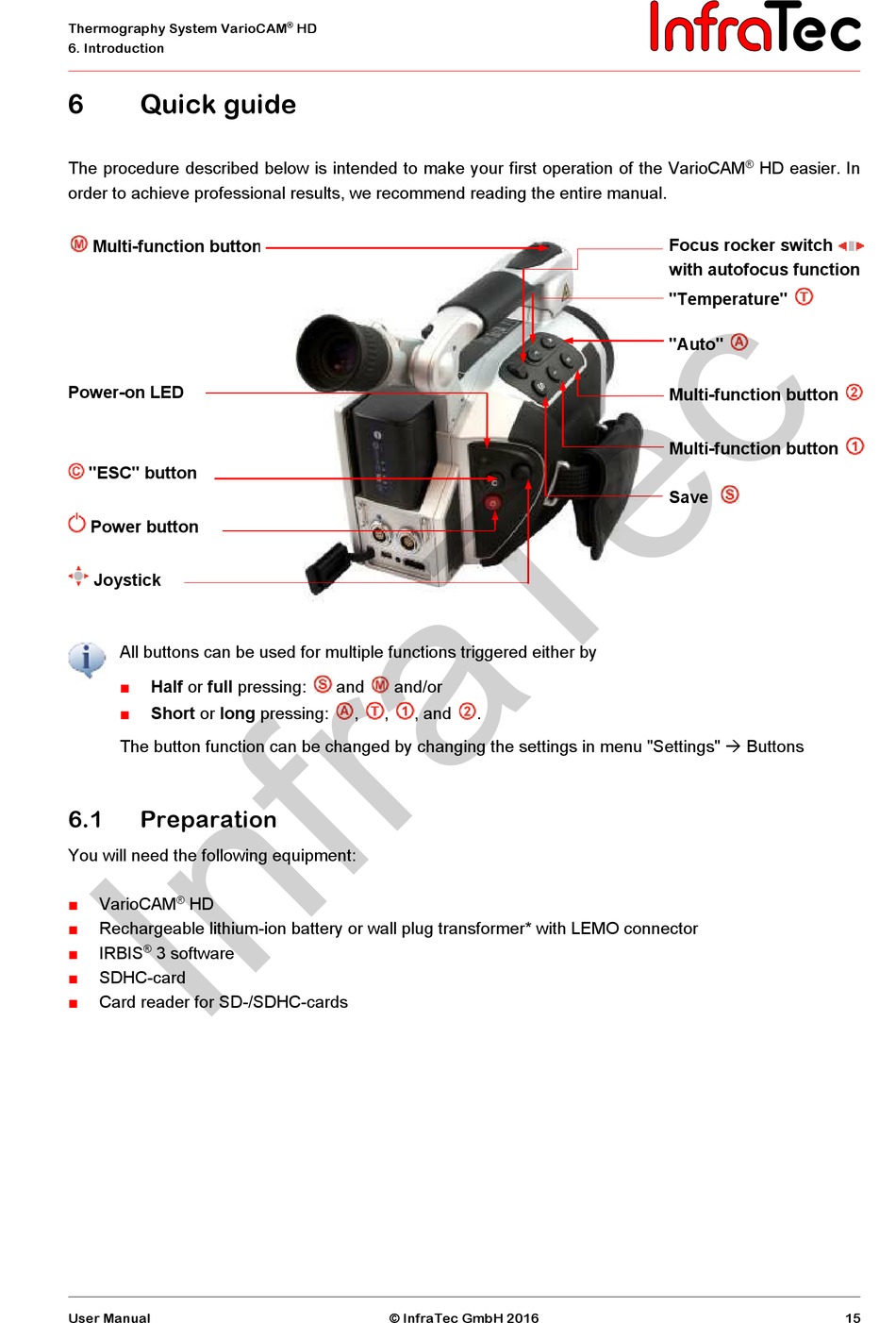

Quick guide

The procedure described below is intended to make your first operation of the VarioCAM
order to achieve professional results, we recommend reading the entire manual.
Multi-function button
Power-on LED
"ESC" button
Power button
Joystick
All buttons can be used for multiple functions triggered either by
■ Half or full pressing:
■ Short or long pressing:
The button function can be changed by changing the settings in menu "Settings"  Buttons
6.1

Preparation

You will need the following equipment:
®
■ VarioCAM HD
■ Rechargeable lithium-ion battery or wall plug transformer* with LEMO connector
®
■ IRBIS 3 software
■ SDHC-card
■ Card reader for SD-/SDHC-cards
User Manual
® HD
and and/or
, , , and
© InfraTec GmbH 2016
.
® HD easier. In
Focus rocker switch
with autofocus function
"Temperature"
"Auto"
Multi-function button
Multi-function button
Save
15
