9.2.2

Creating the control data record

Required steps
To create a control data record for the configuration control, follow these steps:
1. Create a PLC data type that contains the structure of the control data record.
You can find the structure of the control data record:
– for the S7-1500 automation system in section Control data record for the S7-1500
– for the ET 200MP distributed I/O system in Control data record for the ET 200MP
Figure 9-3
2. Create a global data block.
Automation system
System Manual, 09/2016, A5E03461182-AD
Automation System (Page 150).
distributed I/O system (Page 151).

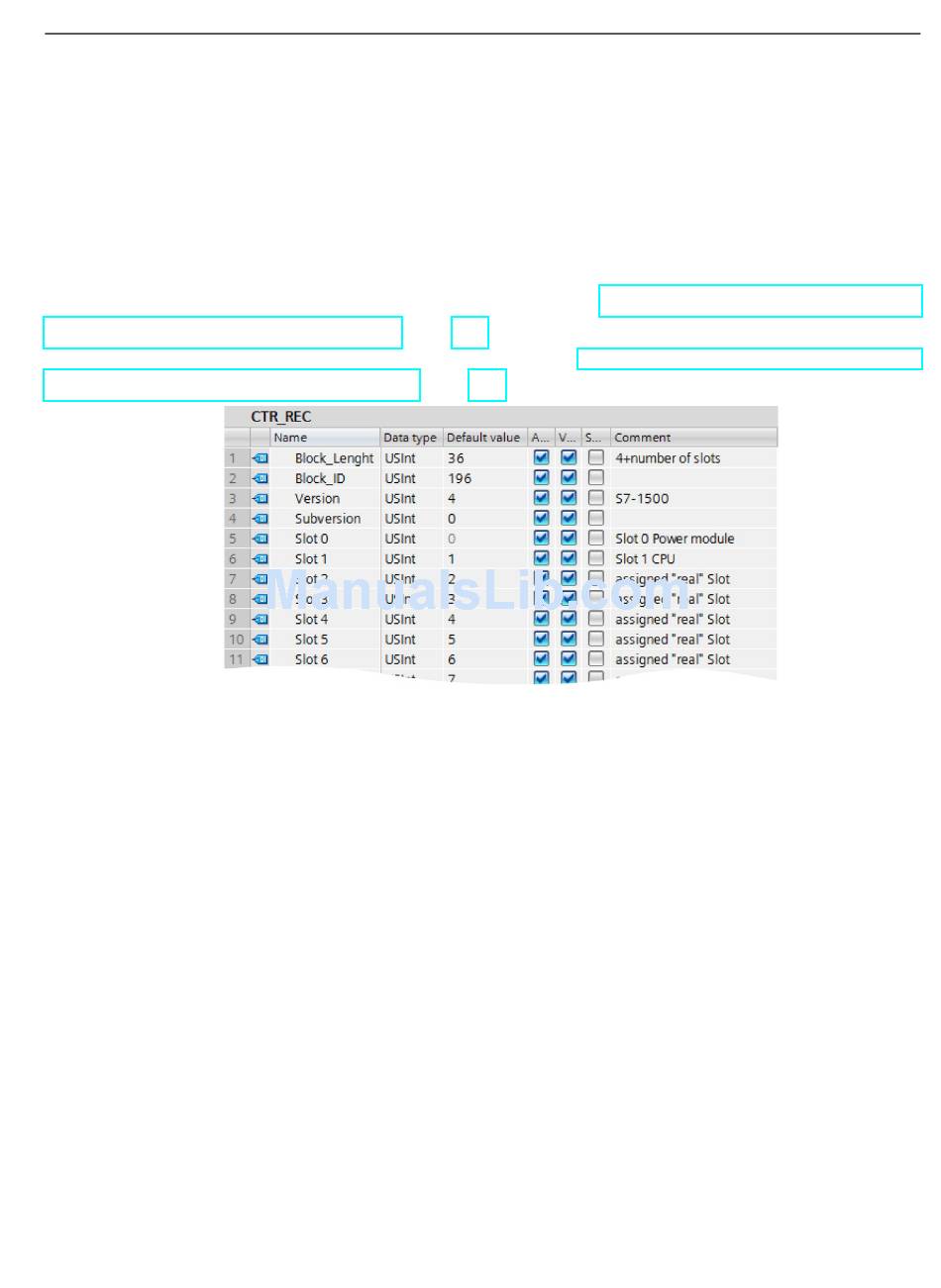

Creating control data record 196 using an S7-1500 CPU as an example
