Magnum 6KL Managed Edge Switch Installation and User Guide
3.6

Connecting the Console Terminal to Magnum 6KL

Use a (RJ45) "null modem" cable to connect the Magnum 6KL Console Port
(the RJ45 Console port on the 6KL Switch) to your PC, so that your PC
becomes the 6KL Console Terminal.
Note: The RJ45 cable is not included with the 6KL package.
Note: For a detailed description of Managed Network Software (MNS-6K) and
Magnum 6KL Switch configuration for Network Management, please refer to
Magnum 6K Software Manual available on GarrettCom's FTP site.
Also available on GCI website at:
http://www.garrettcom.com/techsupport/sw_downloads.htm
3.6.1

RJ45 Console port (Serial port) pin assignments

Pin
1
2
3
4
5
6
7
8
The above provided information enables a managed station (a PC or Console terminal) to
connect directly to the switch.
Note: To use the Console port to configure the managed switch, a serial (Null-modem)
male to male cable is required to communicate properly. The Null-Modem (RJ45) cable
is optional and can be ordered from the factory, along with the unit as-
CONSOLE-CBLQD for serial port
CONSOLE-CBLQU for USB port
www GarrettCom com . .

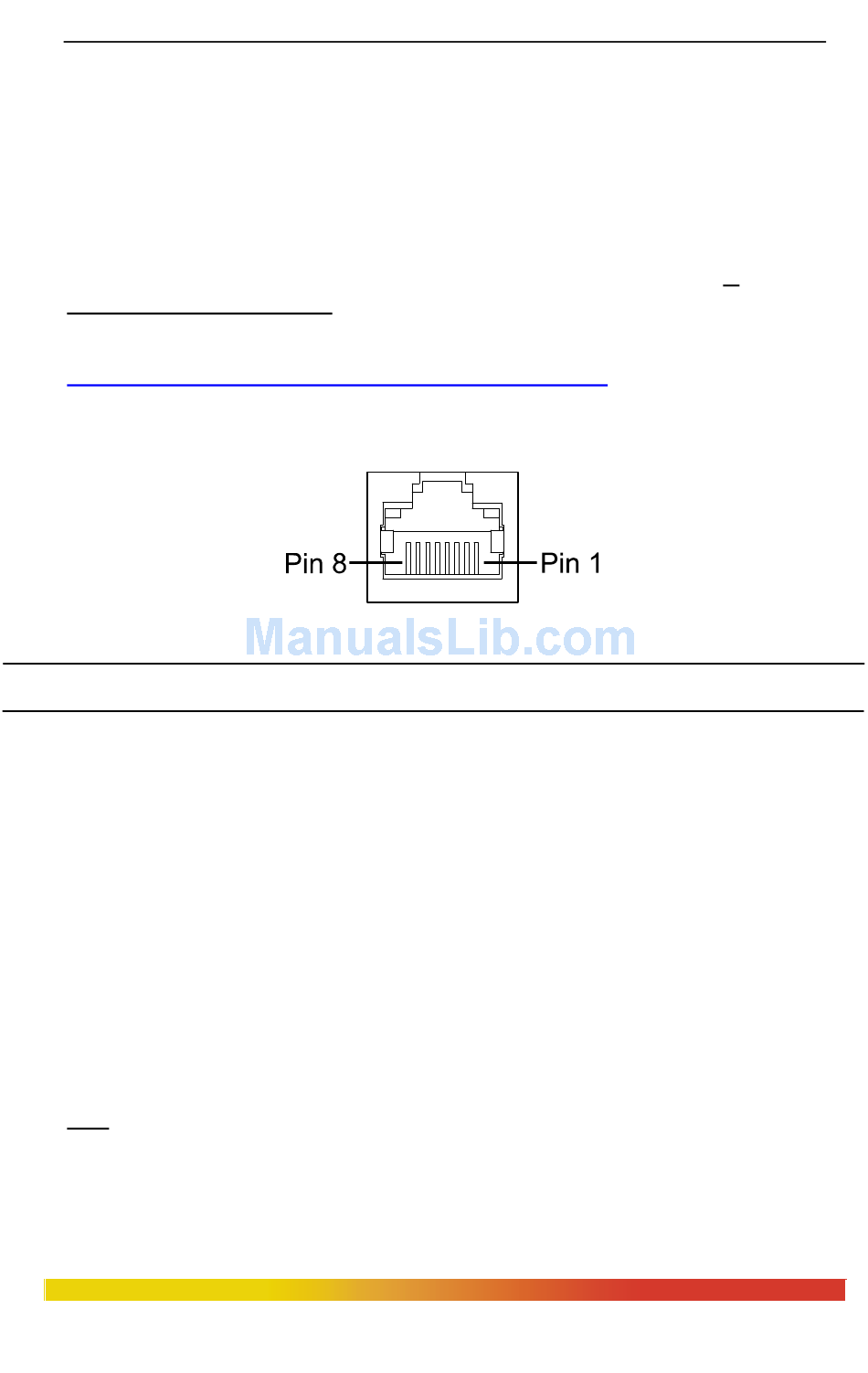

RJ45 (6KL Console port connector)
Signal
RTS
open
TXD
GND
GND
RXD
open
CTS
26
Description
Request to Send
not used
Transmit Data (output)
Ground
Ground
Receive Data (input)
not used
Clear to Send
