A/V Config And Fm Radio Presets - CYBEX 525C Owner's Manual

To reset setup options to default values
THE INFORM A TION CON T AINED IN THIS DR A WING IS THE SOLE PROPE R T Y OF CYBEX.
AN Y REPRODUCTION IN P A R T OR WHOLE WITHOUT
THE WRITTEN PERMISSION OF CYBEX IS PROHIBITED.
1. Press the SCAN
"RESET" and "[dEFA] [ULtS] [? ]".
To exit without resetting, press the ENTER
2. Press the SCAN
twice and return to setup mode.
Exit Setup Mode.
Press the Stop key to exit Setup options.

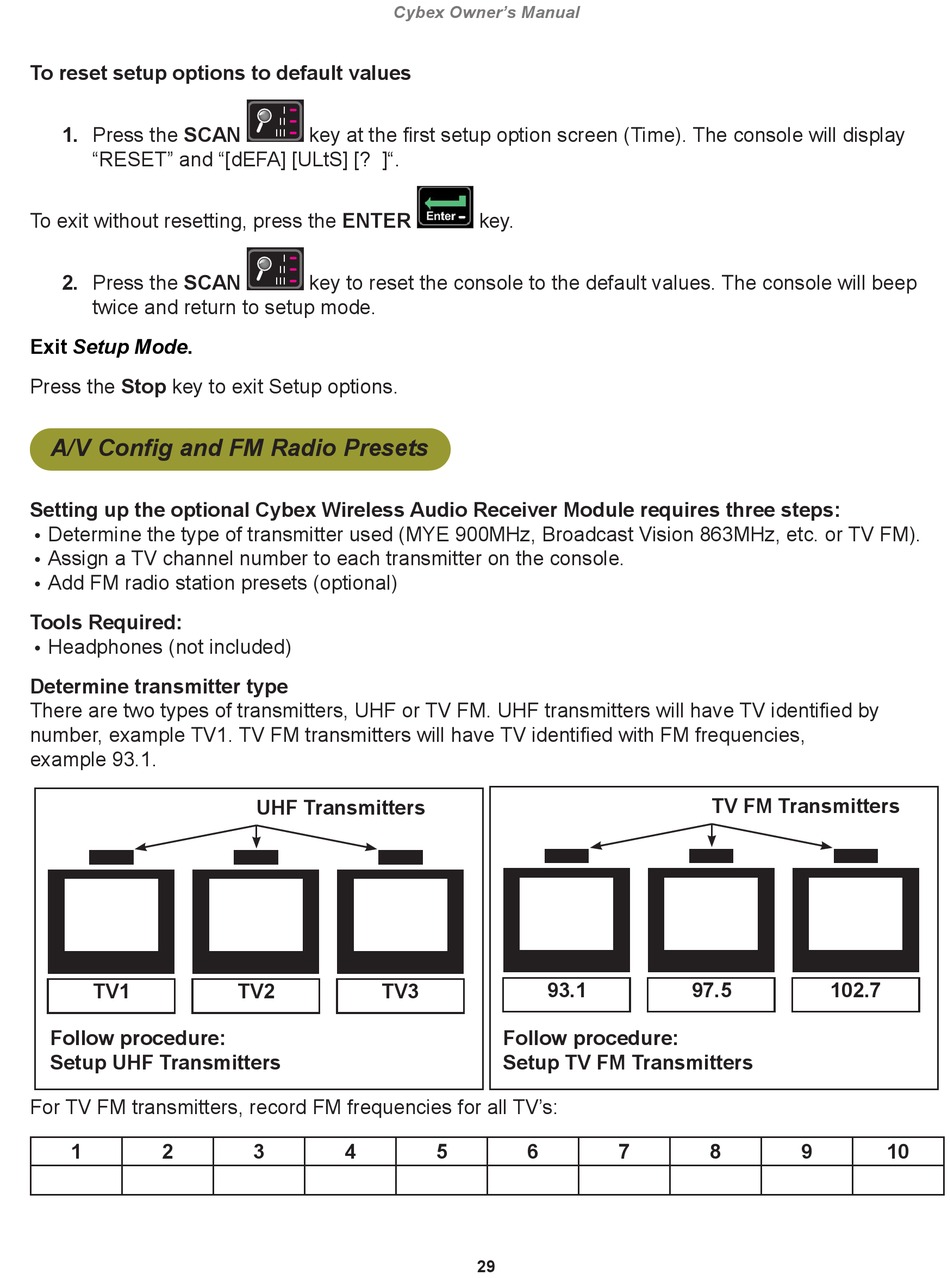

A/V Config and FM Radio Presets

Setting up the optional Cybex Wireless Audio Receiver Module requires three steps:
Determine the type of transmitter used (MYE 900MHz, Broadcast Vision 863MHz, etc. or TV FM).
•
Assign a TV channel number to each transmitter on the console.
•
Add FM radio station presets (optional)
•
Tools Required:
Headphones (not included)
•
Determine transmitter type
There are two types of transmitters, UHF or TV FM. UHF transmitters will have TV identified by
number, example TV1. TV FM transmitters will have TV identified with FM frequencies,
example 93.1.
TV1
Follow procedure:
Setup UHF Transmitters
For TV FM transmitters, record FM frequencies for all TV's:
1 2
