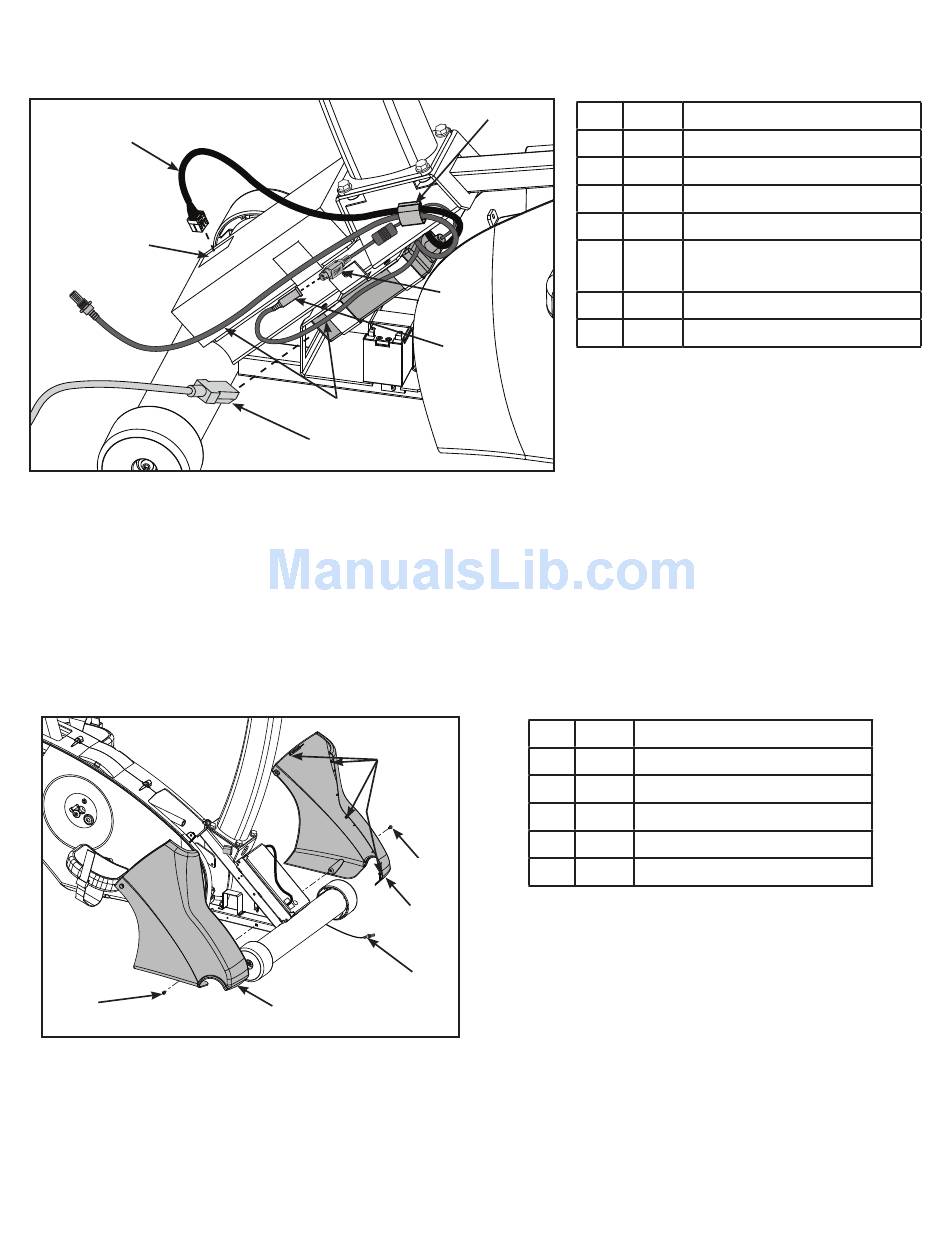

6. Route cables through gray clip on controller.
1
2
7. Plug the display cable into the display cable connector on the lower control board. Ensure the
cable connector is securely fastened.
8. Connect the console cable's DIN connector to the power supply output. Make sure the two
connectors snap firmly together and can not be pulled apart without pulling the sleeve back to
release it.
Install front covers.
1. Install front left cover with one screw using a Phillips screwdriver.
2
2. Route optional A/V cables through front covers to front of unit. Do not pinch or damage the
cables during assembly.
Cybex Owner's Manual
4
5
6
7
1
2
3
4
5
3
Item Description
1
2
3
4
5
6
7
11
Item Description
1
Plastic connectors
2
14
Screw (2)
3
Front left cover
4
A/V cable, optional
5
Front right cover
17
Display cable
Display cable connector
Gray clip
Power supply output
Console cable DIN
connector
A/V cables, optional
Power cord
