CYBEX 525C Owner's Manual page 23

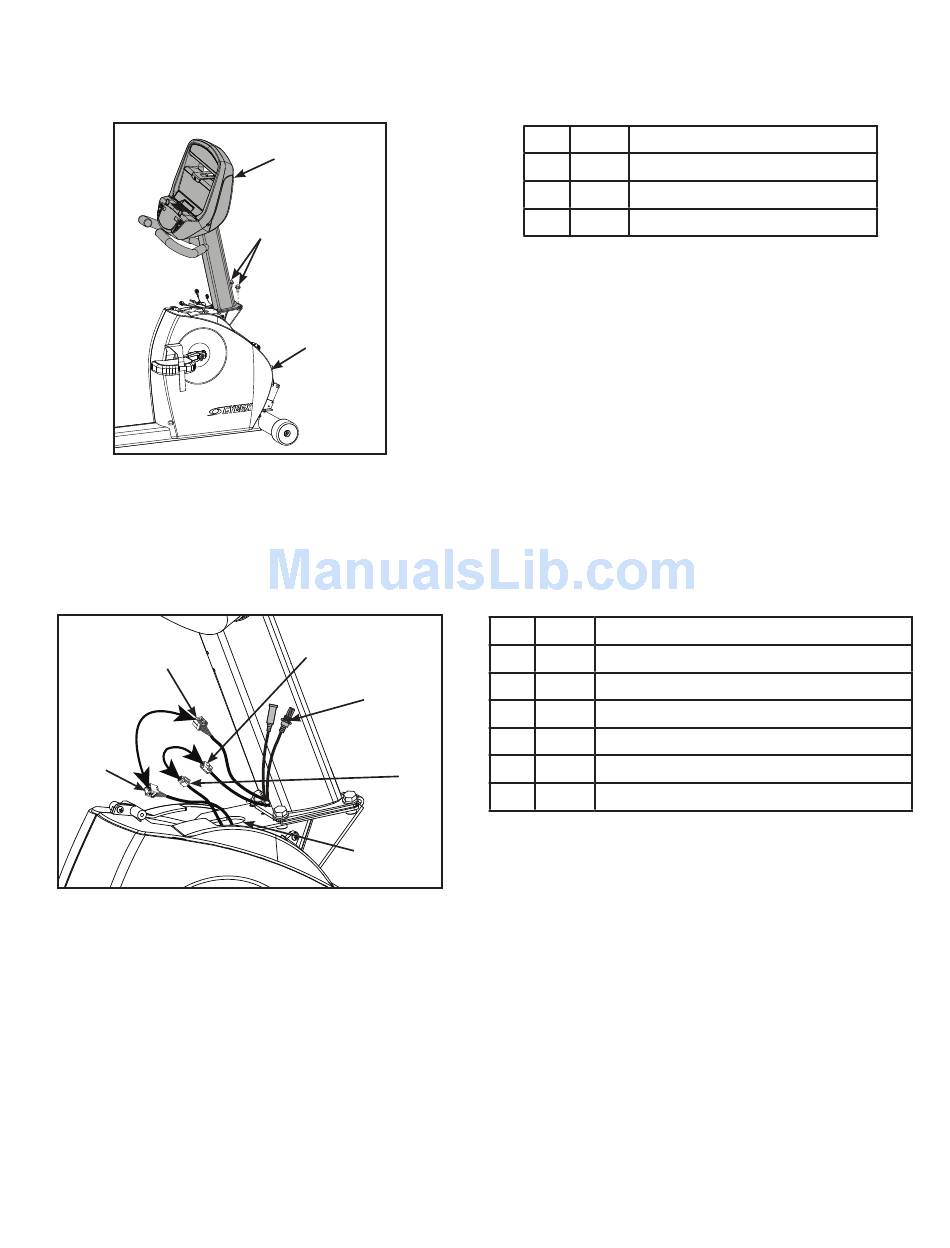

2. Place the console assembly in the correct position on the base assembly by sliding into
position onto the two mounting screws.
3. Hand thread the other two screws.
4. Securely fasten the four screws with a 1/2" socket wrench.
5. Plug the upper display cable connector into the lower display cable connector. Ensure cable
connectors click together and are securely fastened.
1
2
6. Plug the upper heart rate connector into the lower heart rate connector.
7. Tuck each of the cable connectors into the top hole in the frame. Do not pinch or damage the
cables during assembly.
Cybex Owner's Manual
1
2
3
3
4
5
6
Item Description
1 Console assembly
2
13 Screws (2)
3 Base assembly
Item Description
1 Upper display connector
2 Lower display connector
3
Upper heart rate connector
4 A/V cables, optional
5 Lower heart rate connector
6
Top hole in frame
23
