3. Attach crimping terminals to the load cables.
The output terminals have holes for connecting the load cables. Use crimping terminals that
are appropriate for the bolts that you are using.
4. Use the included bolt set to connect the load cables to the output terminals.
Connect the positive cable to the positive output terminal and the negative cable to the
negative output terminal. The orientation of the crimping terminals will vary depending on
the wire diameter of the load cables used.

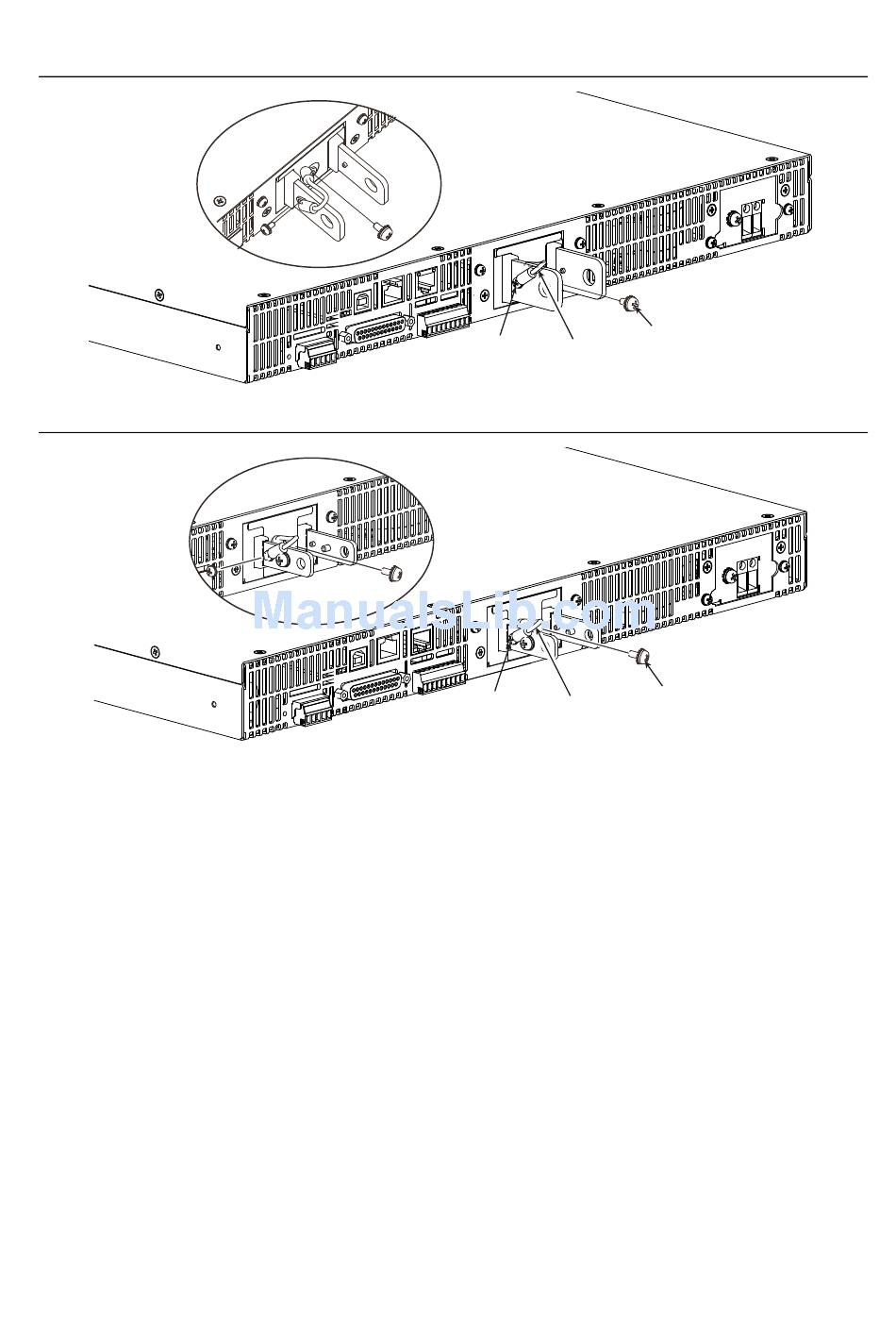

Figure 1-10. RMX-4120/4121/4124/4125
Figure 1-11. RMX-4122/4123/4126/4127
RMX Programmable Power Supplies User Manual
Screw (M3) Chassis
connection wire
Screw (M3)
Chassis
connection wire
Screw (M4)
Screw (M4)
