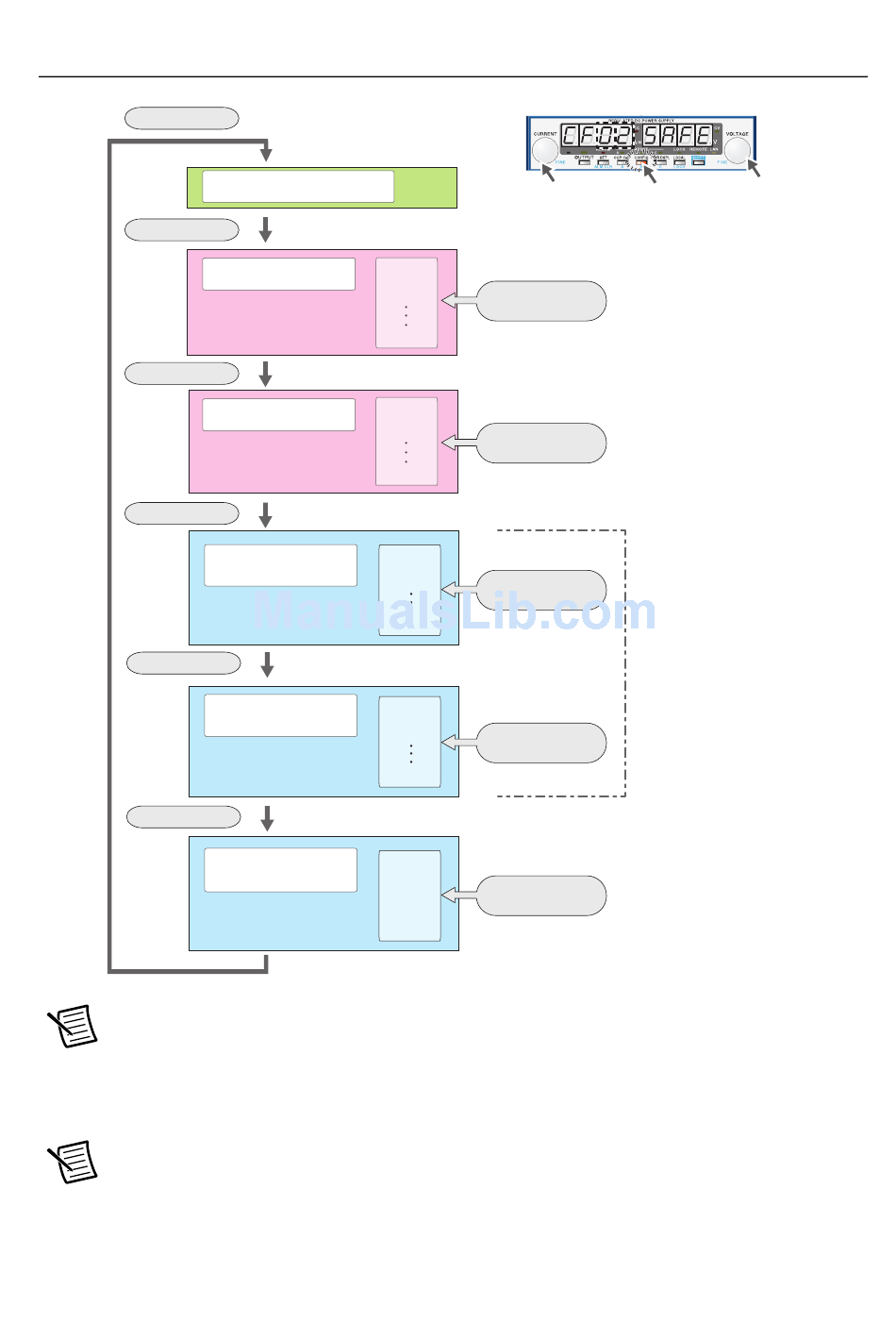

Figure 2-28. Selecting CONFIG Parameters
CONFIG key
Measured value display
CONFIG key
System settings
CONFIG key
Interface settings
CONFIG key
LAN settings
(Display)
CONFIG key
LAN settings
(Parameter)
CONFIG key
USB/RS232C
settings
CF00, and CF40 are used to execute operations. CF30 to CF36, CF50,
Note
and CF51 are read-only parameters used to display the status of the RMX
programmable power supply. You cannot set the values of any of these CONFIG
parameters.
The SET key blinks when you have selected a CONFIG parameter whose
Note
setting you must confirm by pressing SET (CF00, and CF40).
RMX Programmable Power Supplies User Manual
CURRENT knob
Used to select
the parameter
number.
CF00
CF01
CURRENT knob
CF19*
* Displayed only when the RMX series
is being used as a slave unit
CF20
CF21
CURRENT knob
CF25
CF30
CF31
CURRENT knob
CF36
CF40
CF41
CURRENT knob
CF47
CF50
CF51
CURRENT knob
CF52
VOLTAGE knob
CONFIG key
Used to select
Used to select
the value or the
the parameter
parameter to
number.
display.
Displayed only when the
LAN interface is in use
