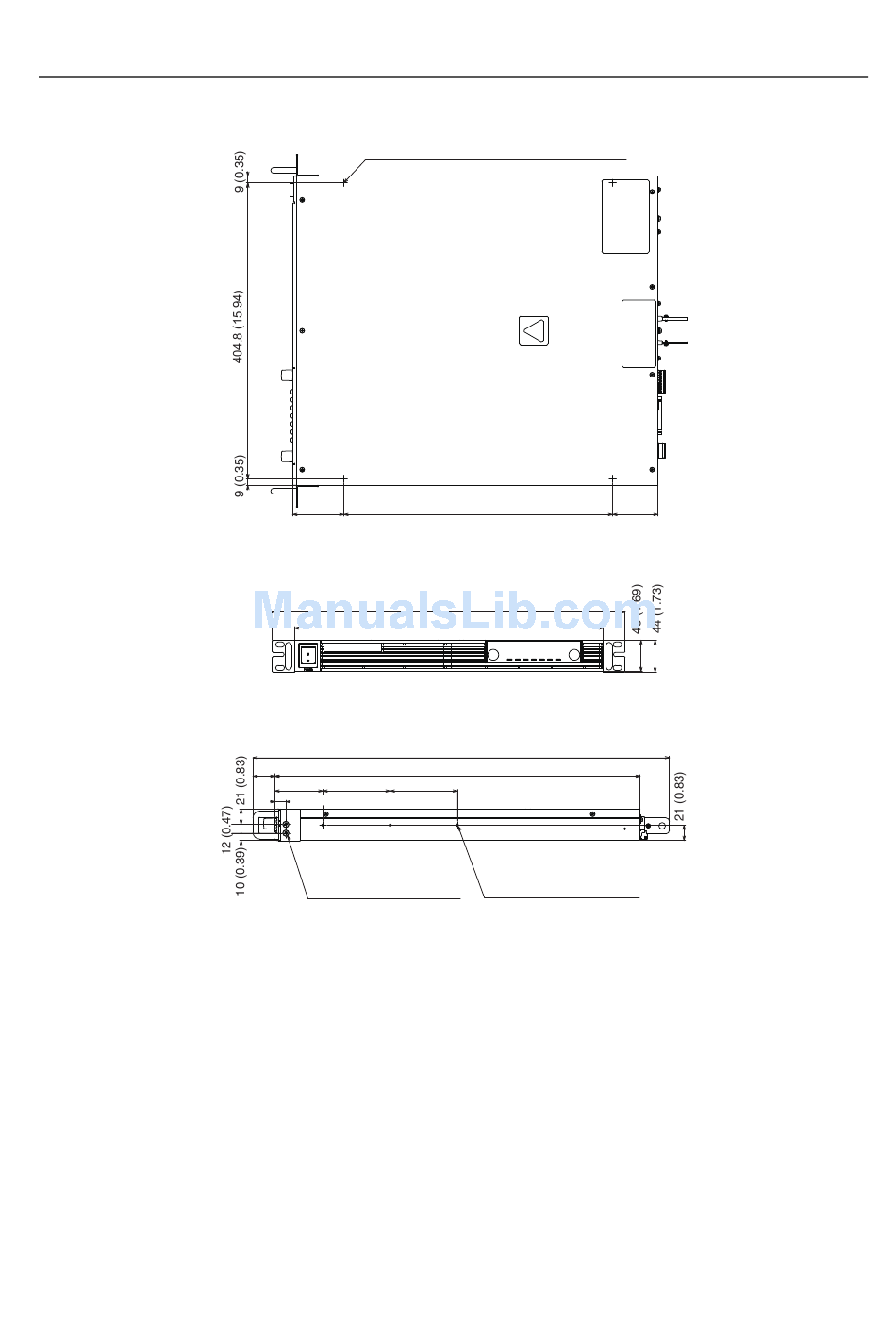

Figure A-1. RMX-4120/4121/4122/4123 Dimensions
M3 screw holes × 4
Max. screw insertion depth: 8 mm (0.31 inches)
70 (2.76)
MAX35 (1.38)
65.8 (2.59)
92 (3.62)
15 (0.59)
M4 screw holes × 4
Max. screw insertion depth:
6 mm (0.31 inches).
RMX Programmable Power Supplies User Manual
368 (14.49)
MAX485 (19.09)
422.8 (16.65)
MAX580 (22.83)
500 (19.69)
92 (3.62)
#10-32 screw holes × 6
Max. screw insertion depth:
8 mm (0.31 inches).
62 (2.44)
© National Instruments | A-11
