Even if you turn the output off or turn the POWER switch off, if the bleeder on/off
setting (CF11) is set to oFF, the voltage that was present when the output was on will
remain at the output terminals. Set the bleeder on/off setting to on before you touch
the sensing terminals.
Regardless of whether local sensing or remote sensing is used, be sure to attach the
sensing terminal cover before turning the POWER switch on.
If the sensing cables come loose, the output voltage across the load may become unstable, and
an excessive voltage may be applied to the load. If an appropriate OVP trip point is set, the OVP
will trip before an excessive voltage is generated.
When you are finished with remote sensing, return to local sensing mode.
Local sensing jumpers
Terminal
-S
-LS
—
+LS
+S
Sensing cable: AWG28 to AWG16
1-18 | ni.com

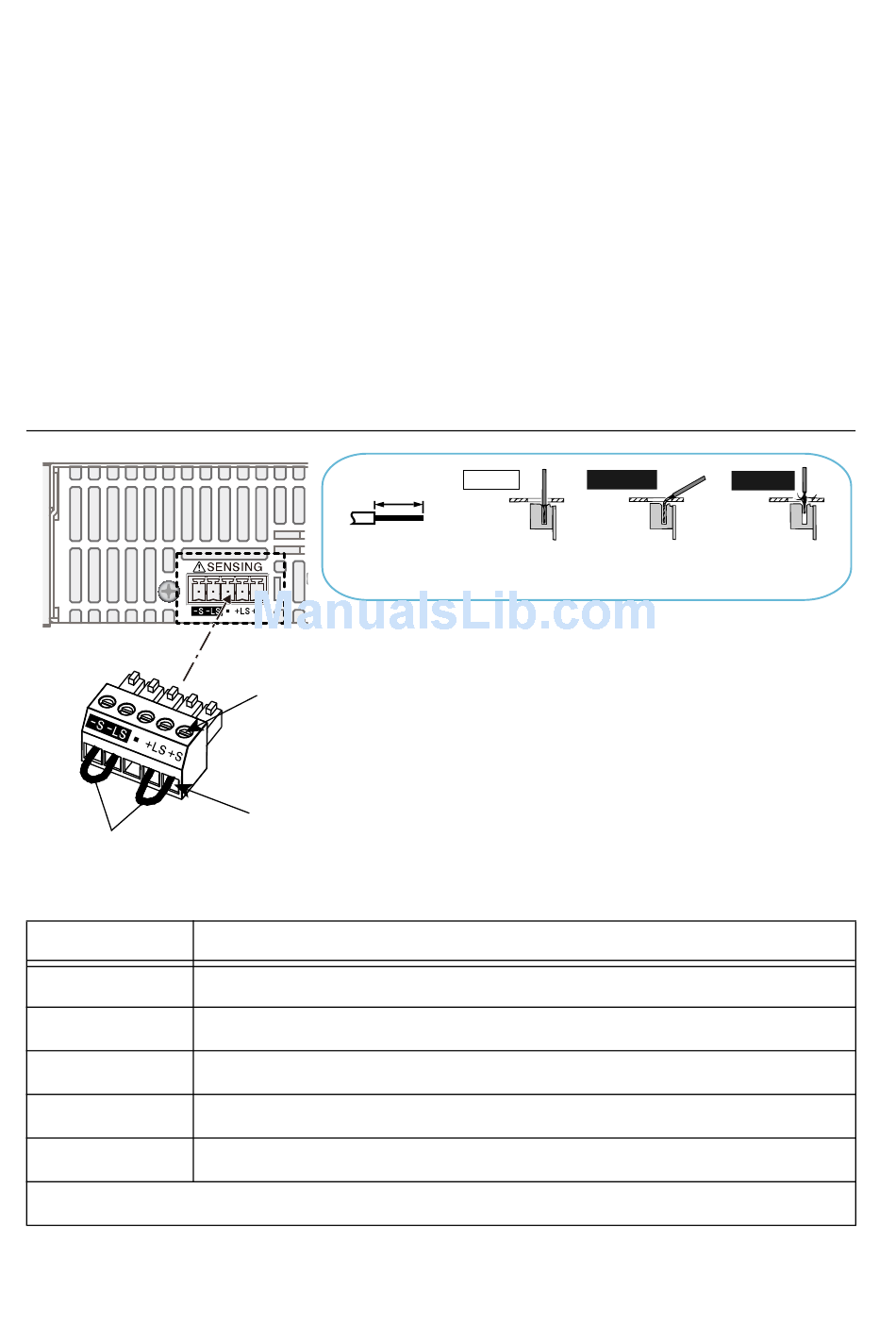

Figure 1-19. Sensing Cable Connections
Strip gauge
7 mm (0.28 inches)
Use this screw to fix the cables
cables in place so that they do
not come loose.
Strip 7 mm (0.28 inches) of the
cable covering, and then insert
the cable here.
Table 1-2. Sensing Terminals and Functions
Negative remote sensing terminal.
Negative local sensing terminal connected to the negative output terminal
Not connected.
Positive local sensing terminal connected to the positive output terminal.
Positive remote sensing terminal.
Correct Incorrect
The wire itself is
in contact with
the chassis.
Function
Incorrect
Wire scraps are
in contact with
the chassis.
