Chapter 1 Installation and Preparation

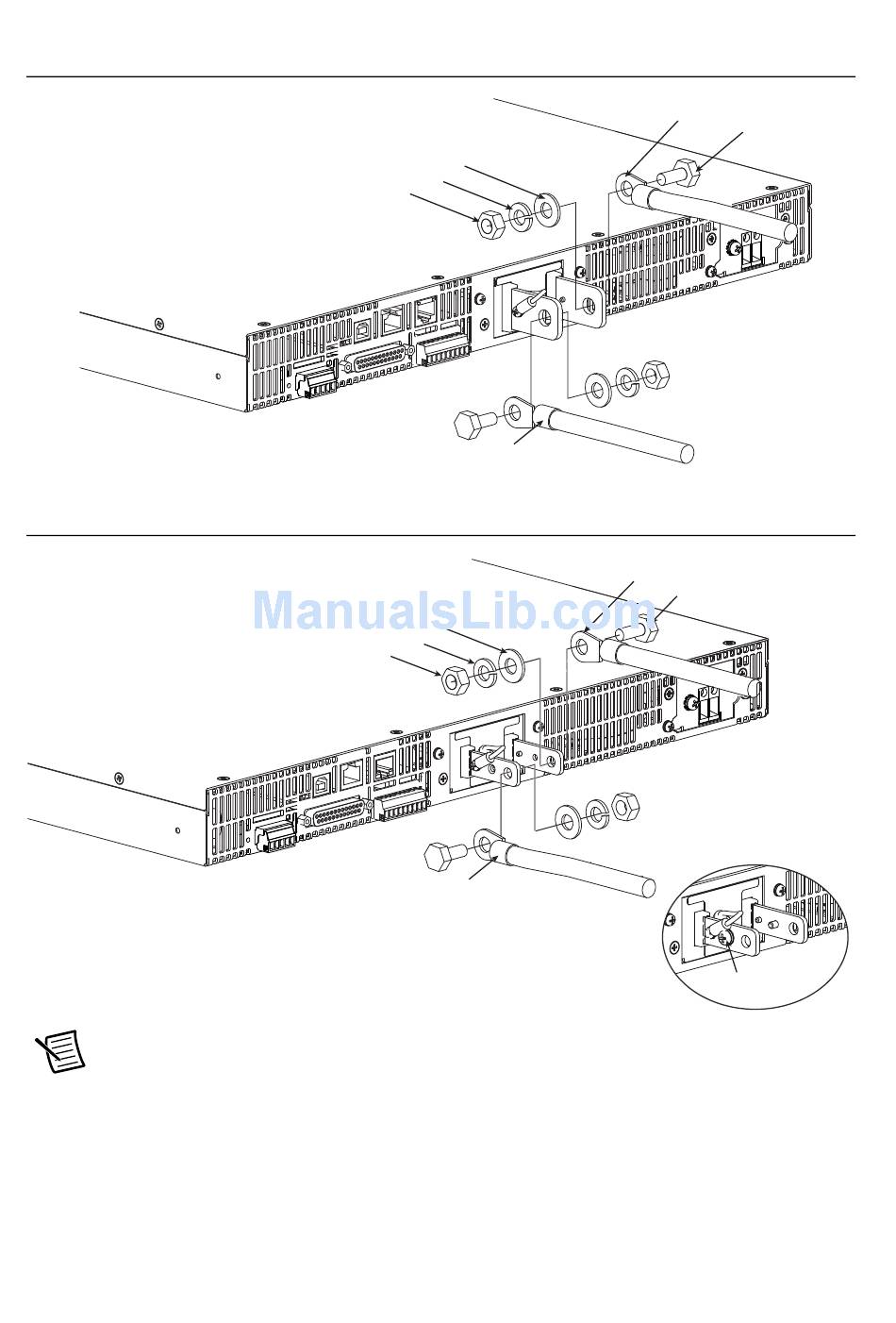

Figure 1-12. Connection Using M8 Bolt Set for RMX-4120/4121/4124/4125
Figure 1-13. Connection Using M5 Bolt Set for RMX-4122/4123/4126/4127
If you do not connect load cables in the correct orientation, you will not be
Note
able to attach the OUTPUT terminal cover.
1-14 | ni.com
Washer
Spring washer
Nut
Attach the cable to the inner side
of the crimping terminal.
Washer
Spring washer
Nut
Attach the cable to the outer side
of the crimping terminal.
Crimping terminal
Crimping terminal
Bolt (M5)
Screw (M4)
Bolt (M8)
