Chapter 1 Installation and Preparation

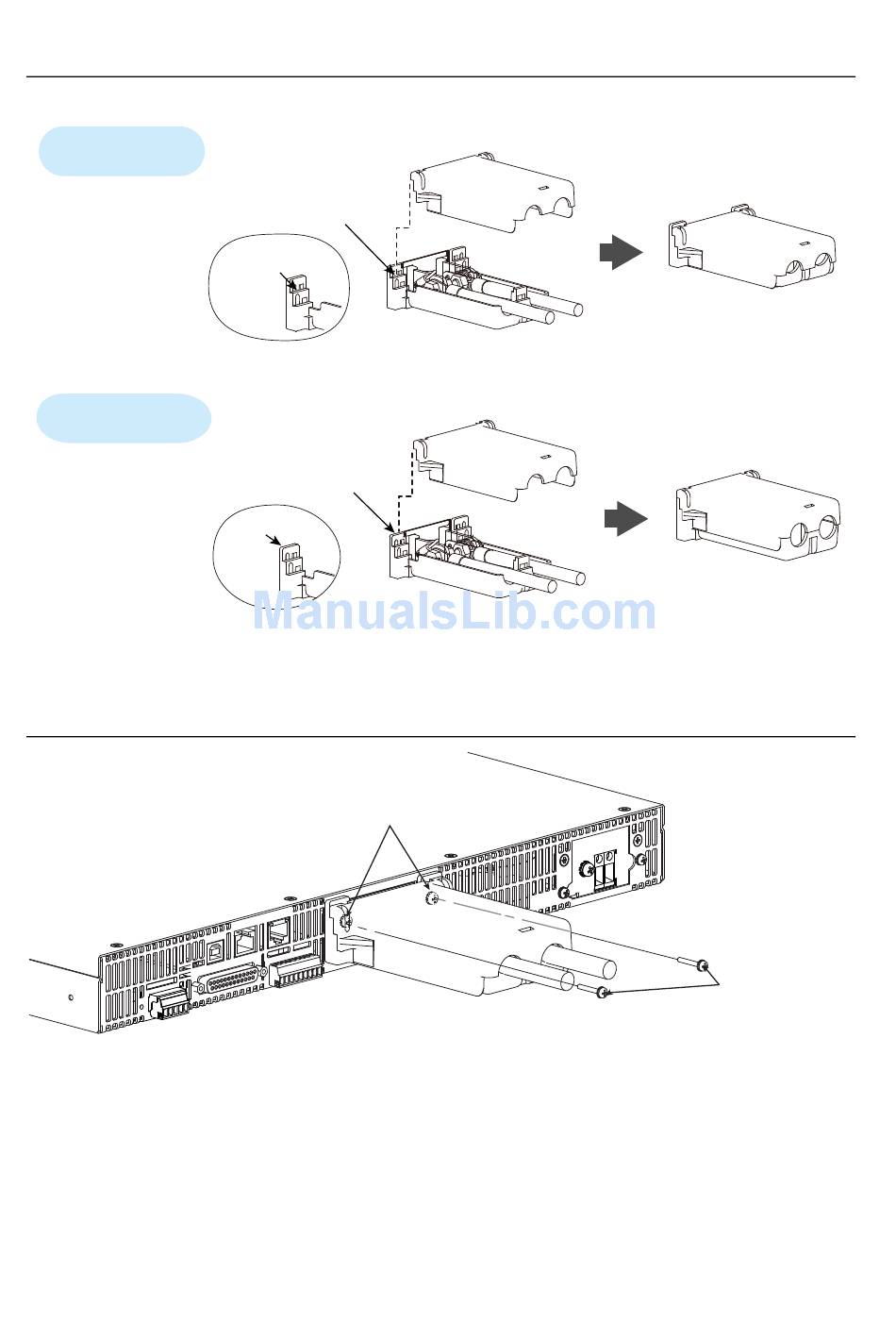

Figure 1-15. Aligning Both Halves of the OUTPUT Terminal Cover
For thin load cables
Cover hole diameter:
Up to 10 mm
For thick load cables
Cover hole diameter:
10 mm to 18 mm
4. Push the OUTPUT terminal cover against the rear panel, and then use the RMX screws to
fix the cover in place. Ensure that the screws are securely fastened.
Figure 1-16. Attaching the OUTPUT Terminal Cover
After you have lined up the top and bottom halves
of the cover, use the screws to fix the cover in place.
1-16 | ni.com
Align the protrusion of
the top half of the cover
with the middle section
of the protrusion of the
bottom half of the cover.
Middle
section
Align the protrusion of
the top half of the cover
with the top section
of the protrusion of the
bottom half.
Top section
Top half of the cover
Bottom half of the cover
Top half of the cove
Bottom half of the cover
Screws (M3)
