National Instruments RMX-4120 User Manual page 13

STRIP - GAUGE
Correct
14 mm
INPUT terminal cover
Cable gland: Supports wires from 10.5 to 14.4 mm in diameter
5. Attach an appropriate crimping terminal to the switchboard end of the power cord.
6. Turn off the switchboard breaker.
7. Connect the L, N, and (GND) wires of the power cord to the matching terminals on the
switchboard.

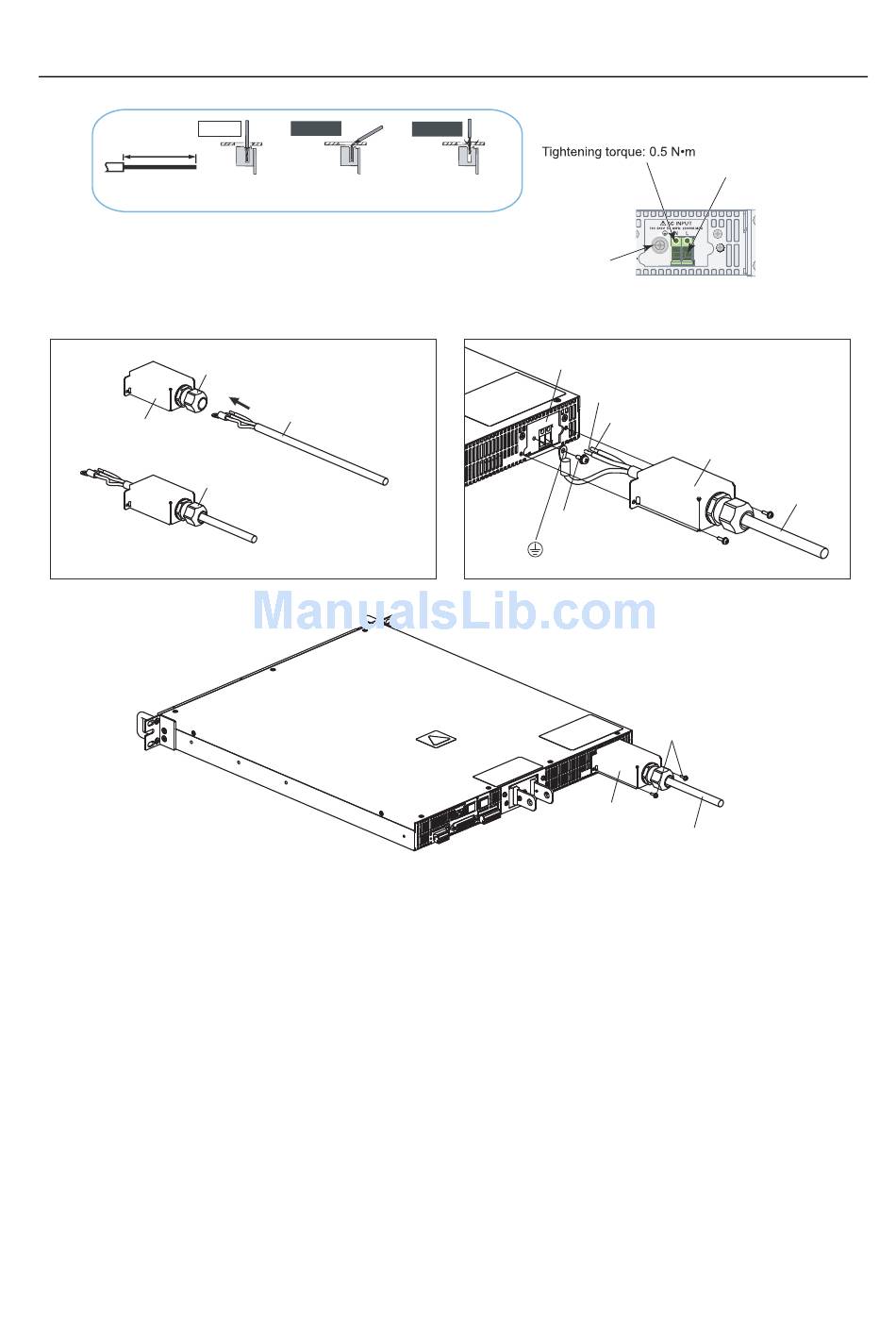

Figure 1-4. Connecting the Power Cord
Incorrect
The stripped wire is
touching the chassis.
Cable gland:
Turn left to unlock
Power cord
Cable gland:
Turn right to lock
RMX Programmable Power Supplies User Manual
Use this screw to fix the
Incorrect
wire in place.
The wire strands are
touching the chassis.
Screw M4
AC INPUT terminal
Screw
(GND)
: Green or green and yellow
INPUT terminal cover
Remove the first
14 mm of the wire's
covering, and then
insert the wire here.
AC INPUT terminal
N: White or blue
L: Black or brown
INPUT terminal cover
Screw
Power cord
© National Instruments | 1-5
Power cord
