USER GUIDE

NI PXI-1042 Series
Power Supply Shuttle
Introduction
Unpacking

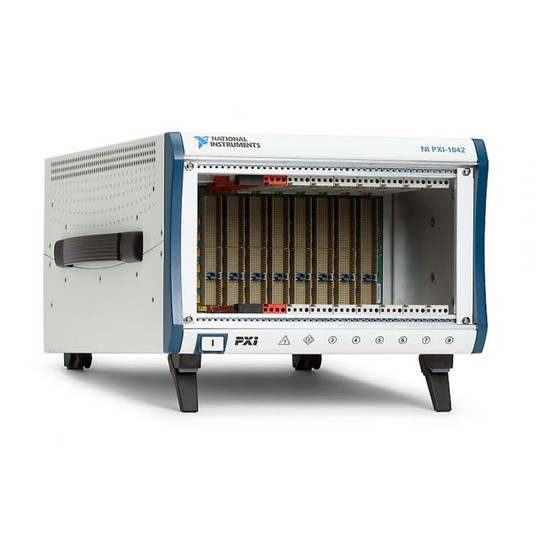

The NI PXI-1042 Series power supply shuttle is a replacement part for the
NI PXI-1042 Series chassis.
To minimize downtime caused by a power-supply failure, the
NI PXI-1042 Series chassis has a modular power supply shuttle. This
power supply shuttle includes the chassis power supply, cooling fans, and
fan-control circuitry. Key features of the power supply shuttle include:
•
Universal AC input with automatic voltage and frequency ranging
•
Over-current protection via push-reset circuit breaker
•
Remote power monitoring and inhibit via a rear-panel connector
•
Temperature-sensing module that can adjust fan speed based on
air-intake temperature to minimize audible noise
•
Circuitry to control a front-panel LED that indicates power supply
failure
Carefully inspect the shipping container and the power supply shuttle for
damage. Check for visible damage to the metal work. Check to make sure
all handles, hardware, and switches are undamaged. Visually inspect the
inside of the shuttle for any possible damage, debris, or detached
components. If damage appears to have been caused during shipment, file
a claim with the carrier. Retain the packing material for possible inspection
and/or reshipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI PXI-1042 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for National Instruments NI PXI-1042 Series

Summary of Contents for National Instruments NI PXI-1042 Series

  • Page 1: User Guide

    USER GUIDE NI PXI-1042 Series Power Supply Shuttle The NI PXI-1042 Series power supply shuttle is a replacement part for the NI PXI-1042 Series chassis. Introduction To minimize downtime caused by a power-supply failure, the NI PXI-1042 Series chassis has a modular power supply shuttle. This power supply shuttle includes the chassis power supply, cooling fans, and fan-control circuitry.

  • Page 2: What You Need To Get Started

    NI PXI-1042 User Manual (provided with the chassis; also available at ni.com/support #1 Phillips screwdriver 6 Remote Inhibit and Voltage Monitoring Connector 7 PXI_CLK10 IN BNC 8 Filter Cover 9 Filter Retainer Screw 10 Mounting Screws (8X) Figure 1. NI PXI-1042 Series Power Supply Shuttle Rear Panel ni.com...

  • Page 3: Installation And Maintenance

    Caution Never connect the AC power cable to the power supply shuttle until you install it in an NI PXI-1042 Series chassis. Do not use, test, or configure the power supply shuttle outside of a chassis. The power supply shuttle is a replacement part for the NI PXI-1042 Series chassis.

  • Page 4: Connecting Safety Ground

    Line regulation The operating range is guaranteed by design. NI PXI-1042 Series Power Supply Shuttle User Guide Connect a 16 AWG (1.3 mm) wire to the chassis grounding screw using a grounding lug. The wire must have green insulation with a yellow stripe or must be noninsulated (bare).
  • Page 5 +5 V –12 V Voltage Maximum Ripple and Noise +3.3 V +12 V +5 V –12 V NI PXI-1042 Series Power Supply Shuttle User Guide NI PXI-1042Q 0–40 °C 20 A 29 A 3.5 A 0.5 A Load Regulation <5% <5%...

  • Page 6: Compliance And Certifications

    For EMC compliance, operate this product according to the documentation. Note NI PXI-1042 Series Power Supply Shuttle User Guide 3.3 V and 5 V...Clamped at 20 to 30% above +12 V and –12 V ...Clamped at 26 to 29 V difference...

  • Page 7: Online Product Certification

    Waste Electrical and Electronic Equipment (WEEE) EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit National Instruments...
  • Page 8 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your...
