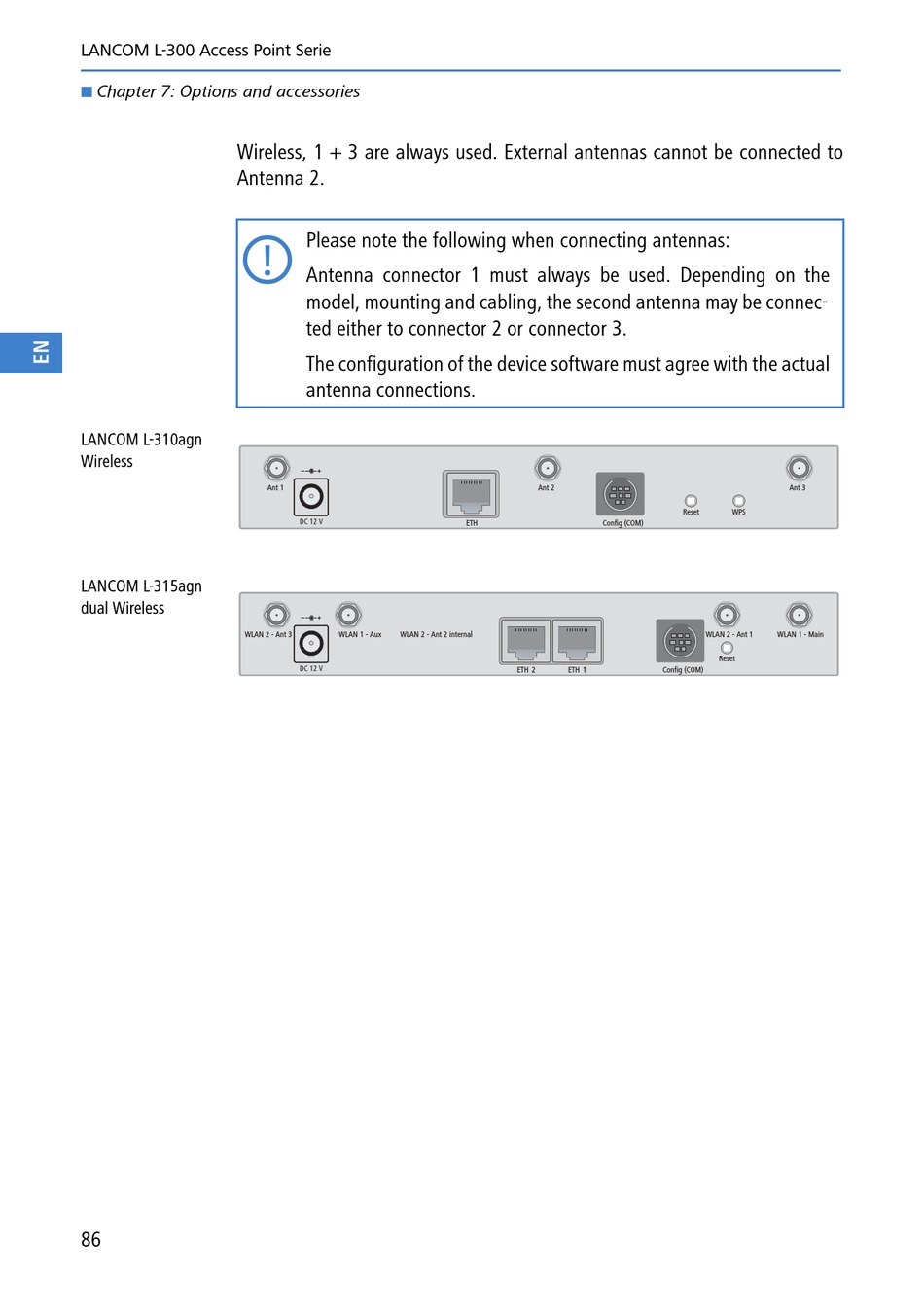

LANCOM L-300 Access Point Serie
Chapter 7: Options and accessories
Wireless, 1 + 3 are always used. External antennas cannot be connected to
Antenna 2.
LANCOM L-310agn
Wireless
LANCOM L-315agn
dual Wireless
WLAN 2 - Ant 3
86
Please note the following when connecting antennas:
Antenna connector 1 must always be used. Depending on the
model, mounting and cabling, the second antenna may be connec-
ted either to connector 2 or connector 3.
The configuration of the device software must agree with the actual
antenna connections.
Ant 1
WLAN 1 - Aux
WLAN 2 - Ant 2 internal
Ant 2
ETH
Config (COM)
ETH 2
ETH 1
Ant 3
Reset
WPS
WLAN 2 - Ant 1
WLAN 1 - Main
Reset
Config (COM)
