Chapter 5: Advanced wireless LAN configuration
WLAN Router

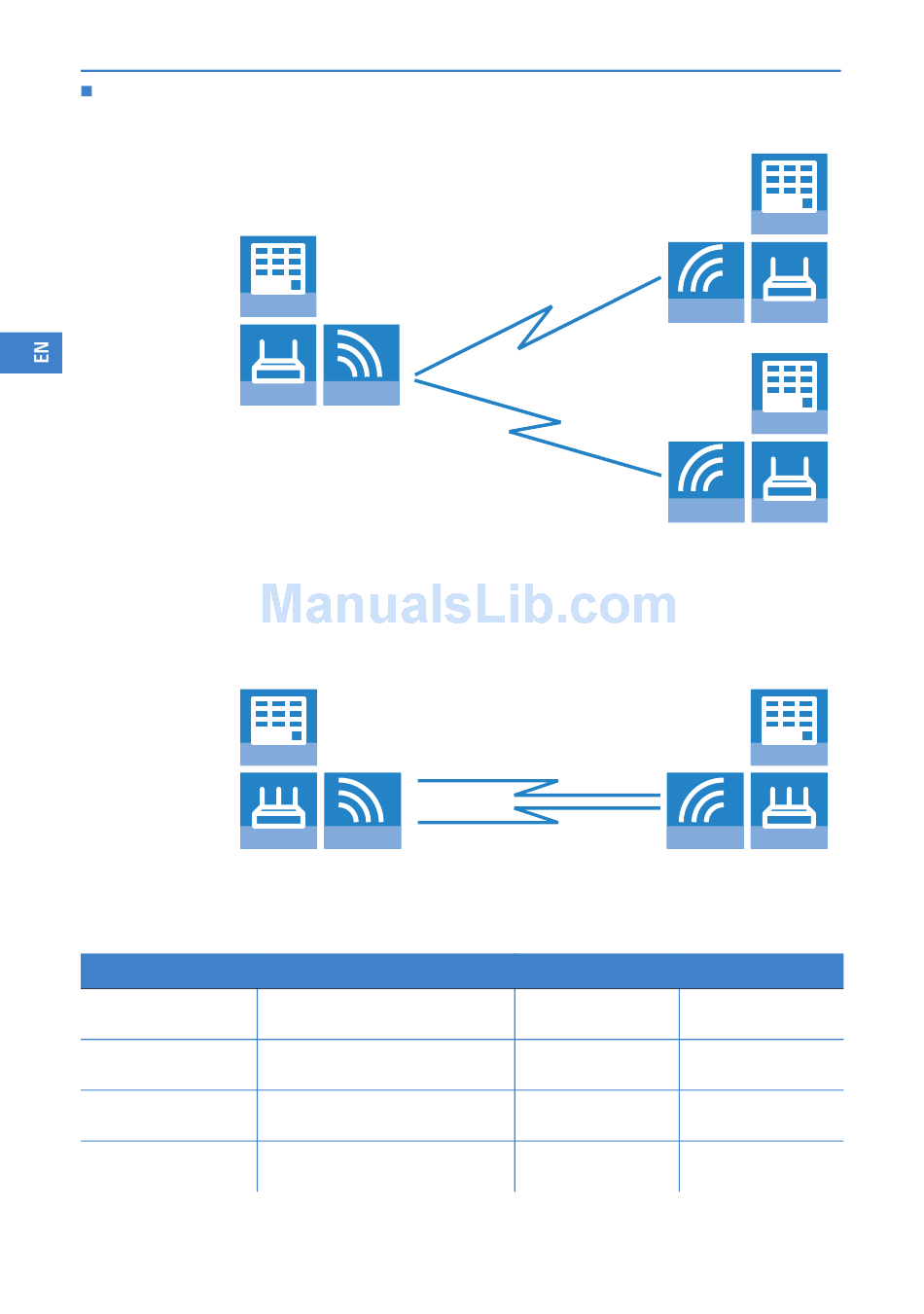

When using Access Points and appropriately polarized antennas in accor-
dance with IEEE 802.11n two wireless links can be established simultaneously
between the end points of a point-to-point connection. This allows higher
data throughput to be achieved or greater distances to be covered than when
using other standards.
MIMO AP 802.11n
Depending on the WLAN standard and WLAN antenna being used, the follo-
wing data-throughput rates can be achieved::
Access Point
802.11n indoor AP
802.11n indoor AP
802.11n outdoor AP
802.11n outdoor AP
62
BUILDING
ANTENNA
BUILDING
POLARIZATION
DIVERSITY
Antenna
Directional antenna with 9° beam
spread, surge protection, 10m cable
Directional antenna with 9° beam
spread, surge protection, 10m cable
Directional antenna with 9° beam
spread, surge protection, 2m cable
Directional antenna with 9° beam
spread, surge protection, 2m cable
ANTENNA
ANTENNA
POLARISATION
DIVERSITY
Data throughput
Range
brutto 240Mbps
1km
brutto 15Mbps
8,9km
brutto 240Mbps
2,1km
brutto 15Mbps
18km
BUILDING
ACCESS POINT
BUILDING
ACCESS POINT
BUILDING
MIMO AP 802.11n
