LANCOM L-300 Access Point Serie
Chapter 5: Advanced wireless LAN configuration
5.3.2

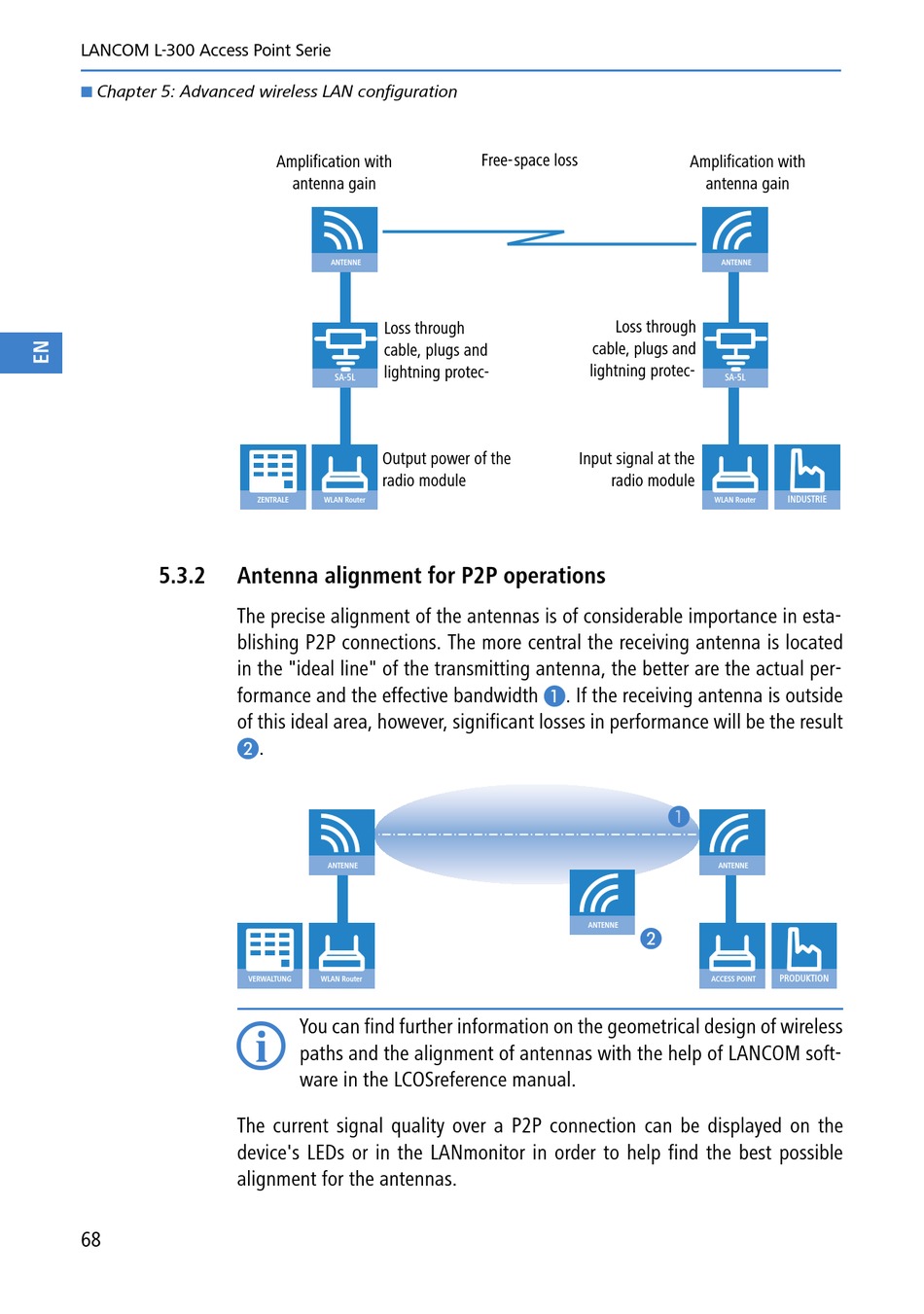

Antenna alignment for P2P operations

The precise alignment of the antennas is of considerable importance in esta-
blishing P2P connections. The more central the receiving antenna is located
in the "ideal line" of the transmitting antenna, the better are the actual per-
formance and the effective bandwidth ³. If the receiving antenna is outside
of this ideal area, however, significant losses in performance will be the result
·.
VERWALTUNG

The current signal quality over a P2P connection can be displayed on the
device's LEDs or in the LANmonitor in order to help find the best possible
alignment for the antennas.
68
Amplification with
antenna gain
ANTENNE
Loss through
cable, plugs and
lightning protec-
SA-5L
Output power of the
radio module
ZENTRALE WLAN Router
ANTENNE
WLAN Router
You can find further information on the geometrical design of wireless
paths and the alignment of antennas with the help of LANCOM soft-
ware in the LCOSreference manual.
Free-space loss
Loss through
cable, plugs and
lightning protec-
Input signal at the
radio module
ANTENNE
·
Amplification with
antenna gain
ANTENNE
SA-5L
INDUSTRIE
WLAN Router
³
ANTENNE
PRODUKTION
ACCESS POINT
