Lancom LX-6212 Hardware Quick Reference

Mounting & connecting

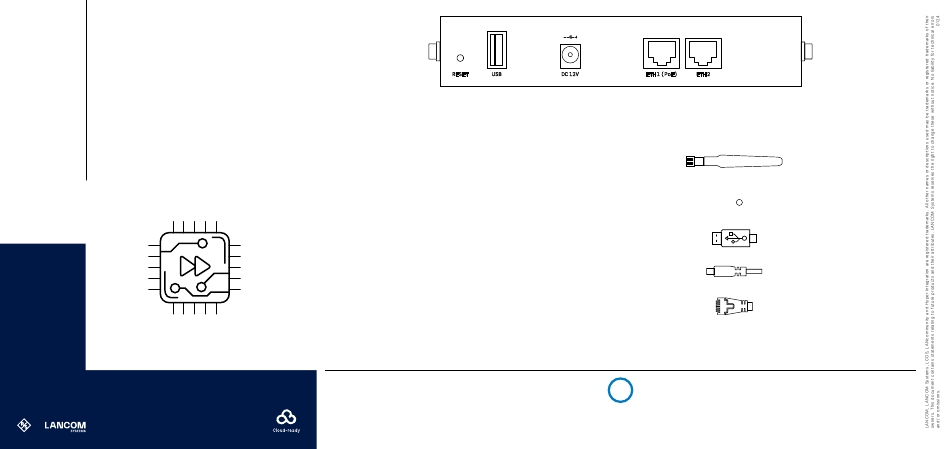

Hardware Quick Reference
LANCOM LX-6212
➀
➁ ➂
➀ Wi-Fi antenna connectors
Screw the supplied Wi-Fi antennas onto the dedicated connectors.
➁ Reset button
Pressed up to 5 seconds:
device restart
Pressed until first flashing up of all LEDs:
configuration reset and device restart
➂ USB interface
Connect compatible USB devices either directly to the USB interface, or use a
suitable USB cable.
➃ Power supply socket
Use only the supplied power adapter.
➄ Ethernet interfaces
Connect the ETH1 (PoE) or ETH2 interface to your PC or a LAN switch using a
suitable Ethernet cable.
Before initial startup, please make sure to take notice of the information regarding the intended use
in the enclosed installation guide!
Operate the device only with a professionally installed power supply at a nearby power socket that is
freely accessible at all times.
The power plug of the device must be freely accessible.
Please note that support for third-party accessories is not provided.
➃ ➄
RESET
Please observe the following when setting up the device
i
→ The power plug of the device must be freely accessible.
→ For devices to be operated on the desktop, please attach the adhesive rubber footpads
→ Do not rest any objects on top of the device
→ Keep all ventilation slots on the side of the device clear of obstruction
→ Lockable wall and ceiling mounting with the LANCOM Wall Mount (LN)
(available as an accessory)
➀
