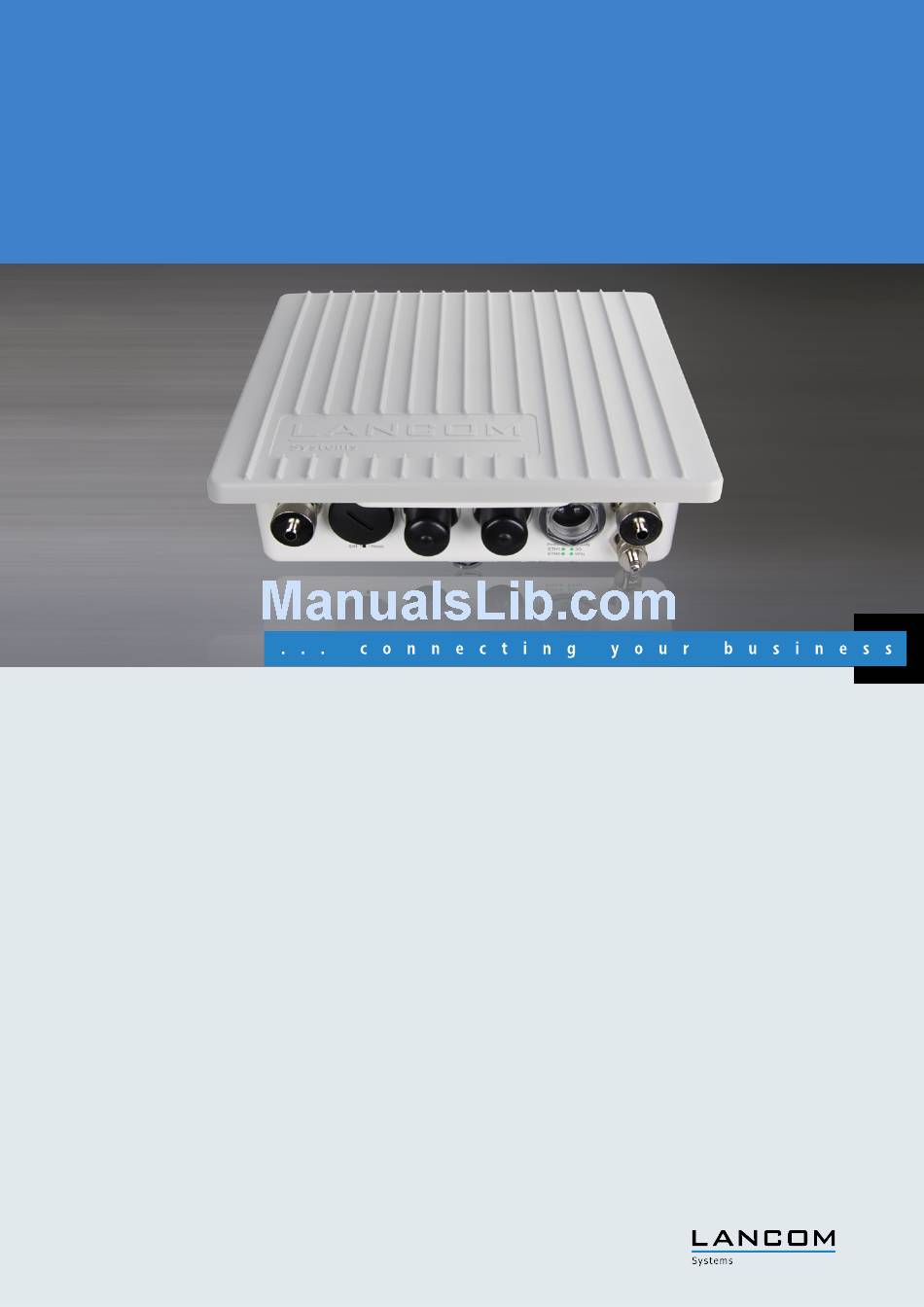

LANCOM OAP-322
Dual-radio outdoor access point based on 802.11n for professional WLAN applications in the
open
1
Four external antennas for the parallel radio operation in 2.4 and 5 GHz
1
Optimized network load at 2.4 GHz due to Band Steering
1
Connectors for Gigabit Ethernet with Power over Ethernet based on IEEE 802.3af and Fast Ethernet
1
Optionally with external power supply for 10 - 28V
1
Robust IP66 protective housing reliable even at extreme temperatures (-33°C to +70°C)
1
Comfortable integration of external users with the Public Spot Option
Advertisement
Related Manuals for Lancom OAP-322
Summary of Contents for Lancom OAP-322
- Page 1 LANCOM OAP-322 Dual-radio outdoor access point based on 802.11n for professional WLAN applications in the open Four external antennas for the parallel radio operation in 2.4 and 5 GHz Optimized network load at 2.4 GHz due to Band Steering Connectors for Gigabit Ethernet with Power over Ethernet based on IEEE 802.3af and Fast Ethernet Optionally with external power supply for 10 - 28V Robust IP66 protective housing reliable even at extreme temperatures (-33°C to +70°C)
- Page 2 WLAN radio modules based in IEEE 802.11n for parallel operation in 2.4 and 5 GHz as well as the robust IP66 protective housing for extreme environmental conditions, versatile fields of application can be realized. Further, due to the support of Power over Ethernet based on IEEE 802.3af, the LANCOM OAP-322 can also be operated reliably at locations without power supply.
- Page 3 LANCOM OAP-322 Features as of: LCOS 8.82 WLAN Frequency band 2.4 GHz and 5 GHz 2400 -2483.5 MHz (ISM) and 5150-5825 MHz (depending on country-specific restrictions) Data rates 802.11b/g 54 Mbps to IEEE 802.11g (fallback to 48, 36 , 24, 18, 12, 9, 6 Mbps, Automatic Rate Selection) compatible to IEEE 802.11b (11, 5.5, 2, 1 Mbps, Automatic Rate Selection), 802.11 b/g compatibility mode or pure g or pure b...
- Page 4 LANCOM OAP-322 Features as of: LCOS 8.82 WLAN U-APSD/WMM Power Save Extension of power saving according to IEEE 802.11e by Unscheduled Automatic Power Save Delivery (equivalent to WMM Power Save). U-APSD supports the automatic switch of clients to a doze mode. Increasmed battery lifetime for telephone calls over VoWLAN (Voice over WLAN)
- Page 5 LANCOM OAP-322 Features as of: LCOS 8.82 Firewall N:N IP address mapping N:N IP address mapping for translation of IP addresses or entire networks Tagging The firewall marks packets with routing tags, e.g. for policy-based routing; Source routing tags for the creation of independent firewall rules for...
- Page 6 LANCOM OAP-322 Features as of: LCOS 8.82 Routing functions Dynamic routing Dynamic routing with RIPv2. Learning and propagating routes; separate settings for LAN and WAN. Extended RIPv2 including HopCount, Poisoned Reverse, Triggered Update for LAN (acc. to RFC 2453) and WAN (acc. to RFC 2091) as well as filter options for propagation of routes. Definition...
- Page 7 LANCOM OAP-322 Features as of: LCOS 8.82 Management WEBconfig Integrated web server for the configuration of LANCOM devices via Internet browsers with HTTPS or HTTP. Similar to LANconfig with a system overview, syslog and events display, symbols in the menu tree, quick access with side tabs. WEBconfig also features Wizards for basic configuration, security, Internet access, LAN-LAN coupling.
- Page 8 LANCOM OAP-322 Features as of: LCOS 8.82 Statistics Export Accounting information exportable via LANmonitor and SYSLOG Hardware Dimensions 255 mm x 250 mm x 80 mm (LengthWidth/Height) Weight approximately 3 kg including pole mounting material LED display 5 LEDs for Power, Ethernet 1, Ethernet 2, WLAN1 and WLAN2...
- Page 9 The Polarization Diversity antennas require 2 cables and surge arrestors Item number(s) LANCOM OAP-382 61552 LANCOM OAP-320 PSU 61691 (UK), Power supply unit for LANCOM OAP-321-3G, LANCOM OAP-3G and LANCOM OAP-322 www.lancom.eu LANCOM Systems GmbH I Adenauerstr. 20/B2 I 52146 Wuerselen I Germany I E-Mail info@lancom.eu I Internet www.lancom.eu...
