LANCOM OAP-382
Dual-radio 802.11n outdoor access point with fiber-optic connector for maximum performance
1
Two integrated 300 Mbps wireless modules for simultaneous operations with IEEE 802.11a/b/g/n
1
Versatility from fiber-optic connector and Gigabit Ethernet
1
Power over Ethernet for easy installation away from power supplies
1
Optional external 48V power supply
1
Professional management functions, IEEE 802.11i/WPA2, Multi-SSID and VLAN
1
Robust IP-66 protective housing
1
Integrated heating and cooling ensures reliability even at extreme temperatures (-25°C to +50°C)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lancom OAP-382
Summary of Contents for Lancom OAP-382

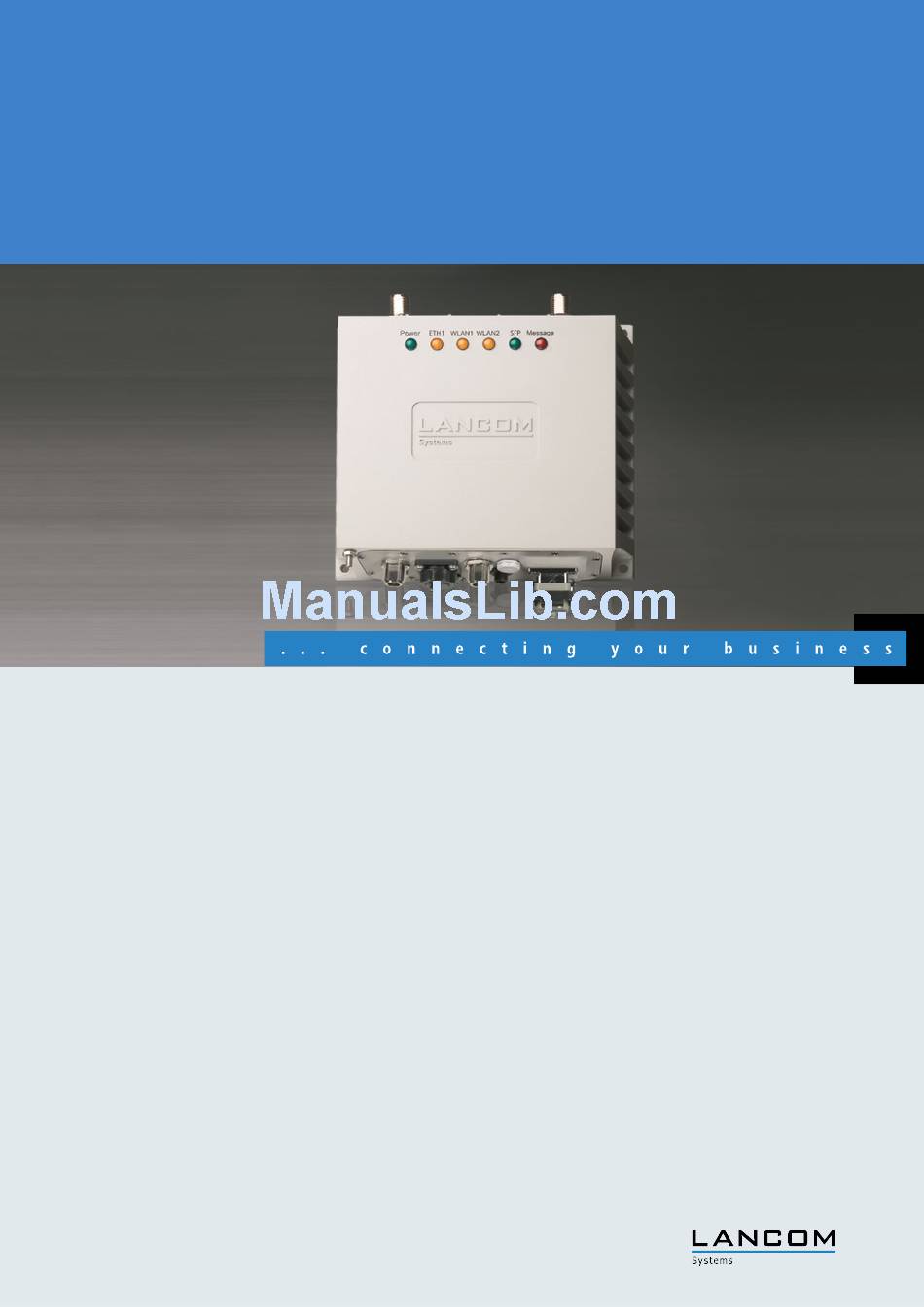

- Page 1 LANCOM OAP-382 Dual-radio 802.11n outdoor access point with fiber-optic connector for maximum performance Two integrated 300 Mbps wireless modules for simultaneous operations with IEEE 802.11a/b/g/n Versatility from fiber-optic connector and Gigabit Ethernet Power over Ethernet for easy installation away from power supplies Optional external 48V power supply Professional management functions, IEEE 802.11i/WPA2, Multi-SSID and VLAN...
- Page 2 WLAN clients. With its water-jet resistant IP-66 housing, integrated heating and cooling, and the sturdy fittings for wall and pole-mounting, the device can be operated wherever the highest standards for stability and robustness apply be it in the mountains or from rooftop to rooftop in the city. The LANCOM OAP-382 can be easily and economically mounted up to 50 m from the nearest power supply thanks to Power over Ethernet.
- Page 3 LANCOM OAP-382 Features as of: LCOS 8.82 WLAN Frequency band 2.4 GHz and 5 GHz 2400 -2483.5 MHz (ISM) and 5150-5825 MHz (depending on country-specific restrictions) Data rates 802.11b/g 54 Mbps to IEEE 802.11g (fallback to 48, 36 , 24, 18, 12, 9, 6 Mbps, Automatic Rate Selection) compatible to IEEE 802.11b (11, 5.5, 2, 1 Mbps, Automatic Rate Selection), 802.11 b/g compatibility mode or pure g or pure b...
- Page 4 LANCOM OAP-382 Features as of: LCOS 8.82 WLAN U-APSD/WMM Power Save Extension of power saving according to IEEE 802.11e by Unscheduled Automatic Power Save Delivery (equivalent to WMM Power Save). U-APSD supports the automatic switch of clients to a doze mode. Increasmed battery lifetime for telephone calls over VoWLAN (Voice over WLAN)
- Page 5 LANCOM OAP-382 Features as of: LCOS 8.82 Firewall Tagging The firewall marks packets with routing tags, e.g. for policy-based routing; Source routing tags for the creation of independent firewall rules for different ARF contexts Actions Forward, drop, reject, block sender address, close destination port, disconnect...
- Page 6 LANCOM OAP-382 Features as of: LCOS 8.82 Routing functions DHCPv6 DHCPv6 client, DHCPv6 server, DHCPv6 relay, stateless- and stateful mode, IPv6 address (IA_NA), prefix delegation (IA_PD), DHCPv6 reconfigure (server and client) Layer 2 functions ARP lookup Packets sent in response to LCOS service requests (e.g. for Telnet, SSH, SNTP, SMTP, HTTP(S), SNMP, etc.) via Ethernet can be routed directly to the...
- Page 7 LANCOM OAP-382 Features as of: LCOS 8.82 Management WEBconfig Integrated web server for the configuration of LANCOM devices via Internet browsers with HTTPS or HTTP. Similar to LANconfig with a system overview, syslog and events display, symbols in the menu tree, quick access with side tabs. WEBconfig also features Wizards for basic configuration, security, Internet access, LAN-LAN coupling.
- Page 8 LANCOM OAP-382 Features as of: LCOS 8.82 Statistics Export Accounting information exportable via LANmonitor and SYSLOG Hardware Power supply Via Power over Ethernet (max. distance between access point, injector and switch 50 m), 1 x PoE Injector supplied* Power supply...
- Page 9 The Polarization Diversity antennas require 2 cables and surge arrestors Item number(s) LANCOM OAP-382 (EU) 61542 LANCOM OAP-382 (UK) 61561 LANCOM OAP-382 (bulk 1), excluding cable, 61544 antennas and power supply www.lancom.eu LANCOM Systems GmbH I Adenauerstr. 20/B2 I 52146 Wuerselen I Germany I E-Mail info@lancom.eu I Internet www.lancom.eu...
