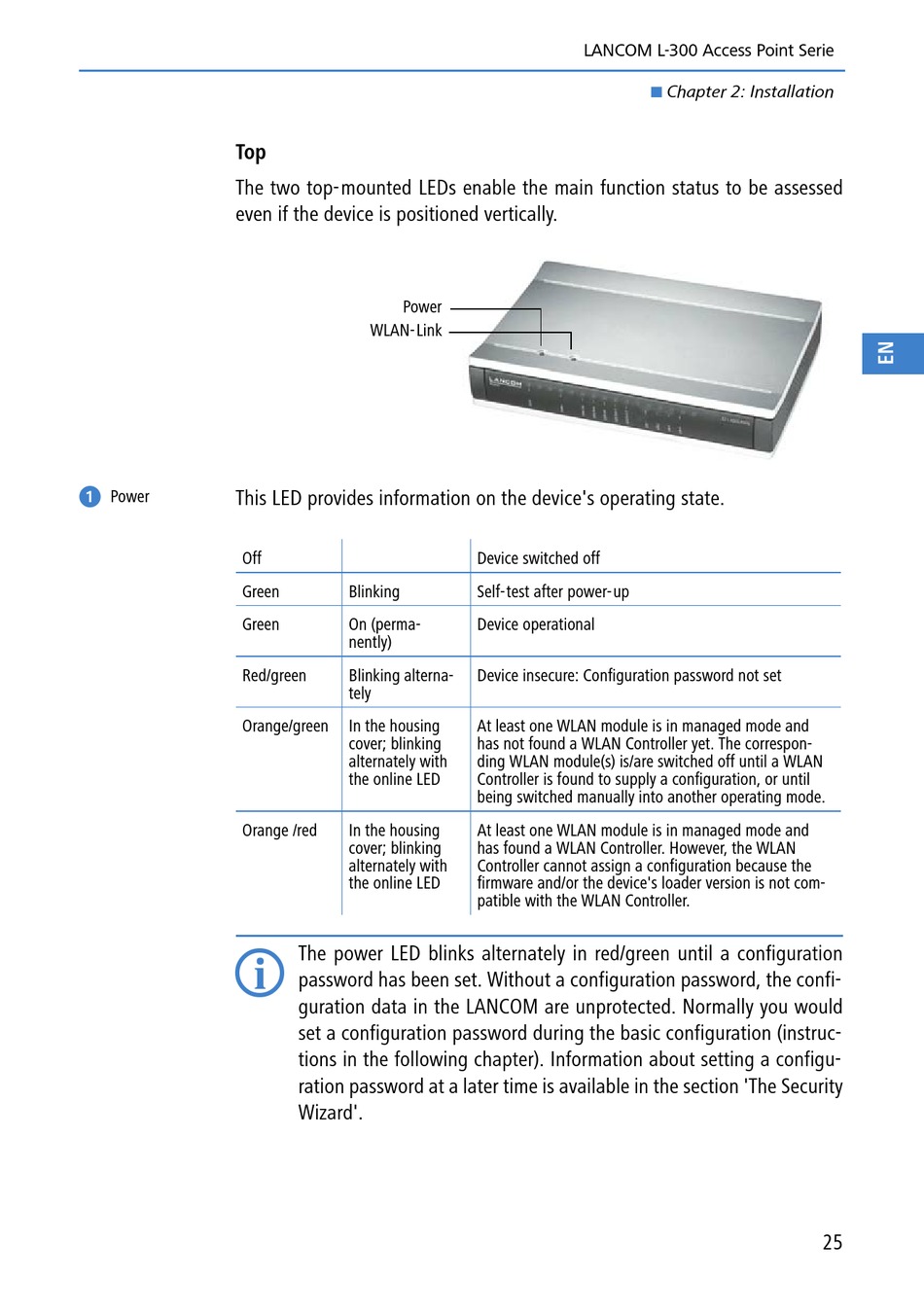

Top
The two top-mounted LEDs enable the main function status to be assessed
even if the device is positioned vertically.
Power
This LED provides information on the device's operating state.
Off
Green
Green
Red/green
Orange/green
Orange /red
Power
WLAN-Link
Blinking
On (perma-
nently)
Blinking alterna-
tely
In the housing
cover; blinking
alternately with
the online LED
In the housing
cover; blinking
alternately with
the online LED
The power LED blinks alternately in red/green until a configuration
password has been set. Without a configuration password, the confi-
guration data in the LANCOM are unprotected. Normally you would
set a configuration password during the basic configuration (instruc-
tions in the following chapter). Information about setting a configu-
ration password at a later time is available in the section 'The Security
Wizard'.
LANCOM L-300 Access Point Serie
Device switched off
Self-test after power-up
Device operational
Device insecure: Configuration password not set
At least one WLAN module is in managed mode and
has not found a WLAN Controller yet. The correspon-
ding WLAN module(s) is/are switched off until a WLAN
Controller is found to supply a configuration, or until
being switched manually into another operating mode.
At least one WLAN module is in managed mode and
has found a WLAN Controller. However, the WLAN
Controller cannot assign a configuration because the
firmware and/or the device's loader version is not com-
patible with the WLAN Controller.
Chapter 2: Installation
25
