Lancom LX-6200 Hardware Quick Reference

Mounting & connecting

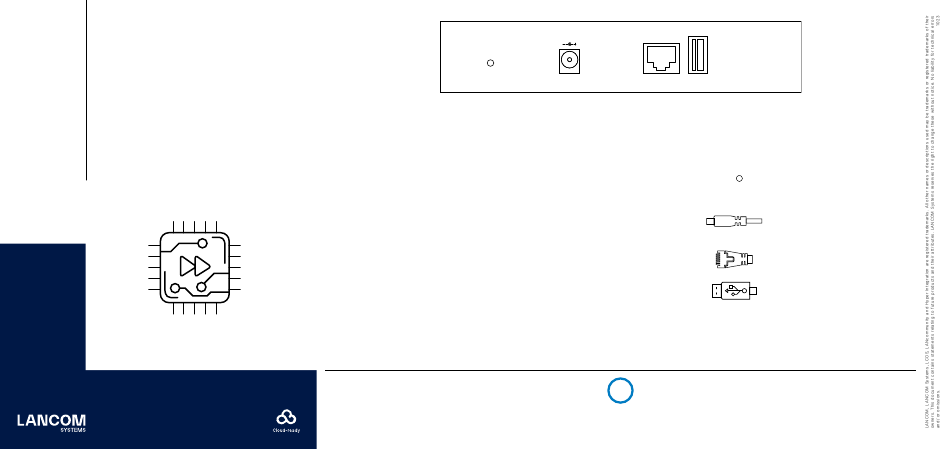

Hardware Quick Reference
LANCOM LX-6200
Reset
➀
➀ Reset button
Pressed up to 5 seconds:
device restart
Pressed until first flashing up of all LEDs:
configuration reset and device restart
➁ Power supply socket
After connecting the cable to the device, turn the connector 90° clockwise to
prevent it from accidental un plugging. Use only the supplied power adapter.
➂ Ethernet interface
Use the cable with the Ethernet connectors to connect interface ETH1 (PoE)
to your PC or a LAN switch.
➃ USB interface
Connect compatible USB devices either directly to the USB interface, or use a
suitable USB cable.
Before initial startup, please make sure to take notice of the information regarding the intended
use in the enclosed installation guide!
Operate the device only with a professionally installed power supply at a nearby power socket
that is freely accessible at all times.
The power plug of the device must be freely accessible.
Please note that support for third-party accessories (SFP and DAC) is not
provided.
DC 12 V ETH1 (PoE) USB
➁ ➂ ➃
RESET
Please observe the following when setting up the device
i
→ The power plug of the device must be freely accessible.
→ For devices to be operated on the desktop, please attach the adhesive rubber footpads
→ Do not rest any objects on top of the device
→ Keep all ventilation slots on the side of the device clear of obstruction
→ Lockable wall and ceiling mounting with the LANCOM Wall Mount (LN)
(available as an accessory)
