Mounting the Speaker

1.
2.
Replace the access plate and tighten the two retaining screws.

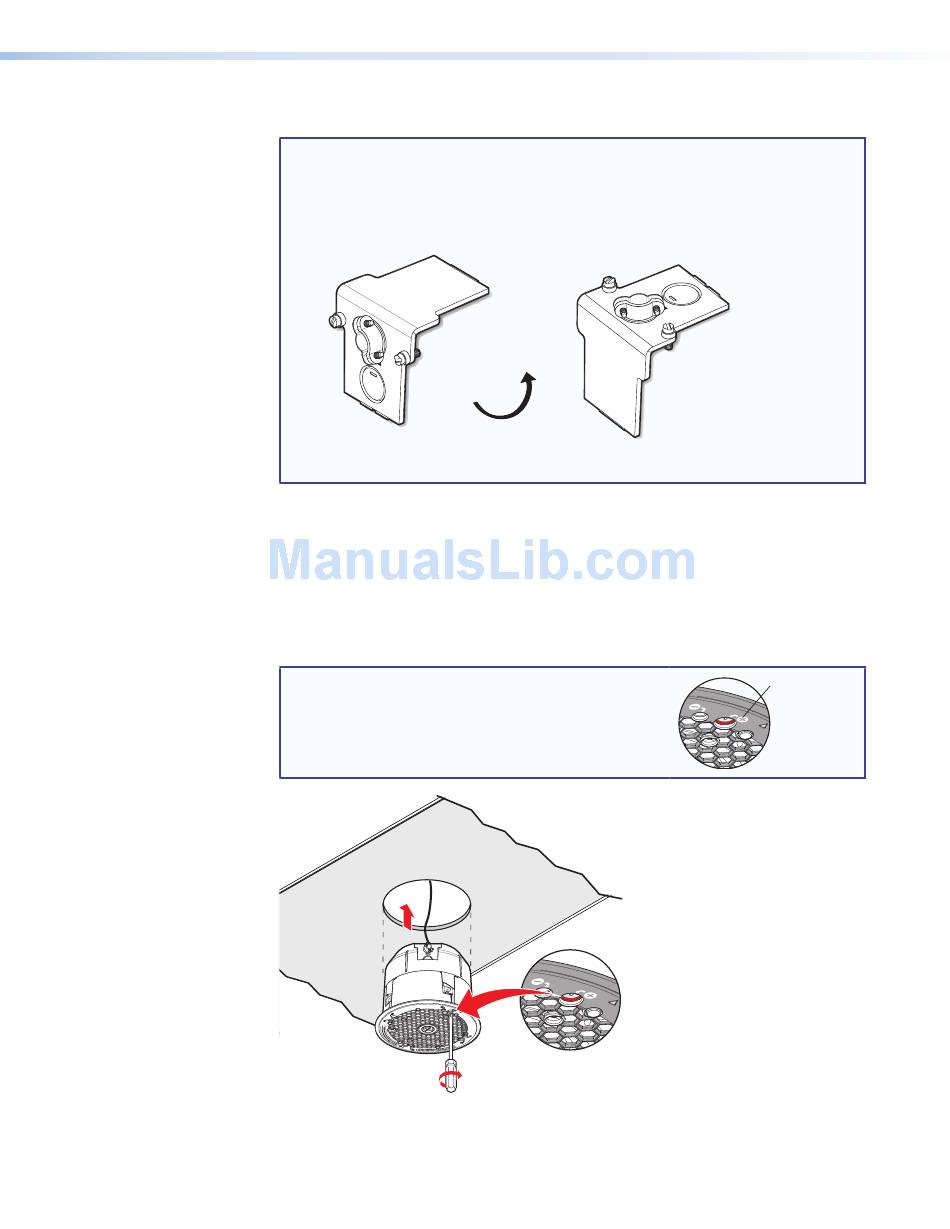

NOTE: The access plate can be positioned in one of two ways depending on
installer preference. For example:
• The side access wire opening may be useful when space above the ceiling is
limited.
• The top access wire opening may be more convenient to use.
Before tightening the screws, flip the cover to the desired position with the wire
openings either on the side or on the top of the speaker enclosure.
Tighten the cable clamp if it was used.
Insert the speaker through the bottom of the hole in the ceiling tile that was cut in
step 3 on page 3 ("Preparing the Installation Location") with the wires out of the way.
Clamp the speaker to the C-ring by using a Phillips screwdriver to tighten the four
locking arms to the C-ring (see figure 7 below and the Note on the next page).
NOTE: The screw hole locations are marked on the
front baffle with a Phillips-head screw symbol.
Use these holes to tighten the locking arms.
Figure 7. Clamping the speaker to the C-ring
OR
SF 26CT User Guide • Installation - Single Installer
Locking arm
screw hole
marking
