NOTE: Each of the four locking arm screws uses an Opti-Torque
The indicator releases a red plastic ring onto the screwdriver once the screw
is tightened to the correct torque. Stop tightening any further when this
occurs to avoid overtightening the locking arms to the C-ring.

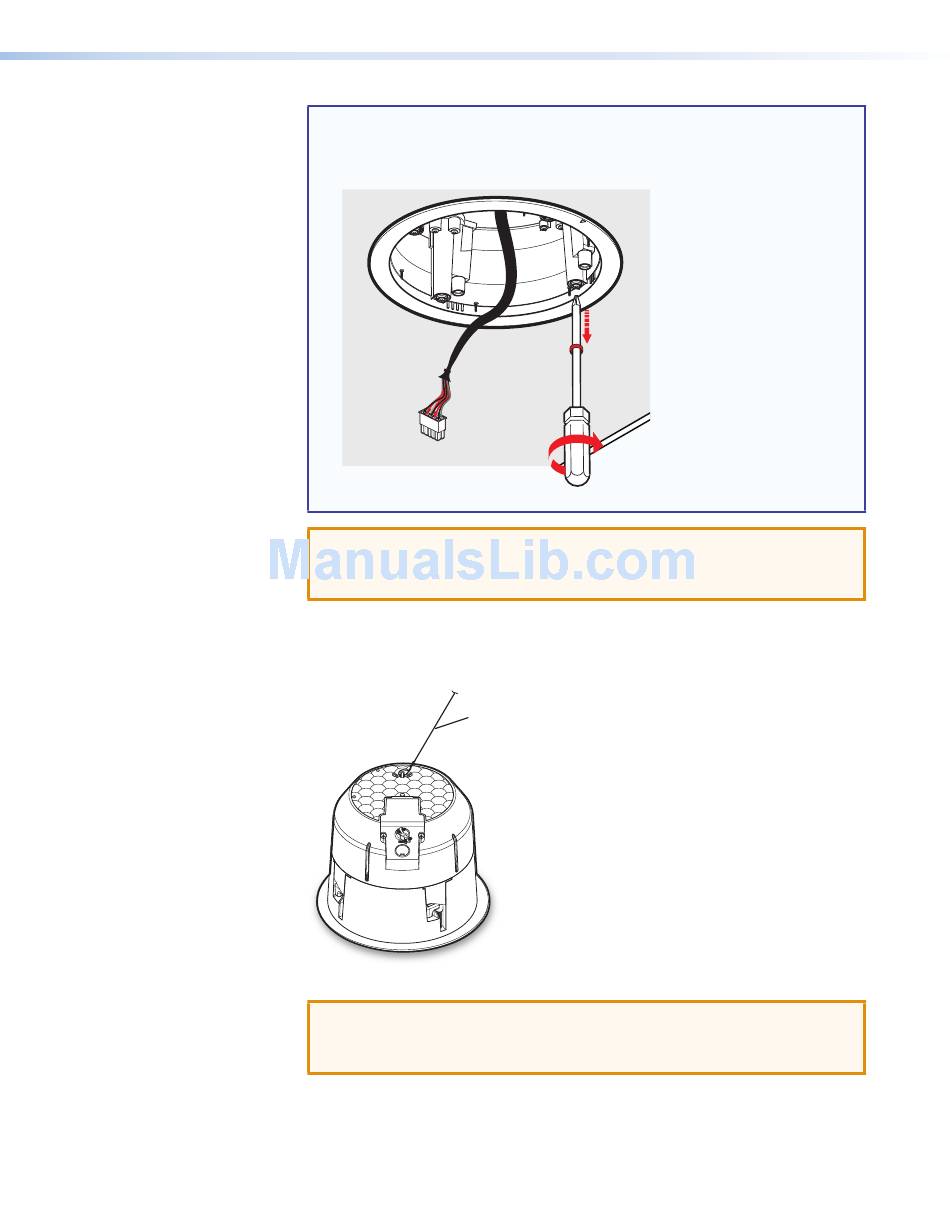

Figure 16.
Stop tightening when the red ring falls
ATTENTION:
•
To avoid damaging the speaker, do not overtighten the four screws.
•
Pour éviter d'endommager l'enceinte, ne serrez pas trop les quatre vis.
2.
If required, attach a secondary support line.
a.
Connect a secondary support line to the support loop on the the back of the
speaker enclosure, as shown here.
Figure 17.
Connecting a secondary support line
ATTENTION:
•
Do not allow any slack in the secondary support line.
•
Ne laissez pas de mou au niveau du filin de sécurité secondaire.
b.
Replace the adjacent ceiling tile that was removed in
3.
Repeat steps 1 and 2 for each speaker being installed.
SF 26CT User Guide • Installation in a Suspended Ceiling - Division of Labor
Anchor end to suitable
secure points within the
solid and permanent
building structure.
indicator.
TM
step 4b
on page 4.
14
