Installation
The Installation section describes:
•
•
•
•
Installing the Speaker Mounting Plate
The SM 3 speaker comes with two types of speaker mounting plates:
•
•

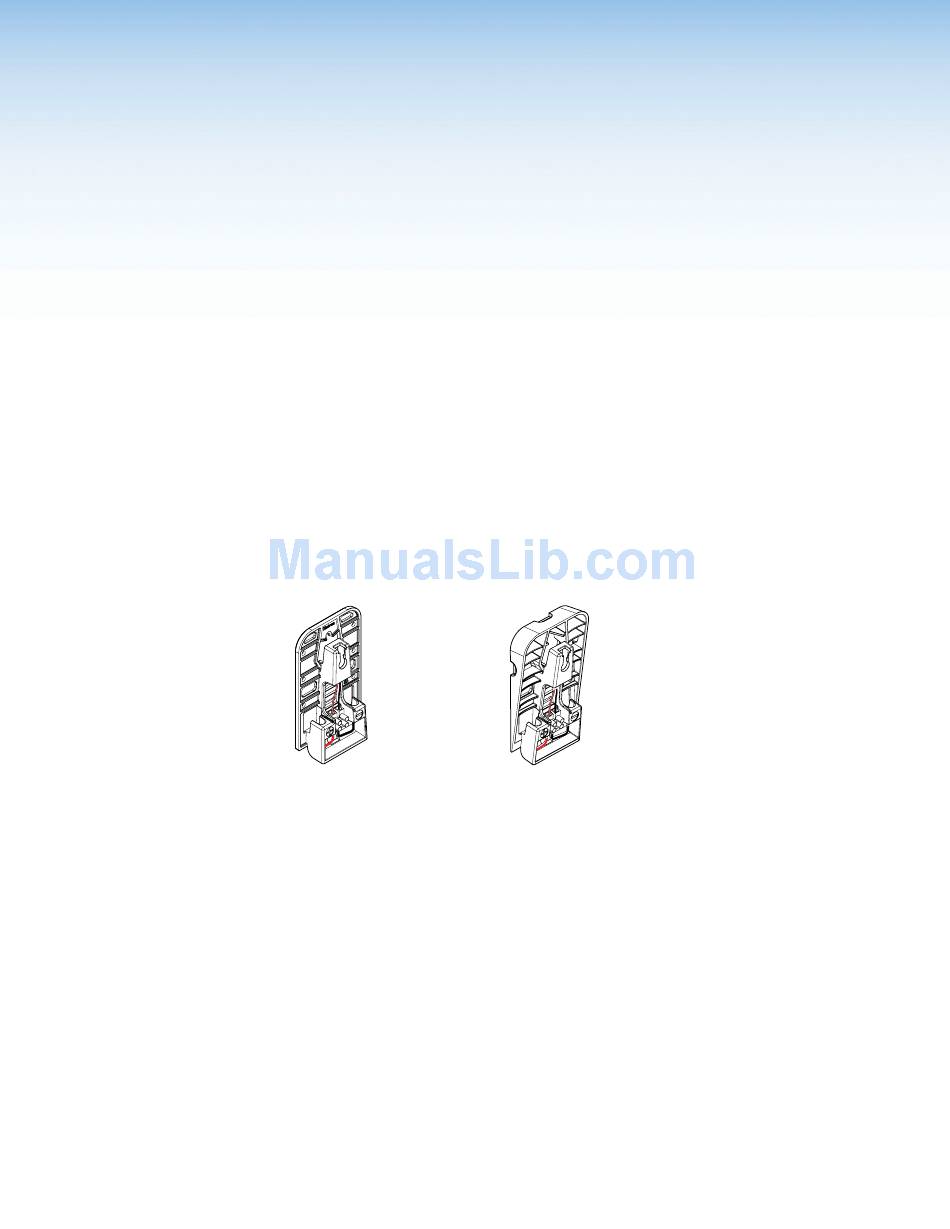

Figure 2.
Installing the Speaker Mounting Plate
Attaching the Speaker to the Mounting Plate
Removing the Speaker from the Mounting Plate
Attaching a Seismic Support Cable
0° mounting plate — The 0° plate allows the speaker to be mounted flat on a vertical
wall with the speaker protruding less than four inches (ADA compliant) from the wall
surface (see figure 2 below).
10° mounting plate — The 10° mounting plate allows the speaker to be installed at
a 10 degree angle so that the speaker can be pointed down from an elevated position
(see figure 2 below).
0° Mounting Plate
Two types of speaker mounting plates
10° Mounting Plate
SM 3 User Guide • Installation
3
