A652–01–880 Issue S
5.6

Inspect and clean the gas-ballast control

Note: The gas-ballast filter element
remove it.
1. Refer to Figure 8. Turn the gas-ballast control (1) to the high flow position (position 'II').
2. Push the control down against the compression spring (6) as far as it will go, then turn the control anticlockwise
slightly to release the bayonet-lugs (5) and remove the control.
3. If necessary, wipe the control with a clean, dry, lint-free cloth and check that the air-hole (3) is not blocked.
4. Refit the control into the gas-ballast inlet and ensure that the compression spring locates correctly between the
bayonet-lugs.
5. Push the control down as far as it will go and then turn the control clockwise slightly until the bayonet-lugs
engage correctly.
6. Reset the gas-ballast control to the required position.
Page 36
(Figure 8, item 7) is retained in its seating with adhesive; do not try to

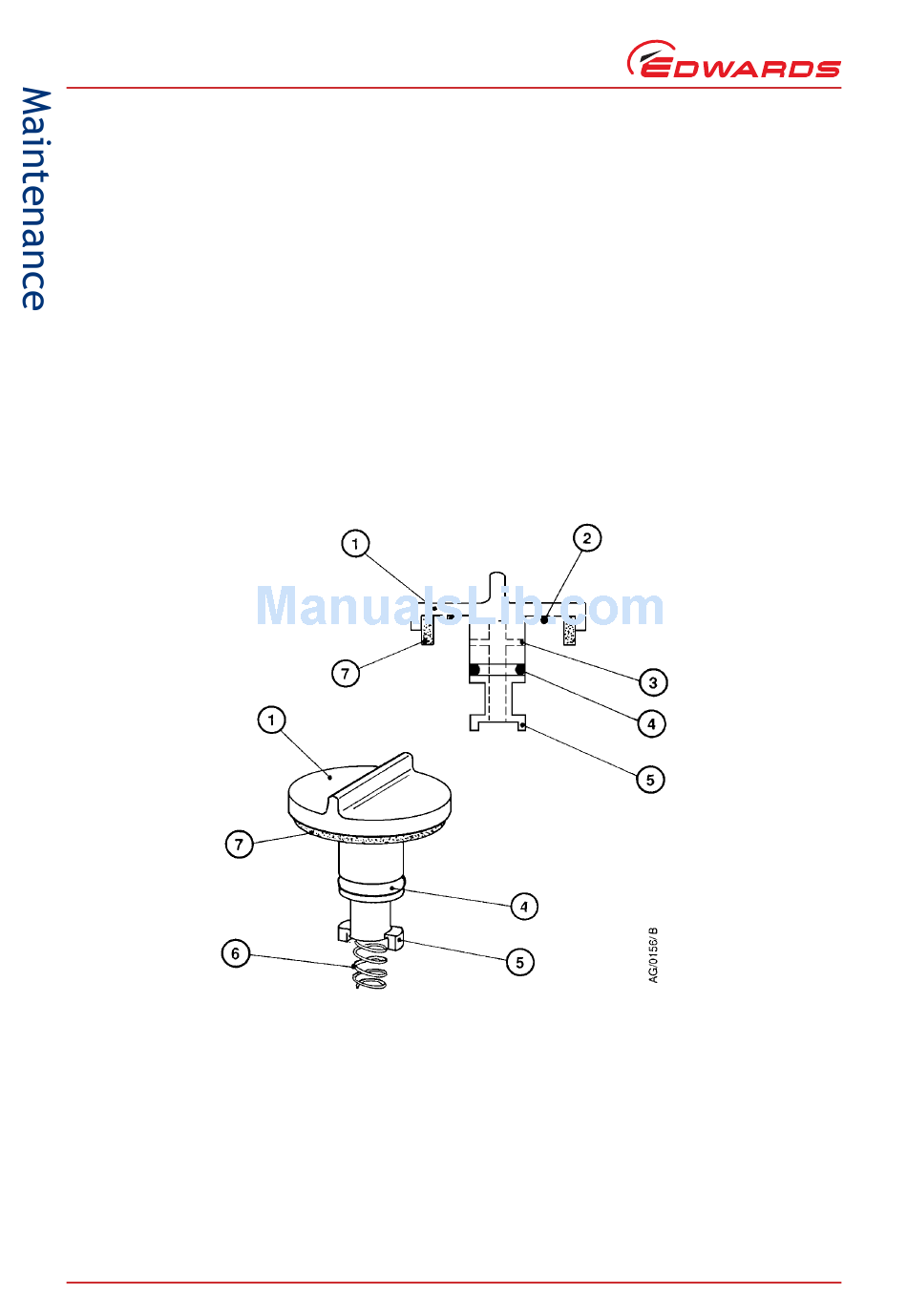

Figure 8 - Gas-ballast control assembly
1. Gas-ballast control
2. 'O' ring
3. Air-hole
4. 'O' ring
5. Bayonet-lugs
6. Compression spring
7. Filter element
