The Rv Pump - Edwards RV3 Instruction Manual

1. Electrical inlet-connector
2. Voltage indicator
3. Lifting handle *
4. NW25 inlet-port
5. Gas-ballast control
6. Oil filler-plug
7. NW25 outlet-port
* RV3 and RV5 pumps only; a lifting bracket is fitted to RV8 and RV12 pumps.
† Single-phase pumps only.
Note: Single-phase RV3/RV5 pump shown.
© Edwards Limited 2007. All rights reserved.
Edwards and the Edwards logo are trade marks of Edwards Limited.

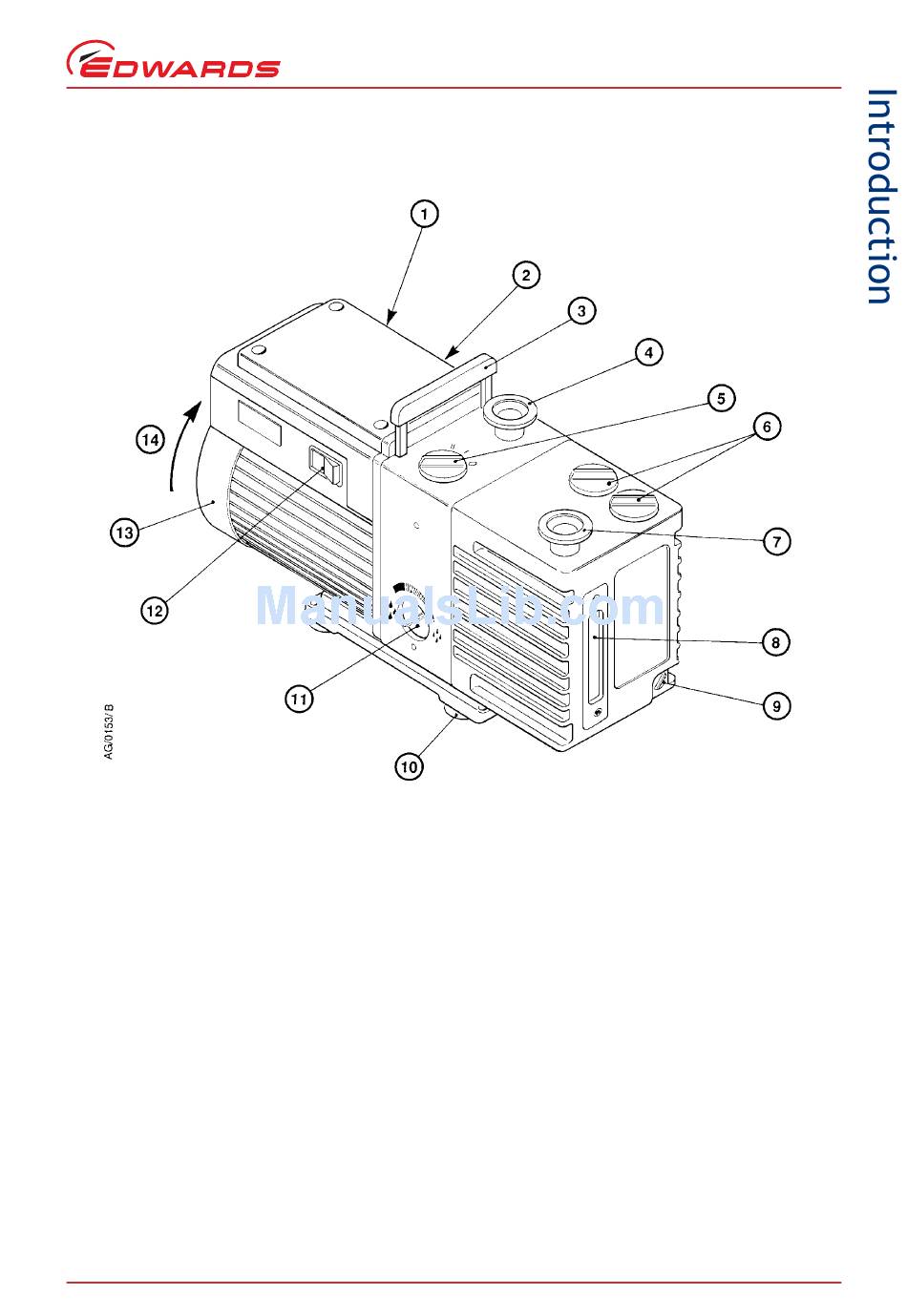

Figure 1 - The RV pump
8. Oil-level sight-glass
9. Oil drain-plug
10. Rubber feet (4 off)
11. Mode selector
12. On-off switch
13. Motor fan-cover
14. Correct direction of rotation
