Flue Gas Analysis 8.1. Gas Analysis - Ecom EN2 Operating Instructions Manual

8. Flue Gas Analysis
8.1. Gas analysis
After the 1-minute calibration phase, the instrument switches over to
the measurement mode. The gas measurement values can be viewed
on 4 display pages. Use the cursor keys to scroll the pages.
Hotkey
Key <F1>
Pressing <F1> enables to switch, from the values display, to a menu
point selected before or on „Standby" (see chapter Adjustments).
Possible menu points are: Soot...Oil trace, Data processing, View
memory, Display values, Fuel type, Efficiency (K), Internal,
Adjustments. Furthermore you can switch back from any random menu
point to the values display with <F1>.
Press <F2> to print out the values simultaneously to their recording in
the intermediate memory.
Press <F3> to cut the CO sensor from the gas path so that it is protected
against too high concentrations.
Pressing <F4> also enables to switch, from the values display, to a
menu point selected before or on „Standby" (see chapter Adjustments).
Possible menu points are: Soot...Oil trace, Data processing, View
memory, Display values, Fuel type, Efficiency (K), Internal, Adjustments
(back to values display with <F1>).
ecom-EN2
Re-calibrate the instrument after each
measurement (after one hour at the latest)
to keep the accuracy of the results!
O2
CO2
T.Gas
T.Air

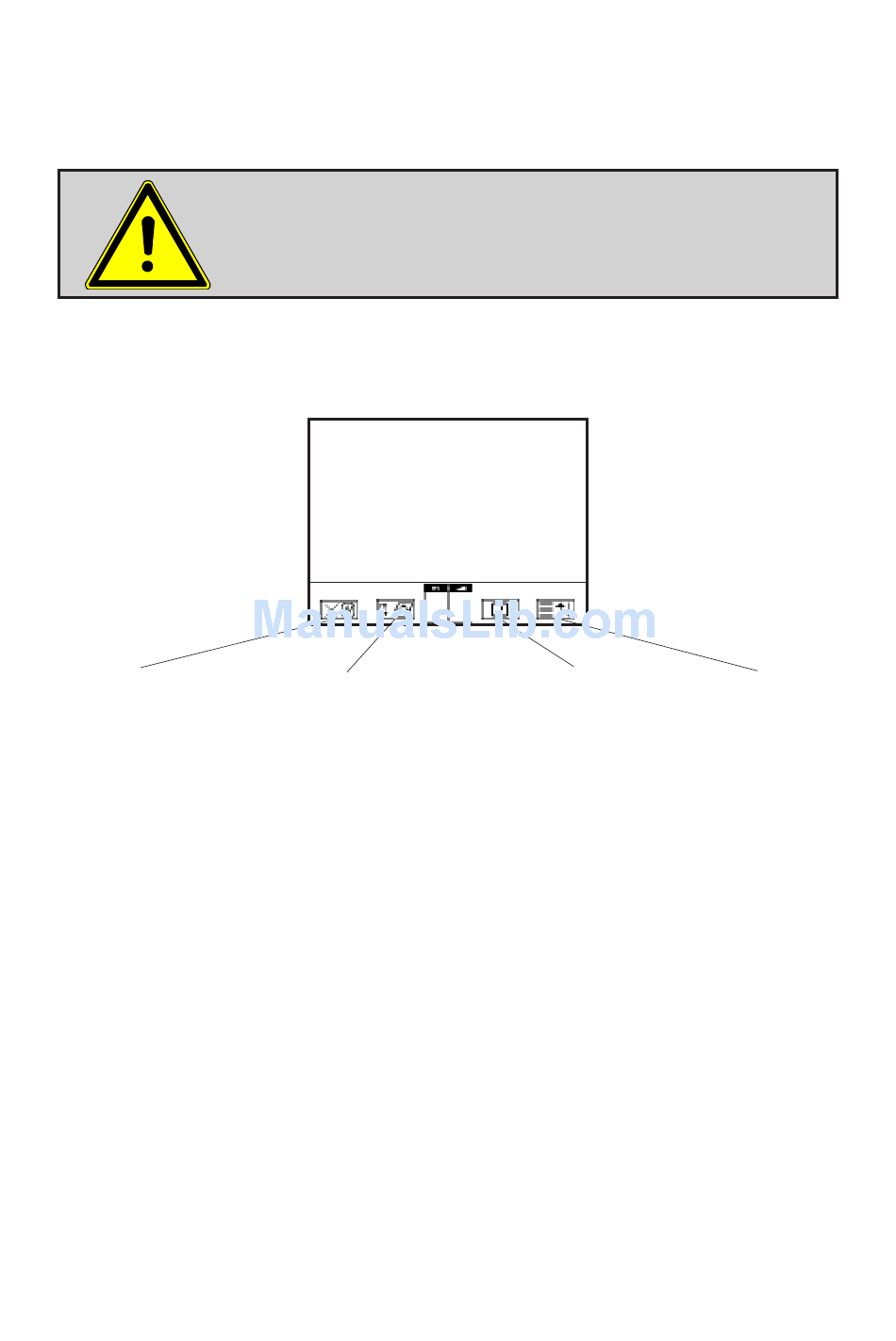

Gas analysis
Store and print
values
key <F2>
3.2
%
13.1
%
184
°C
20
°C
Switch-off
CO sensor
key <F3>
Hotkey
key <F4>
Page 13
