protocol. The detail formats are shown in F-4.5.8;
2. RTSP: Use RTSP to add camera. You can add any IP cameras which have RTSP protocol streams.
You need select 554 for the port and input the resource path for the camera. Take Milesight device as an example,
for main stream the resource path is "rtsp://IP:port/main" and the second stream is "rtsp://IP:port/sub".
The details about adding format are shown in F-4.5.9;
3. MSSP: If your IP camera is a Milesight device you can select this protocol to add cameras in the same LAN. The
detail formats are shown in F-4.5.10;
Step3. Check the connection status.
After adding the IP channels, click [Refresh] button, the [status] will show [connected] as below, If not, you need
to check if the network is connected or whether the user name, password is correct or not.
File Format：MS-QR-JS-04 Rev1.0

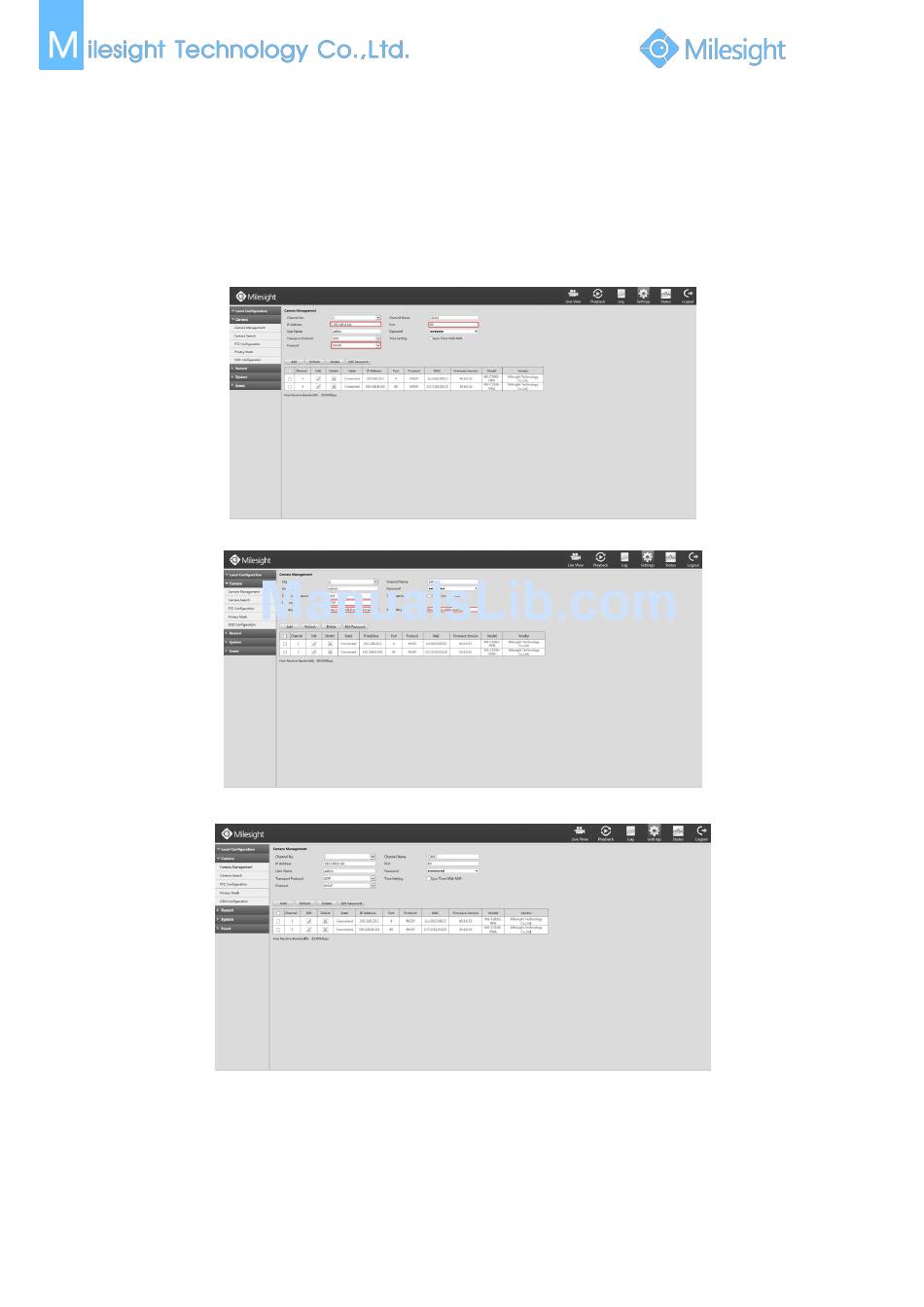

F-4.5.8
F-4.5.9
F-4.5.10
Durability Date：1Years
83
