Page 1 Network Video Recorder User Manual V5.08...
Page 2 Safety Regulatory These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measures are divided into “Warnings” and “Cautions” Warnings: Serious injury or death may be caused if any of these warnings is neglected.
Page 3 should not be exposed to where a laser beam equipment is used  Use a blower to remove dust from the lens cover  Use a soft, dry cloth to clean the surface of the camera. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry ...
Page 4: Table Of Contents
Content 1. Product Introduction........................7 1.1 Introduction...........................7 1.2 Product Key Functions......................7 2. Hardware............................10 2.1 Panel Buttons........................10 2.2 Using a USB Mouse......................12 2.3 Hard Disk Installation......................13 2.3.1 MS-N7000 series Hard Disk Installation..............13 2.3.2 MS-N8000 series Hard Disk Installation..............14 3.
Page 5 3.7.6 VCA........................... 82 3.8 Settings..........................120 3.8.1 General........................120 3.8.2 Network........................121 3.8.3 Holiday........................126 3.8.4 User........................127 3.8.5 Maintenance......................129 3.8.6 Auto Reboot......................131 3.8.7 Hot Spare........................131 3.9 Status..........................132 3.9.1 Device Information....................133 3.9.2 Network Status.......................133 3.9.3 Camera Status......................133 3.9.4 Disk Status......................134 3.9.5 Event Status......................135 3.9.6 Group Status......................137 3.9.7 Logs.........................137...
Page 6 4.8 Logs............................232 4.9 Logout..........................232 5. Services............................233...
Page 7: Product Introduction

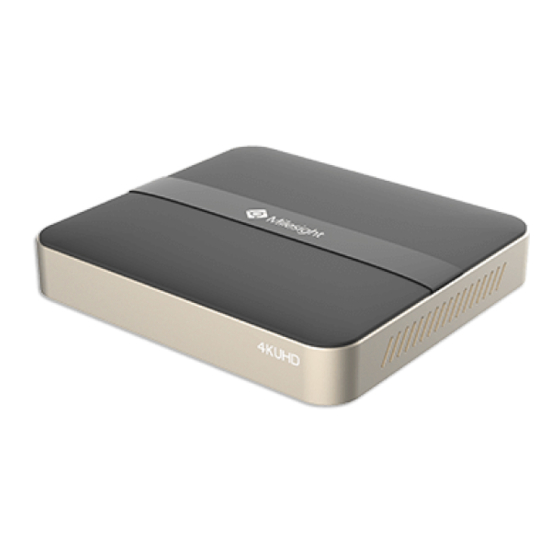

Milesight NVR Series includes NVR Series (Mini NVR 1000 Series, Pro NVR 5000 Series,  Pro NVR 7000 Series, Pro NVR 8000 Series), and PoE NVR Series (Mini PoE NVR 1000 Series, PoE NVR 5000 Series and PoE NVR 7000 Series), which can work with Milesight network cameras and connect with third party network cameras that support ONVIF.
Page 8 Support eSATA disk for recording or backup of NVR Pro 8000 Series.  Recording/Snapshot and Playback Support ANR (Automatic Network Replenishment) for replenishing the recording gap  due to internet interruptions. Support Transcoding for remote playback.  Support recording with Primary Stream, Secondary Stream and Primary + Secondary ...
Page 9 Support IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP,  SNTP, SMTP, SNMP, UPnP. Support remote acquiring of device status, system log and alarm status.  Support remote operate system maintenance by initialize hard disk, add NAS, upgrade ...
Page 10: Hardware
2. Hardware 2.1 Panel Buttons Model Hardware/Interface MS-N1004-UC: MS-N1009-UT (Firmware version: 71.xx.xx.xx): 4K H.265 Mini NVR 1000 Series MS-N1009-UNT: MS-N5008-UT/MS-N5016-UT: 4K H.265 Pro NVR 5000 Series MS-N7016-UH/MS-N7032-UH: 4K H.265 Pro NVR 7000 Series...
Page 11 MS-N8032-UH/MS-N8064-UH: 4K H.265 Pro NVR 8000 Series MS-N1004-UPC: MS-N1009-UPT: MS-N5008-UPT: MS-N5016-UPT: 4K H.265 PoE NVR Series...
Page 12: Using A Usb Mouse
MS-N7016-UPH: MS-N7032-UPH: 2.2 Using a USB Mouse Item Click Description Live view: select the channel and show the toolbar of live view. Single- click Menu: select and confirm. Switch between single screen to multi-screen when in live view Double-click mode and playback mode. Left Button (1) Control rotation direction in PTZ mode.
Page 13: Hard Disk Installation
2.3 Hard Disk Installation 2.3.1 MS-N7000 series Hard Disk Installation Step1. Unscrew the back and both sides’ screws to open the upper lid. Step2. Install the hard disks into NVR with screws shown in below pictures. (SATA Slots of hard disk should be toward inside NVR.) Step3.
Page 14: Ms-N8000 Series Hard Disk Installation
2.3.2 MS-N8000 series Hard Disk Installation Step1. Unscrew the back and both sides’ screws to open the upper lid. Step2. Uninstall the upper hard disk panel. Step3. Install the hard disks into NVR with screws shown in below pictures.(SATA slots of hard disks should be toward inside NVR) Step4.
Page 15 Step4 Step5 Note: 1. The SATA slots are in SHORT HALF side and the SATA slot toward inside NVR. 2. The data connector sequence of MS-N7000 series is different from MS-N8000 series’.
Page 16: Local Operation
3. Local Operation 3.1 Wizard Setting By default, the Setup Wizard will start once the NVR has been loaded. You can click check-box to turn off the Wizard when startup. The Setup Wizard will guide you to complete important settings, which makes NVR more user-friendly.
Page 17 Note: 1. Only the NVR firmware version xx.9.0.3 or above supports activation function. 2. Password must be 8 to 32 characters long. 3. Password must contain at least one number and one letter. Step2. Set security questions which are used for resetting password. 10 questions are provided, you can select any one to set answer.
Page 18 Step4. Network setting. Input the IP Address, Subnet Mask, Gateway and Preferred DNS Server. PoE NIC IPv4 Address option is only for PoE NVR Series. Step5. Disk Management. Step6. Camera Management. Search all the cameras in LAN by filtering Protocol and IP Range. Select cameras and click...
Page 19 Note: 1. It can auto detect cameras that connected to PoE ports (only for PoE NVR). 2. If camera status shows inactive, please click to active it first. Step7. Record The user can start all channels recording by clicking Step8. Login...
Page 20 Input the user name and password to login the system. If you forget the password, click to reset password. Note: Only the NVR firmware version xx.9.0.3 or above supports password reset if you forget it.
Page 21: Live View
3.2 Live View 3.2.1 Live View Main Menu and Tool Bar can pop up and hide automatically at the right side or bottom of the interface. Note: Tool Bar won’t be hidden if there is event notification. Icons Descriptions Icons Descriptions Lock/Unlock the tool bar One screen layout...
Page 22 Note: Start all channels recording, Stop all channels recording, Adjust image in proportion and Display settings are for all displaying channels. There are multiple icons on each channel displayed in live view, indicating different status of the channel. Icons Descriptions It indicates video loss It indicates motion detection alarm It indicates that the current channel is recording.
Page 23 Display Info Show channel information, including Camera Number, Bit Rate, Frame Rate and Frame Size Previous Screen Switch to previous screen Next Screen Switch to next screen Logout Log out current user account Quick Operation for single channel In live view interface, left click the channel, the quick menu will appear. Icons Descriptions Icons...
Page 24 Note: Only for Milesight Fisheye Camera in Bundle-Stream Mode. PTZ Mode: Click to enter PTZ mode, and the selected channel will be full screen. You can do PTZ, Preset, Patrol and Pattern operation in the PTZ panel. Meanwhile, there are three icons in the tool bar.
Page 25: Layout
Event Notification: The prompt icon will automatically blink in the bottom bar when corresponding event is triggered. You can click it to check alarm details. And it can be unlocked manually. Also, you can select which alarm notification you want to get by click 3.2.2 Layout Step1.
Page 26: Playback
Click to close a channel. Select a window and then select a desired channel to add in. Click to save the settings or click to reset the layout. 3.3 Playback Playback supports to playback video according to recorded time and to play recorded video files in specified time period.
Page 27 Select channels you want to do playback. User can click to select maximum channel for playback, 9 channels for Milesight Mini (PoE) NVR Series while 16 channels for other NVR. Layout of playback will be automatically adjusted according to the amount of the selected...
Page 28 Step4. Select date. The day with blue letters means that there are record files. Video Playback Tool Bar Description Every channel got their own file bar, and there is only one file bar matching with the selected channel. The tool bar can display multiple types record. It shows that in this record period what kind of event has happened.
Page 29: Event Playback
File Management Zoom in timebar Zoom out timebar Best Decoding Performance Speed up/down: You can adjust the speed even when playback is paused. Lock Video: Once the video is locked, the whole file where the video located won’t be overwritten. You can also change the lock status in Retrieve interface. Tag Video: Quick Tag and Custom Tag are available for tag operation in Playback interface.
Page 30 Step2. Select Stream Type. Primary Stream and Secondary Stream are available. Step3. Select channel. Select channels you want to do playback. Layout of playback will be automatically adjusted according to the amount of the selected channels. Step4. Select Event Type. Step5: Select Start Time and End Time, click to search the record.
Page 31: Tag Playback
Step6: It would list all videos after clicking . Set pre playback and post playback time, then play the video by clicking Video Playback Tool Bar Description are the same as General Playback. 3.3.3 Tag Playback Step1. Select Tag Playback as playback type.
Page 32 Step2. Select Stream Type. Primary Stream and Secondary Stream are available. Step3. Select channel. Select channels you want to do playback. Layout of playback will be automatically adjusted according to the amount of the selected channels. Step4. Input tag name or any key words of tag. Step5: Select Start Time and End Time.
Page 33: Picture Playback
playback time, then play the tag video by clicking Video Playback Tool Bar Description are the same as General Playback. 3.3.4 Picture Playback Step1. Select Picture Playback as playback type. Step2. Select channel.
Page 34 Step3. Select Snapshot type, including Live View Snapshot and Playback Snapshot. Step4: Select Start Time and End Time. Step5: It would list all snapshot after clicking Click to play the selected picture, or click to auto play pictures. Note: 1. You can export picture by clicking...
Page 35: File Management
2. You can get detailed information from the display of exporting pictures. Icons Descriptions Icons Descriptions Play backward Play Previous picture Next picture Back to search interface 3.3.5 File Management It would list all the operation you did this time until exit the Playback interface. Operation includes clip video, snapshot, lock file and tag.
Page 36 Take clip video as example. Step1. Cut recorded files. Select the channel and date you want to backup, then select the time at timeline and click then drag the timeline to select the start time and end time of video. Step2.
Page 37: Retrieve
Step4. Select the device to storage exported video and then click Note: You can also directly format and create new folder of storage device here. There is an information promoted showing the export progress. Note: The download time of files depends on the time length of video you want to backup. 3.4 Retrieve 3.4.1 Common Backup Support to search out record file according to different stream type, record type and file type you...
Page 38 Step1: Set the search condition and click to search video. Step2: Select the file you want to backup and click . Also, you can click to backup all recorded videos. In Common Backup interface, play, lock and unlock video are supported. Click to play and to lock.
Page 39: Event Backup
3.4.2 Event Backup Support to search out and backup picture according to event type. The event type includes Motion Detection, Alarm Input, Alarm Output and VCA. Step1: Set the search condition and click to search video. Step2: Select the file you want to backup and click .
Page 40: Picture Backup
3.4.3 Picture Backup Support to search out and backup picture according to picture type. The picture type includes All, Live View Snapshot and Playback Snapshot. Step1: Set the search condition and click to search snapshot. Step2: Select the file you want to backup and click .
Page 41: Camera Settings
3.5 Camera Settings Before configuration, please ensure that the camera is connected to the same network as your NVR and that the network setting for your NVR is properly set. 3.5.1 Camera Management Step1. Add camera. Method1. Add camera through Device Search interface. ‘Settings’  ‘Camera’  ‘Device Search’.
Page 42 TCP or UDP transport protocol for it. Click to finish batch adding MSSP: You can search out all Milesight camera which has different network segment in the LAN.
Page 43 RTSP: You can add any IP cameras with RTSP protocol streams (Port: 554). It needs you to  input complete resource path of the IP camera to add it. Take Milesight device for example, the resource path of main stream is “rtsp://IP:port/main” and secondary stream is “rtsp://IP:port/sub”.
Page 44 Step2. Check the connection status. After adding the IP channels, click button on Camera Management interface, then appears under Status. If it doesn’t appear, you need to check if the network is connected or whether the user name or password is correct or not. Step3.
Page 45 Batch configuring camera Click , select multiple channels and set parameters of cameras. Step4. Delete camera. You can delete this channel by clicking , or you can select multiple devices and then click to delete.
Page 46: Device Search
NVR, and then camera will be successfully connected. The steps for adding the third party PoE cameras plugged into Milesight PoE NVR: Set camera’s IP segment to the same as NVR PoE NIC before plugging to PoE NVR;...
Page 47: Ptz Configuration
If the camera status shows Inactive, please select camera and click to active it first before adding to NVR. Besides, you can select channels and click batch editing their IP information. 3.5.3 PTZ Configuration Advanced Choose a channel and set the PTZ parameters. Besides, you can click to copy the same configuration to other channels.
Page 48 2. The PTZ protocol and address of IP channel must be consistent with those of the PTZ decoder. Configuration [Preset] Preset can be set to move your PTZ camera to a desired preset position. The preset position is the preparation for Patrol. Step1.
Page 49 Step2. Click to add preset position (up to 48 positions could be added). Set the parameters of preset positions, including preset position number, scan time and scan speed, then click Step3. Click to delete the preset position. Step4. Click to preview the path patrol. Click to stop.
Page 50 Step2. Drag the mouse or click 8 direction keys by mouse to rotate PTZ. Step3. Click to save the PTZ movement patterns. Step4. Click to preview the pattern. Click to stop. [PTZ Operation] Icons Descriptions Icons Descriptions PTZ direction control and auto scan PTZ speed button Zoom +, Focus +, Iris +...
Page 51: Image
3.5.4 Image 3.5.4.1 Display Step1. Select channel. Step2. Set the configuration. Power Line Frequency: 50Hz and 60Hz are available. Smart IR Mode: With the combination of the High Beam and Low Beam, The IR LEDs technology has been upgraded to provide better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the Zoom ratio.
Page 52 Far view IR level: Adjust the light strength of High-Beams LED light level from 0 to 100. IR Strength Value: The current value of Low-Beams LED and High-Beams LED light value. A djust the IR LED level from 0 to 100. IR LED Level: A djust the White LED level from 0 to 100.
Page 53 Step1. Select channel. Step2. Set the configuration. Reduce Motion Blur: Enable this function to reduce the motion blur of objects effectively. You can adjust the deblur level from 1 to 100. White Balance: Choose a white balance mode for the channel. Defog Mode: Better image effect in foggy weather.
Page 54 Step2. Set the configuration. Exposure Level: Level 0~10 are available to meet your need. Minimum Shutter: Set the Minimum Shutter to 1~1/100000s. Maximum Shutter: Set the Maximum Shutter to 1~1/100000s. Limit Gain Level: Set the Limit Gain Level to 1~100. IR-CUT Latency: The interval time of switching one mode to another.
Page 55 ” to save the settings. 3.5.4.5 Privacy Mask Milesight NVR supports to set privacy mask. It is used to cover some privacy area which is not proper to appear on monitor. You can add a privacy mask by following steps: Step1.
Page 56 Ensure the firmware version of the network camera is 4X.7.0.70 or above. 3.5.4.6 ROI Milesight NVR supports to set ROI (Region Of Interest). It is an image cropping feature designed to assist users in achieving bandwidth and storage optimization. You can add a ROI by following steps: Step1.
Page 57: Storage
3.6 Storage Preparation for Record Step1. Ensure your NVR has been installed and the HDD has been initialized, please check it on “Storage” -> ”Disk” interface. Step2. Ensure that the HDD has sufficient storage space. Enable [Recycle Mode] in the case of insufficient capacity of storage device on Storage -> General Settings interface .
Page 58: Video Record
3.6.1 Video Record Record Schedule Step1. Select channel. Step2. Set record schedule. Method 1: Click to edit schedule. Select Day, Record Type and Time to finish editing. Method 2: Select operation type: Continuous, Event (including Motion, Alarm and VCA) or Erase. Then drag a square in the time table to set record effective time.
Page 59 Batch Settings Step1. Click to enter Batch Settings interface. Step2. Select channels and click to start always record. Step3. Select channels and click to stop record. Record Settings Make general configuration for selected channels. Click to copy the same configuration to other channels. Channel: Select the channel which will be set.
Page 60 Camera: V4X.7.0.72 or above NVR: V7X.9.0.6 or above Firmware download link: https://www.milesight.com/support/download#firmware 2. Camera should equipped with on-board SD card. 3. Camera should be added to NVR by MSSP protocol. 4. No matter whether NVR has recording schedule or not, camera will do ANR recording and...
Page 61: Snapshot
3.6.2 Snapshot Snapshot Schedule Step1. Select channel. Step2. Set snapshot schedule. Method 1: Click to edit schedule. Select Day and Time to finish editing. Method 2: Select operation type: Continuous or Erase. Then drag a square in the time table to set record effective time.
Page 62 Batch Settings Step1. Click to enter Batch Settings interface. Step2. Select channels and click to start always record. Step3. Select channels and click to stop record. Snapshot Settings Make general configuration for selected channels. Click to copy the same configuration to other channels. Channel: Select the channel which will be set.
Page 63: General Settings
Snapshot Resolution: Set the snapshot resolution. Snapshot Interval: Set the snapshot Interval, 3~86400 seconds are available. Snapshot Due Time: Set the due time of snapshot files, 1~120days or unlimit are available. Note： Some models support continuous snapshot function. 3.6.3 General Settings Recycle Mode: You can enable or disable Recycle Mode for all storage device.
Page 64: Disk
3.6.4 Disk Network Disk NAS (Network-Attached Storage) should be available within the network and properly configured to store the recorded files and snapshots. You can click and then input corresponded NAS information to add NAS. Note: 1. NAS with NFS format is the only type for network disk adding. 2.
Page 65: Raid
HDD Type: RAID means RAID, NAS means network attached storage while LOCAL means normal disk mode. 3.6.5 RAID RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a logical unit. A RAID setup stores data over multiple hard disk drives to provide enough redundancy so that data can be recovered if one disk fails.
Page 66 Step1. Enable RAID. NVR will reboot after enabling. Step2. Select HDD and click to create a new array. New array will be available after a while. Hot Spare: A disk can be used as the hot spare for any array created in the system. Rebuild: When the array is in Degraded status, the device can start rebuilding the array automatically with the hot spare disk to ensure the high security and reliability of the data.
Page 67: Group
1. RAID only available for 4K H.265 NVR 7000/8000 Series and 4K H.265 PoE NVR 7000 Series. 2. RAID capacity can not larger than 16TB. 3. Quick Create only for RAID5. 3.6.6 Group You can divide disks into different groups, which is able to storage different channels’ recorded files into different groups.
Page 68: Event
3.7 Event 3.7.1 Motion Detection Step 1. Enable Motion Detection. Select channel , Sensitivity and click to enable Motion Detection. Step2: Set the area for triggering motion detection. You can set the area by dragging a square on live view window.
Page 69 Note: The motion detection area will be synchronized to Camera. Step 3. Set Effective Time of motion detection by clicking It will be more convenient by clicking to set or clear all time settings. Step 4. Set Action for motion detection alarm by clicking Audible Warning: NVR will trigger an audible beep when motion is detected.
Page 70 time settings. Click to edit record effective time manually. Trigger Interval: The effective interval between two actions when event triggered. Email Linkage: NVR will send an email to the address you set before. The user can set effective schedule as following two ways: Select the operation type, Email and Erase.
Page 71 Event Popup: Trigger alarm screen popup to full screen when alarm is triggered. You can set display duration time of all triggered channel in ‘Settings’->’General’->’Event Popup Duration Time’. Then triggered channel will be shown one by one as duration time. PTZ Action: Trigger PTZ action when alarm is triggered.
Page 72 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered. Step 5. Click to copy the same configuration to other channels.
Page 73: Video Loss
3.7.2 Video Loss Step 1. Select a channel. Step 2. Set Action for video loss by clicking Audible Warning: NVR will trigger an audible beep when motion is detected. The user can set effective schedule as following two ways: Select the operation type: Email or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 74 Email Linkage: NVR will send an email to the address you set before. User can set effective schedule as following two ways: Select the operation type: Email or Erase. Then drag a rectangle on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 75 User can set effective schedule as following two ways: Select the operation type: Email or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 76: Alarm Input
3.7.3 Alarm Input Alarm Input function is supported by MS-N5008-UT, MS-N5016-UT, MS-N7016-UH, MS-N7032-UH, MS-N8032-UH, MS-N8064-UH, MS-N5008-UPT, MS-N5016-UPT, MS-N7016-UPH MS-N7032-UPH. Step 1. Set Alarm input Number, Alarm Name and Alarm Type. Alarm Input No.: The channel which has input signal. Alarm Name: Set a name for the alarm. Alarm Type: Choose NO or NC alarm type for the alarm.
Page 77 Audible Warning: NVR will trigger an audible beep when alarm is triggered. User can set effective schedule as following two ways: Select the operation type: Audible or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 78 User can set effective schedule as following two ways: Select the operation type: Email or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings. Click to edit effective time manually.
Page 79 PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Select the operation type: Email or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 80: Alarm Output
3.7.4 Alarm Output Alarm Output function is supported by MS-N5008-UT, MS-N5016-UT, MS-N7016-UH, MS-N7032-UH, MS-N8032-UH, MS-N8064-UH, MS-N5008-UPT, MS-N5016-UPT, MS-N7016-UPH and MS-N7032-UPH. Step 1. Set Alarm output channel, Alarm Name, Alarm Type and Record Channels. Alarm Output No.: The channel which will output the alarm signal. Alarm Name: Set a name for the alarm.
Page 81: Exception
Manually Clear to stop it. Step 2. Select effective Time for alarm output. The user can set effective schedule as following two ways: Select the operation type: AlarmOut or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 82: Vca
And it can be unlocked manually. 3.7.6 VCA It uses Milesight Video Content Analysis technology which is applied in a wide range of domains including entertainment, health-care, retail, automotive, transport, home automation, safety and security. Milesight VCA provides advanced, accurate smart video analysis for Milesight network cameras.
Page 83 Step 1. Select channel and enable Region Entrance. Step 2. Set entrance detection region. You can select an area by dragging the mouse to set the trigger area, and this area will be synchronized to camera. Also, you can set or clear all set region by directly clicking Step 3.
Page 84 Step 4. Set Action for region entrance alarm by clicking Audible Warning: NVR will trigger an audible beep when region entrance is detected. The user can set effective schedule as following two ways: Select the operation type: Audible or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 85 time settings. Click to edit effective time manually. Trigger Interval: The effective interval between two actions when event triggered. Event Popup: Trigger alarm screen popup to full screen when alarm is triggered. You can set display duration time of all triggered channel in ‘Settings’->’General’->’Event Popup Duration Time’.
Page 86 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered.
Page 87 Region Exiting Region exiting is to make sure that any person or object won't exit the area that is being monitored. Any exit of people or objects will trigger an alarm. Step 1. Select channel and enable Region Exiting. Step 2. Set exit detection region. You can select an area by dragging the mouse to set the trigger area, and this area will be synchronized to camera.
Page 88 Step 3. Set Effective Time of region exiting by clicking NVR receives the alarm when effective time has been set. It will be more convenient by clicking to set or clear all time settings. Step 4. Set Action for region exiting alarm by clicking Audible Warning: NVR will trigger an audible beep when region exiting is detected.
Page 89 time settings. Click to edit record effective time manually. Trigger Interval: The effective interval between two actions when event triggered. Email Linkage: NVR will send an email to the address you set before. The user can set effective schedule as following two ways: Select the operation type, Email and Erase.
Page 90 Event Popup: Trigger alarm screen popup to full screen when alarm is triggered. You can set display duration time of all triggered channel in ‘Settings’->’General’->’Event Popup Duration Time’. Then triggered channel will be shown one by one as duration time. PTZ Action: Trigger PTZ action when alarm is triggered.
Page 91 Others: Trigger other channels record when alarm is triggered. Advanced Motion Detection Different from traditional motion detection, Milesight advanced motion detection can filter out “noise” such as lighting changes, natural tree movements, etc. When an object moves in the selected area, it will trigger alarm.
Page 92 Step 2. Set advanced motion detection region. You can select an area by dragging the mouse to set the trigger area, and this area will be synchronized to camera. Also, you can set or clear all set region by directly clicking Step 3.
Page 93 Step 5. Set Action for advanced motion detection alarm by clicking Audible Warning: NVR will trigger an audible beep when advanced motion is detected. The user can set effective schedule as following two ways: Select the operation type: Audible or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 94 Email Linkage: NVR will send an email to the address you set before. The user can set effective schedule as following two ways: Select the operation type, Email and Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 95 PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Select the operation type: PTZ or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 96 Tamper Detection Tamper Detection is used to detect possible tampering like the camera being unfocused, obstructed or moved. This functionality alerts security staff immediately when any above-mentioned actions occur. Step 1. Select channel and enable Tamper Detection. Step 2. Set Sensitivity. The sensitivity can be configured to detect various movement according to different requirements.
Page 97 Step 4. Set Action for tamper detection alarm by clicking Audible Warning: NVR will trigger an audible beep when tamper is detected. The user can set effective schedule as following two ways: Select the operation type: Audible or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 98 Email Linkage: NVR will send an email to the address you set before. The user can set effective schedule as following two ways: Select the operation type, Email and Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 99 PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Select the operation type: PTZ or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 100 Line Crossing Line Crossing detection is designed to work in most indoor and outdoor environment. An event will be triggered every time when the camera detects objects crossing a defined virtual line. Settings steps are shown as follows: Step 1. Select channel and enable Line Crossing. Step 2.
Page 101 Step 3. Draw detection lines. Step 4. Set Effective Time of line crossing by clicking NVR receives the alarm when effective time has been set. It will be more convenient by clicking to set or clear all time settings. Step 5. Set Action for line crossing alarm by clicking Audible Warning: NVR will trigger an audible beep when line crossing is detected.
Page 102 Select the operation type: Audible or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings. Click to edit record effective time manually. Trigger Interval: The effective interval between two actions when event triggered. Email Linkage: NVR will send an email to the address you set before.
Page 103 Event Popup: Trigger alarm screen popup to full screen when alarm is triggered. You can set display duration time of all triggered channel in ‘Settings’->’General’->’Event Popup Duration Time’. Then triggered channel will be shown one by one as duration time. PTZ Action: Trigger PTZ action when alarm is triggered.
Page 104 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered. Loitering When objects are loitering in a defined area for a specific period of time, it would trigger an alarm.
Page 105 After setting minimum loitering time from 3s to 1800s, any objects loitering in the selected area over the minimum loitering time will trigger the alarm. Also Milesight loitering allows to set “Object Size”. Only the object bigger than the set size will trigger the alarm.
Page 106 Step 4. Set Effective Time of loitering by clicking NVR receives the alarm when effective time has been set. It will be more convenient by clicking to set or clear all time settings. Step 5. Set Action for loitering alarm by clicking Audible Warning: NVR will trigger an audible beep when loitering is detected.
Page 107 The user can set effective schedule as following two ways: Select the operation type, Email and Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 108 User can set effective schedule as following two ways: Select the operation type: PTZ or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 109 Human Detection Human detection is used for figuring out whether an object is a human or not. Step 1. Select channel and enable Human Detection. Step 2. Enable Show Tracks or not. Step 3. Set Effective Time of human detection by clicking NVR receives the alarm when effective time has been set.
Page 110 Step 4. Set Action for human detection alarm by clicking Audible Warning: NVR will trigger an audible beep when human is detected. The user can set effective schedule as following two ways: Select the operation type: Audible or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 111 Email Linkage: NVR will send an email to the address you set before. The user can set effective schedule as following two ways: Select the operation type, Email and Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 112 PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Select the operation type: PTZ or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 113 People Counting People counting is able to count that how many people enter or exit during the setting period. Step 1. Select channel and enable People Counting. Step 2. Set counting OSD. It shows the number of counted people, including in and out number. Besides, you can clear count by clicking...
Page 114 Removed can detect and prompt an alarm if an object is removed from a pre-defined region. Note: 1. Object Left/Removed is optional, if you need this function, please contact Milesight sales first. 2. You need to upgrade the NVR to V7x.9.0.4-r2 or above to support this function.
Page 115 Step 2. Set detection region. You can select an area by dragging the mouse to set the trigger area, and this area will be synchronized to camera. Also, you can set or clear all set region by directly clicking Step 3. Set Min. Time. After setting minimum time from 3s to 1800s, any objects are left in the selected area or removed from the selected area over the minimum time will trigger the alarm.
Page 116 Step 5. Set Action for object left/removed alarm by clicking Audible Warning: NVR will trigger an audible beep when human is detected. The user can set effective schedule as following two ways: Select the operation type: Audible or Erase. Then drag a square on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 117 Event Popup: Trigger alarm screen popup to full screen when alarm is triggered. You can set display duration time of all triggered channel in ‘Settings’->’General’->’Event Popup Duration Time’. Then triggered channel will be shown one by one as duration time. PTZ Action: Trigger PTZ action when alarm is triggered.
Page 118 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered.
Page 119 Settings Milesight VCA provides the primary setting for the whole VCA functions. Draw Min. is to set the whether an object is big enough to trigger other settings. The frame you draw on the screen means that only if the object size is bigger than the frame, the settings for other VCA functions will take effect.
Page 120: Settings
Scenario Mode Select Indoor or Outdoor mode to meet your needs Select camera installation view, including Angle View, Horizontal View Camera Installation and Overhead View Analysis Type Select Standard or Advanced analysis type License Generated by camera’s information Show present license status, including Valid, Invalid, Expired, License Status Unactivated 3.8 Settings...
Page 121: Network
Local Authentication: Enable it to authenticate the user after rebooting. Menu Authentication: Enable it to authenticate the user every time when you click menu. Settings Page Timeout: The interface will switch to Live View automatically according to the time you set. Note: Not all NVR supports all the configurations above.
Page 122 Check DDNS check-box to enable it, then select a DDNS Server and input the user name, password and host name. Do not forget to save the configuration. Milesight has its own DDNS server. Please do port forwarding for HTTP port and RTSP port before enabling Milesight DDNS. Then input corresponding information and you can use http://ddns.milesight.com:MAC...
Page 123 User name: The E-mail address you choose to send emails. Please input full email address. Password: The password of the E-mail. SMTP Server: The SMTP Server of your E-mail. SMTP Port: The port of SMTP Server. It’s usually 25. Sender Email Address: It must be same as [User name]. Receiver Email Address: E-mail Address for the receivers.
Page 124 Other error Note: 1. Please make sure that NVR is available for internet before enabling. 2. If your NVR firmware version is not 7x.7.0.9-r2 or above, please contact Milesight to registered P2P first. 3.8.2.6 PPPoE PPPoE combines PPP protocol with Ethernet, by which Ethernet hosts can connect to a remote access concentrator via a simple bridging device.
Page 125 Before setting the SNMP, please download the SNMP software and manage to receive the NVR information via SNMP port. By setting the Trap Address, the NVR can send the alarm event and exception messages to the surveillance center. SNMP v1/2c/3: The version of SNMP. Please select the version of your SNMP software. SNMP v1: No security protection SNMP v2c: Require password for access SNMP v3: Support encryption on the premise that the HTTPS protocol must be...
Page 126: Holiday
Note: 1. The default HTTP port for IE browser is 80. 2. HTTP port is used for remote network access for 4k/H.265 NVR Series. HTTPS Port The default HTTPS port is 443. Please modify HTTPS ports according to actual application.
Page 127: User
Click to edit holiday information, including Holiday Name, Holiday Enable, Style, Start Date and End Date. Then click to save the configuration. 3.8.4 User...
Page 128 Note: 1. If the NVR firmware version is below xx.7.0.6, the default user name is “admin” and the default password is “123456”. 2. If the NVR firmware version is between xx.7.0.6 and xx.9.0.3, the default user name is “admin” and the default password is “ms1234”. 3.
Page 129: Maintenance
Edit user password Select a user, when the background color changes into dark gray, click to modify password. Sync new password to current connected PoE channels is available for PoE NVR Series. Delete user Select a user and click to delete a user.
Page 130 Note: The system will auto reboot after confirming upgrade. Save/Load Configuration Export Configuration File: Select a folder and then click to export configuration to USB device. Import Configuration File: Select a .cfg file and then click to import configuration to your NVR. Reset All parameters can be reset to default settings by clicking...
Page 131: Auto Reboot
Configured as the architecture of N pcs Master NVRs and 1 hot spare Slave NVR, Milesight N+1 Hot Spare guarantees the data integrity and reliability of video surveillance system. If any one of the Master NVRs fails, the Slave NVR can take over the channel information to ensure video recording.
Page 132: Status
For example, there are three NVRs in LAN, 192.168.5.200, 192.168.5.201 and 192.168.5.202. If you want to set 192.168.5.200 and 192.168.5.201 as Master NVR, and set 192.168.5.202 as Slave NVR. You can operate as following steps. Set 192.168.5.200 and 192.168.5.201 to Master Mode. And then input the IP and account information of 192.168.5.202 as Slave.
Page 133: Device Information
3.9.1 Device Information Device Information include Model, MAC Address, Hardware Version, Software Version, and Uptime. 3.9.2 Network Status Network Status includes three main parts: Network Status and Bandwidth Status. Network Status Bandwidth Status 3.9.3 Camera Status Camera Status includes Channel, Name, IP Address, Record, Frame Rate, Bit Rate, Frame Size and Status.
Page 134: Disk Status
PoE Port Status is only for PoE NVR, it will show you the current power and connection status of PoE ports. 3.9.4 Disk Status Disk Status Disk Status includes Port, Vendor, Status, Total(GB), Free(GB), HDD Type and Group. The user can see the Total Capacity (GB) and Available Capacity (GB) as well.
Page 135: Event Status
S.M.A.R.T is a monitoring system of HDD that detects anticipating failures of HDD and reports them with various indicators. Test Type: Fast and Full are available. Self-evaluation: If the HDD is in good condition, it will pass the self-evaluation. 3.9.5 Event Status Camera Event The user can check Camera Event here, including Video Loss, Motion and I/O.
Page 136 It shows the VCA status. will turn into when alarm is triggered. People Counting It shows every camera’s current In/Out number of people counting.
Page 137: Group Status
3.9.6 Group Status Check Group Status. The status of the all created Groups can be sorted by Group or Channel. 3.9.7 Logs The user can check, search and export logs in Logs interface. By selecting the Start Time, End Time, Main Type and Sub Type, which can narrow down the scale of logs, you can search for logs that you need.
Page 138: Logout
3.10 Logout Logout: Exit the current login account. Reboot: Restart the NVR. Shutdown: Close the NVR.
Page 139: Web Settings
4.WEB Settings 4.1 Account Setting Note: Only the NVR firmware version xx.9.0.3 or above supports account activation. Step1. Set password to active admin account. Note: 1. Password must be 8 to 32 characters long. 2. Password must contain at least one number and one letter. Step2.
Page 140: Login
4.2 Login Select Language on the top-right of interface. Input the user name, password and click Login to login NVR web page. The browser will prompt to install the plugin when first logging in the device. Please click “ ” to download the plugin for NVR. Follow the prompts to install the plugin.
Page 141 without plugin in Plugin-Free mode. 1. For Windows system, Plugin-Free mode is supported in Chrome/Firefox/Microsoft Edge browser. 2. For MAC system, Plugin-Free mode is supported in Chrome/Firefox/Safari browser. Only H.264 video codec are supported on Plugin-Free Mode for NVR. For better user experience, we recommend that you set the "profile"...
Page 142: Menu
Note: 1. If the NVR firmware version is below xx.7.0.6, the default user name is “admin” and the default password is “123456”. 2. If the NVR firmware version is between xx.7.0.6 and xx.9.0.3, the default user name is “admin” and the default password is “ms1234”. 3.
Page 143: Live View
4.4 Live View 4.4.1 Camera List List and play added cameras on Camera List page. Select one window one camera to play. Or click to get all cameras’ live video. Icons’ descriptions of Live View Icons Descriptions Icons Descriptions Play Primary Stream Play Secondary Stream Save View Play default view...
Page 144: Ptz
For PTZ cameras, you can operate PTZ, Preset, Patrol and Pattern on PTZ page directly. For the Fisheye camera, select a Fisheye channel, and you can operate PTZ, Preset and Patrol of this channel separately. Note: Only for Milesight Fisheye Camera with Bundle-Stream Mode.
Page 145: Image Configuration
4.4.3 Image Configuration Adjust image Brightness, Contrast, Saturation, Sharpness and Noise Reduction Level on Image Configuration page. 4.5 Playback To play and backup the recorded files.
Page 146: How To Playback
4.5.1 How to playback Step1. Select channel you want to do playback. Step2. Select Stream Type, including Primary Stream and Secondary Stream. Note: The playback stream you selected will be remembered when you reenter the web playback page. Step3. Select Date. Step4.
Page 147: Transcoding
has happened. The symbolic meaning of each color is shown below: Blue—Timing --- Event And take this bar above as an example, it means that there is continuously recording in this period. Icons Descriptions Icons Descriptions 1 screen mode 4 screens mode Speed Down Play Pause...
Page 148: Video Files Backup
Step2. Set Transcoding parameters. Set Transcoding, Frame Size, Bitrate and Frame Rate according to the network situation. The worse network situation, the lower transcoding parameter. Step3. Click to make transcoding take effect. 4.5.3 Video Files Backup Recorded files can be cut and backed up from WEB. Step1.
Page 149: Picture Files Backup
4.5.4 Picture Files Backup Step1. Browse a playback picture path in Local Configuration interface. Step2. Click to save the picture during video playback. Then the backup picture can be found in the files path you set before. Note: It is recommended to run browser as administrator before getting playback snapshot.
Page 150: Settings
Method1. Add IP Channel in Device Search interface. ‘Settings’  ‘Camera’  ‘Device Search’. 1. Select IP Range, NIC and Protocol, which includes ALL, ONVIF and MSSP. MSSP: You can search out all Milesight camera which has different network segment in the LAN.
Page 151 2. Click to search cameras at the same network segment with NVR. 3. Select one channel, click button, input password and click to finish. to batch adding the network cameras if they are of the same 3. Or you can check password, and you can choose TCP or UDP transport protocol for it.
Page 152 RTSP: You can add any IP cameras with RTSP protocol streams (Port: 554). It needs you to  input complete resource path of the IP camera to add it. Take Milesight device for example, the resource path of main stream is “rtsp://IP:port/main” and second stream is “rtsp://IP:port/sub”.
Page 153 After adding the IP channels, click on Camera Management interface, then appears under Status. If it doesn’t appear, you need to check if the network is connected or whether the user name, password is correct or not. Step3. Configure IP Channel. Configure one camera After successfully adding the channel, click to re-edit the channel info.
Page 154 Channel(Only for PoE NVR) 1. Connect Milesight camera to PoE port, it will detect the camera automatically. 2. If the camera's password is the same with NVR admin password, it will be successfully authenticated and be changed into the same network segment with internal NIC IPv4 address, then the camera will be connected successfully.
Page 155 NVR, and then camera will be successfully connected. The steps for adding the third party PoE cameras plugged into Milesight PoE NVR: Set camera’s IP segment to the same as NVR PoE NIC before plugging into PoE NVR;...
Page 156 devices that support selected protocol and NIC at the same LAN with NVR. If the camera status shows Inactive, please select camera and click to active it first before adding to NVR. Besides, you can select channels and click batch editing their IP information.
Page 157 1. The PTZ protocol and address of IP channel must be consistent with those of the PTZ decoder. 2. Settings for a PTZ camera must be configured before it can be used. Make sure that the PTZ and RS-485 of the NVR are connected properly. 4.6.2.4 Image Display Step1.
Page 158 day mode and night mode. Outdoor/Indoor Mode: Set Outdoor/Indoor mode for the channel. Corridor Mode: Set corridor mode. Image Rotation: Set image rotation. Local Display Video: Select NTSC or PAL for local display. Smoked Dome Cover: This function is only for Pro Dome. If Pro Dome is equipped with a Smoked Dome Cover, enable this function to display a normal image.
Page 159 Digital Image Stabilization: Decrease the blur and shakiness of the image. White Balance: Choose a white balance mode for the channel. Exposure Mode: Auto Mode, Manual Mode, and Schedule Mode are available. BLC/WDR/HLC Mode: Click to choose Single Mode, Day/Night Mode or Schedule Mode. BLC/WDR/HLC: Click to configure Back Light Compensation, Wide Dynamic Range or High Light Control.
Page 160 Step3. You can click [Copy to Camera] to copy the same configuration to other channels. Step4. Click save to save the settings. Privacy Mask Milesight NVR support to set privacy masks. It is used to cover some privacy area which is not proper to appear on monitor.
Page 161 Step4. Click save to save the settings. Note： Ensure the firmware version of the network camera is 4X.7.0.70 or above. Milesight NVR supports to set ROI (Region Of Interest). It is an image cropping feature designed to assist users in achieving bandwidth and storage optimization.
Page 162: Storage
You can add a ROI by following steps: Step1. Select channel and enable ROI. Step2. Set the video stream type and drag the mouse to select the area in the preview window. You can add 8 areas at most and each zone can be enabled and disabled. Step3.
Page 163 4.6.3.1 Video Record Record Schedule Step1. Select Record Schedule. Step2. Select the desired channel. Step3. Set record schedule. Select record type including Continuous, Event (including Motion Detection, Alarm and VCA), then set the time you want to record. It is convenient for you to set or clear all schedule by clicking...
Page 164 Also, you can click the time bar and reedit the record time Click to copy time setting to other days. Click [Copy to Camera] to copy the same configuration to other channels. Batch Settings Record and Stop are available for user to set for selected channels.
Page 165 Record Settings Make record settings for selected channels. Channel: Select the channel which will be set. Pre Record : Event pre-record duration time. It will start recording before the event is triggered. Post Record: Event post-record duration time. It will keep recording after the event is over. Audio Record: Select to record audio or not.
Page 166 Camera: V4X.7.0.72 or above NVR: V7X.9.0.6 or above Firmware download link: https://www.milesight.com/support/download#firmware 2. Camera should equipped with on-board SD card. 3. Camera should be added to NVR by MSSP protocol. No matter whether NVR has recording schedule or not, camera will do ANR recording and then retrieve back to NVR after reconnection.
Page 167 Also, you can click the time bar and reedit the record time Click to copy time setting to other days. Click [Copy to Camera] to copy the same configuration to other channels. Batch Settings Snapshot and Stop are available for user to set for selected channels. Snapshot Settings Make general configuration for selected channels.
Page 168 Note： Some models support continuous snapshot function. 4.6.3.3 General Settings Recycle Mode: You can enable or disable Recycle Mode for all storage device. eSATA Function: Both storage and backup are available. Note： eSATA Function is only available for NVR 8000 Series. 4.6.3.4 Disk Management You can check Disk status and add Network Disk here.
Page 169 Network Disk NAS (Network-Attached Storage) should be available within the network and properly configured to store the recorded files and snapshots. Note: NAS with NFS format is the only type for network disk adding. It’s recommended to use Hard Disk rather than Network Disk. You can add it manually or search local NAS by clicking...
Page 170: Event
4.6.4 Event 4.6.4.1 Motion Detection Step 1. Enable Motion Detection. Select channel , Sensitivity and click to enable Motion Detection. Step2: Set the area for triggering motion detection. You can select an area by dragging the mouse to set the trigger area, and this area will be synchronized to camera.
Page 171 Step 3. Set Effective Time of motion detection by clicking NVR receives the alarm when effective time has been set. It will be more convenient by clicking to set or clear all time settings. Step 4. Set Action for motion detection alarm by clicking Audible Warning: NVR will trigger an audible beep when motion is detected.
Page 172 Email Linkage: NVR will send an email to the address you set before. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings. What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day.
Page 173 Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings. Click apply to make configurations take effect. Alarm Output: Trigger alarm output when alarm is triggered.
Page 174 Others: Trigger other channels record when alarm is triggered. Step 5. Click [Copy to Camera] and to copy the same configuration to other channels. 4.6.4.2 Video Loss Step1. Select a channel Step2. Set Action for video loss. Audible Warning: NVR will trigger an audible beep when alarm is triggered. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 175 Email Linkage: NVR will send an email to the address you set before. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings. What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day.
Page 176 PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 177 4.6.4.3 Alarm Input Alarm Input function is supported by MS-N5008-UT, MS-N5016-UT, MS-N7016-UH, MS-N7032-UH, MS-N8032-UH, MS-N8064-UH, MS-N5008-UPT, MS-N5016-UPT, MS-N7016-UPH MS-N7032-UPH. Step1. Set Alarm input Number, Alarm Name and Alarm Type. Alarm Input No.: The channel which has input signal. Alarm Name: Set a name for the alarm. Alarm Type: Choose NO or NC alarm type for the alarm.
Page 178 Click [Copy to Alarm] and to copy the same configuration to other channels. Email Linkage: NVR will send an email to the address you set before. Trigger Interval: The effective interval between two actions when event triggered. Trigger Channels Snapshot: The snapshot of selected channels will be sent when alarm is triggered.
Page 179 Click [Copy to Alarm] and to copy the same configuration to other alarm channels. Alarm Output: Trigger alarm output when alarm is triggered. Step 3. Set effective time for alarm input by clicking Step 4. Click [Copy to Alarm] and to copy the same configuration to other alarm channels.
Page 180 Alarm Output: The channel which will output the alarm signal. Alarm Type: Select alarm type: NO or NC. Delay: Set the output time for alarm. If the output alarm lasts too long, you can select the Manually Clear to stop it. Alarm Name: Set a name for the alarm.
Page 181 Network Disconnected: Loss of network. Disk Full: HDD full, it usually happens when Recycle Mode is OFF. Record Failed: Recording fails, including HDD Failed, HDD Full and so on. Disk Error: Failed to recognize HDD. Disk Uninitilized: HDD is uninitialized. No Disk: There is no Disk.
Page 182 4.6.4.6 VCA It uses Milesight Video Content Analysis technology which is applied in a wide range of domains including entertainment, health-care, retail, automotive, transport, home automation, safety and security. Milesight VCA provides advanced, accurate smart video analysis for Milesight network cameras.
Page 183 NVR receives the alarm when effective time has been set. It will be more convenient by clicking to set or clear all time settings. Step 5. Set Action for region entrance alarm by clicking Audible Warning: NVR will trigger an audible beep when region entrance is detected. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 184 to set or clear all time settings. What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day. Trigger Interval: The effective interval between two actions when event triggered. PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 185 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered. Region Exiting Region exiting is to make sure that any person or object won't exit the area that is being monitored. Any exit of people or objects will trigger an alarm. Step 1.
Page 186 Step 2. Enable Region Exiting. Step 3. Set exit detection region. You can select an area by dragging the mouse to set the trigger area, and this area will be synchronized to camera. Also, you can set or clear all set region by directly clicking Step 4.
Page 187 Audible Warning: NVR will trigger an audible beep when region exiting is detected. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings. What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day.
Page 188 Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings. Click apply to make configurations take effect. Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered.
Page 189 Advanced Motion Detection Different from traditional motion detection, Milesight advanced motion detection can filter out “noise” such as lighting changes, natural tree movements, etc. When an object moves in the selected area, it will trigger alarm. Step 1. Select channel.
Page 190 Step 4. Set Sensitivity. The sensitivity can be configured to detect various movement according to different requirements. When the level of sensitivity is low, slight movement won’t trigger the alarm. Step 5. Set Effective Time of advance motion detection by clicking NVR receives the alarm when effective time has been set.
Page 191 What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day. Trigger Interval: The effective interval between two actions when event triggered. Email Linkage: NVR will send an email to the address you set before. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 192 to set or clear to set or clear all time settings. Click apply to make configurations take effect. Alarm Output: Trigger alarm output when alarm is triggered.
Page 193 Others: Trigger other channels record when alarm is triggered. Tamper Detection Tamper Detection is used to detect possible tampering like the camera being unfocused, obstructed or moved. This functionality alerts security staff immediately when any above-mentioned actions occur. Step 1. Select channel. Step 2.
Page 194 to set or clear all time settings. Step 5. Set Action for tamper detection alarm by clicking Audible Warning: NVR will trigger an audible beep when tamper is detected. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 195 What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day. Trigger Interval: The effective interval between two actions when event triggered. PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 196 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered. Line Crossing Line Crossing detection is designed to work in most indoor and outdoor environment. An event...
Page 197 will be triggered every time when the camera detects objects crossing a defined virtual line. Settings steps are shown as follows: Step 1. Select channel. Step 2. Enable Line Crossing. Step 3. Choose detection line number and define its direction. It allows to set up to four lines at a time.
Page 198 to set or clear all time settings. Step 6. Set Action for line crossing alarm by clicking Audible Warning: NVR will trigger an audible beep when line crossing is detected. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 199 to set or clear all time settings. What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day. Trigger Interval: The effective interval between two actions when event triggered. PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 200 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered. Loitering When objects are loitering in a defined area for a specific period of time, it would trigger an...
Page 201 After setting minimum loitering time from 3s to 1800s, any objects loitering in the selected area over the minimum loitering time will trigger the alarm. Also Milesight loitering allows to set “Object Size”. Only the object bigger than the set size will trigger the alarm.
Page 202 to set or clear all time settings. Step 6. Set Action for loitering alarm by clicking Audible Warning: NVR will trigger an audible beep when loitering is detected. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings.
Page 203 What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day. Trigger Interval: The effective interval between two actions when event triggered. PTZ Action: Trigger PTZ action when alarm is triggered. PTZ action includes Preset and Patrol. User can set effective schedule as following two ways: Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings.
Page 204 Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered. Human Detection Human detection is used for figuring out whether an object is a human or not.
Page 205 Step 1. Select channel. Step 2. Enable Human Detection. Step 3. Set Effective Time of human detection by clicking NVR receives the alarm when effective time has been set. It will be more convenient by clicking to set or clear all time settings. Step 4.
Page 206 Email Linkage: NVR will send an email to the address you set before. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings. What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day.
Page 207 Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings. Click apply to make configurations take effect. Alarm Output: Trigger alarm output when alarm is triggered. Others: Trigger other channels record when alarm is triggered.
Page 208 People Counting People counting is able to count that how many people enter or exit during the setting period. Step 1. Select channel. Step 2. Enable People Counting. Step 3. Draw detection line. Step 4. Set counting OSD.
Page 209 Removed can detect and prompt an alarm if an object is removed from a pre-defined region. Note: 1. Object Left/Removed is optional, if you need this function, please contact Milesight sales first. 2. You need to upgrade the NVR to V7x.9.0.4-r2 or above to support this function.
Page 210 After setting minimum time from 3s to 1800s, any objects are left in the selected area or removed from the selected area over the minimum time will trigger the alarm. Step 4. Set Effective Time of object left/removed by clicking NVR receives the alarm when effective time has been set.
Page 211 Email Linkage: NVR will send an email to the address you set before. Drag a line on the time table for time setting, it will be more convenient by clicking to set or clear all time settings. What’s more, you can click time bar to edit the time accurately. Click to copy time setting to other day.
Page 212 Drag a square on the time table for time setting, it will be more convenient by clicking to set or clear to set or clear all time settings. Click apply to make configurations take effect. Alarm Output: Trigger alarm output when alarm is triggered.
Page 213 Others: Trigger other channels record when alarm is triggered. Settings Milesight VCA provides the primary setting for the whole VCA functions. Draw Min. is to set the whether an object is big enough to trigger other settings. The frame you draw on the screen means that only if the object size is bigger than the frame, the settings for other VCA functions will take effect.
Page 214: System
Select camera installation view, including Angle View, Horizontal Camera Installation View and Overhead View Analysis Type Select Standard or Advanced analysis type License Generated by camera’s information Show present license status, including Valid, Invalid, Expired, License Status Unactivated 4.6.5 System 4.6.5.1 General Settings To setup the general parameters of NVR, including modify the Device Name, Boot Wizard, set system time manually and auto logout, etc.
Page 215 Compatible Mode, etc. Audio Out: This option will be hidden if NVR does not have Audio Out function. Boot Wizard: Enable it to pop up boot wizard after rebooting. Stream Information: Enable it to see bit rate, frame rate and frame size in both live view and playback interface.
Page 216 4.6.5.2 Network 4.6.5.2.1 Basic The system supports two IP address format: IPv4 and IPv6 IPv4 Enable IPv4 DHCP to auto search IP. When enable DHCP function, you can not modify IP/ Subnet mask/ Gateway. Disable IPv4 DHCP to modify IP/ Subnet mask/ Gateway manually. IPv6 Manual/ Router Advertisement/ DHCPv6 are available.
Page 217 Check DDNS check-box to enable it, then select a DDNS Server, input the user name, password and host name. Do not forget to save the configuration. Milesight has its own DDNS server. Please do port forwarding for HTTP port and RTSP port before enabling Milesight DDNS. Then input corresponding information and you can use http://ddns.milesight.com:MAC...
Page 218 Other error. Please contact with Milesight. Note: 1. Please make sure that NVR is available for internet before enabling. 2. If your NVR firmware version is not 7x.7.0.9-r2 or above, please contact Milesight to registered P2P first. 4.6.5.2.6 PPPoE PPPoE combines PPP protocol with Ethernet, by which Ethernet hosts can connect to a remote...
Page 219 Note： If both UPnP and PPPoE are enabled, only PPPoE will take effect. 4.6.5.2.7 SNMP SNMP is an abbreviation of Simple Network Management Protocol, which is convenient for NVR to be monitored and managed in the whole network environment. The SNMP is widely used in many network devices, software and systems.
Page 220 4.6.5.2.8 HTTPS Set in the interface to make sure getting access to NVR successfully via HTTPS, which is able to guarantee communication data security. The reliable and stable technology can secure the user information security and device safety. There are three certificate installation types: Create a Private Certificate Click “Create”...
Page 221 Create a Certificate Request Firstly, click “Create” button. And then enter Country, Common Name and other information to create the certificate request; Download the certificate request and submit it to the trusted certificate authority for signature; After receiving the signed valid certificate, import the certificate to the device. After creating and installing the certificate successfully, you can check the certificate information and clear the information on the following interface.
Page 222 Note: 1. The default HTTP port for IE browser is 80. 2. HTTP port is used for remote network access for 4k/H.265 NVR Series. HTTPS Port The default HTTPS port is 443. Please modify HTTPS ports according to actual application.
Page 223 Real Time Streaming Protocol (RTSP) is an application layer protocol in TCP/IP protocol system. The default RTSP port is 554. Please modify RTSP port according to actual application. Note: 1. RTSP port is used for remote network live view. 2. RTSP port valid range is 554 or 1024~65535. Push Message Enable With this option enabled, you can receive the alarm message on the mobile application.
Page 224 4.6.5.4 User Note: 1. If the NVR firmware version is below xx.7.0.6, the default user name is “admin” and the default password is “123456”. 2. If the NVR firmware version is between xx.7.0.6 and xx.9.0.3, the default user name is “admin”...
Page 225 Local Privilege means the privilege to the monitor connected with NVR Remote Privilege means the privilege to web settings. Edit user password Click to modify password. Sync new password to current connected PoE channels is available for PoE NVR Series.
Page 226 Delete user Select a user and click to delete a user. Modify Security Question Input Admin Password, select security question and answer. Click to save. Note: 1. This option is available for the NVR firmware version xx.9.0.3 or above only. 2.
Page 227 Click to reboot the NVR. Set Default Click to reset the NVR to factory defaults. Keeping the IP parameters and keeping the User information are available. Import Configuration File Click to select one file and click to import the NVR configuration.
Page 228: Status
4.6.5.6 Auto Reboot You can set day and time for reboot, and the NVR will reboot automatically at the time you set. Day: Everyday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday and Sunday. Time: Adjustable range from 00:00:00 to 23:59:59. Note： 1.
Page 229: Network Status
4.7.2 Network Status Network Status includes three main parts: Receive Bandwidth, LAN. 4.7.3 Camera Status Camera status includes Channel, Name, IPv4 Address, Record, Frame Rate, Bit rate, Resolution and Status. 4.7.4 Disk Status Disk status includes Port, Vendor, status, Total(GB), Free(GB), Type, In Use and Recycle Mode. You also can check the Total Capacity (GB) and Free Capacity.
Page 230: Event Status
4.7.5 Event Status Camera Event Camera Event shows camera event, including Video Loss, Motion and I/O. turns into when alarm is triggered. Alarm Alarm shows the Alarm Input and Alarm Output status. turns into when alarm is triggered.
Page 231: Packet Capture Tool
It shows the VCA status. turns into when alarm is triggered. People Counting It shows every camera’s current In/Out number of people counting. 4.7.6 Packet Capture Tool Input IP and Port,then click [Start] to start capture and click [End]to stop. Click [Download] to backup the captured packet locally.
Page 232 4.8 Logs In Log interface, you can check, search and export logs. By selecting the Main Type , Sub Type, Start Time and End Time which can narrow down the scale of logs, you can search for logs that you need and then export them locally. 4.9 Logout Click to exit the current account.
Page 233 5. Services Milesight Technology Co., Ltd provides customers with timely and comprehensive technical support services. End-users can contact your local dealer to obtain technical support. Distributors and resellers can contact directly with Milesight for technical support. Technical Support Mailbox: support@milesight.com Web: http://www.milesight.com...
