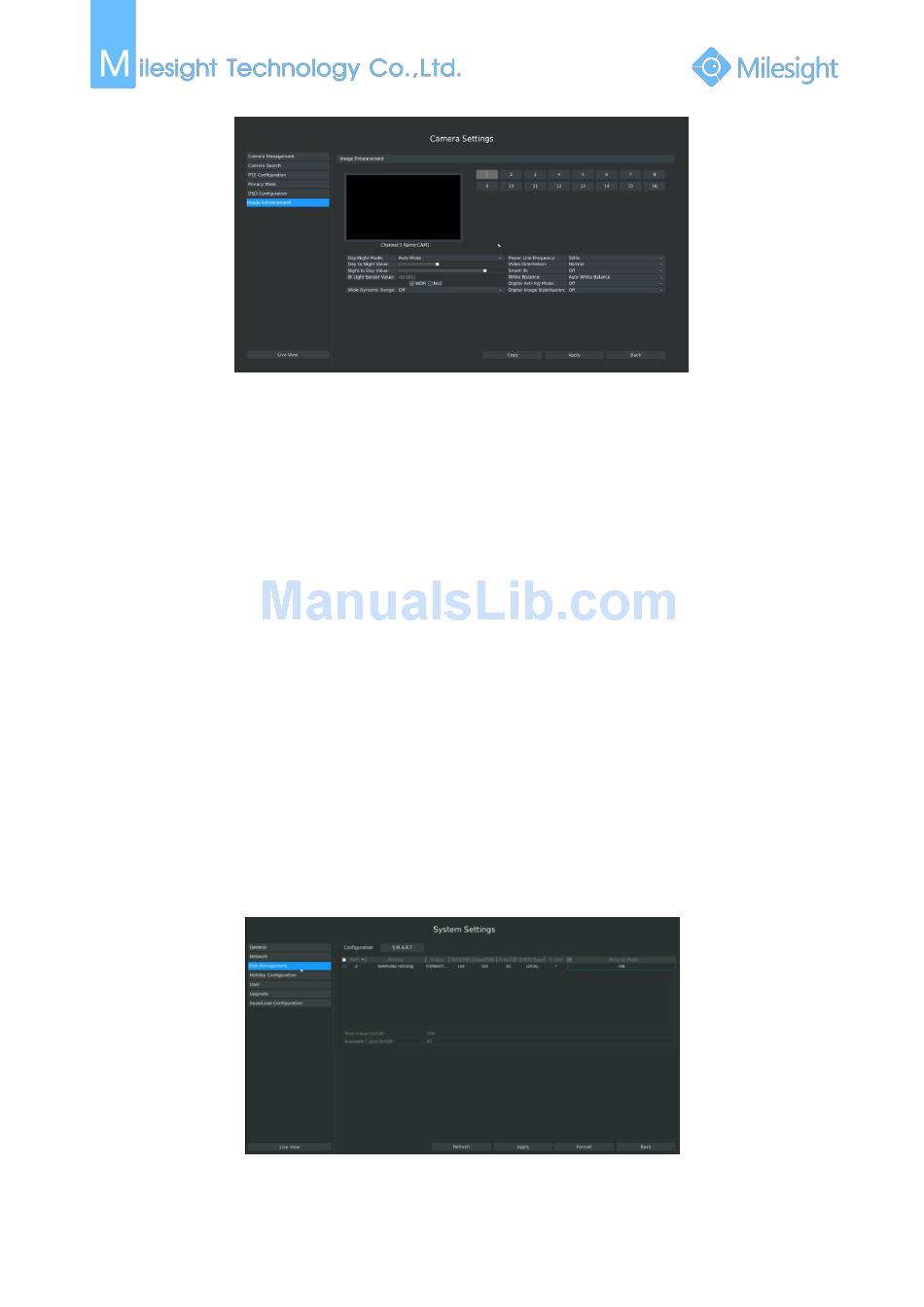

F-3.3.32
Step1. Select channel by clicking the channel number on the right-top, the selected channel will
change into gray and the channel number will change into yellow;
Step2. Set the configuration;
[Day/Night Mode]: Set the Day/Night mode for the channel;
[Day to Night Value]: Set the Minimum illumination intensity to trigger Night Mode;
[Night to Day Value]: Set the Maximum illumination intensity to trigger Day Mode;
[IR Light Sensor Value]: Shows the current value of IR light sensor;
[WDR/HLC]: Click to configure Wide Dynamic Range or High Light Control;
[Power Line Frequency]: 50Hz and 60Hz are available;
[Video Orientation]: Set the image rotation;
[Smart IR]: Set the Smart IR on and off;
[White Balance]: Choose a white balance mode for the channel;
[Digital Anti-fog Mode]: Set the Anti-fog function on and off;
[Digital Image Stabilisation]: Set the Image Stabilisation on and off.

3.4 Record Settings

Preparation for Configuration
Step1. Ensure your NVR has Install and initialize the HDD.
Enter disk management interface by clicking System Settings→Disk Management
F-3.4.1
