1.7.2 8500 Ethernet Cradle

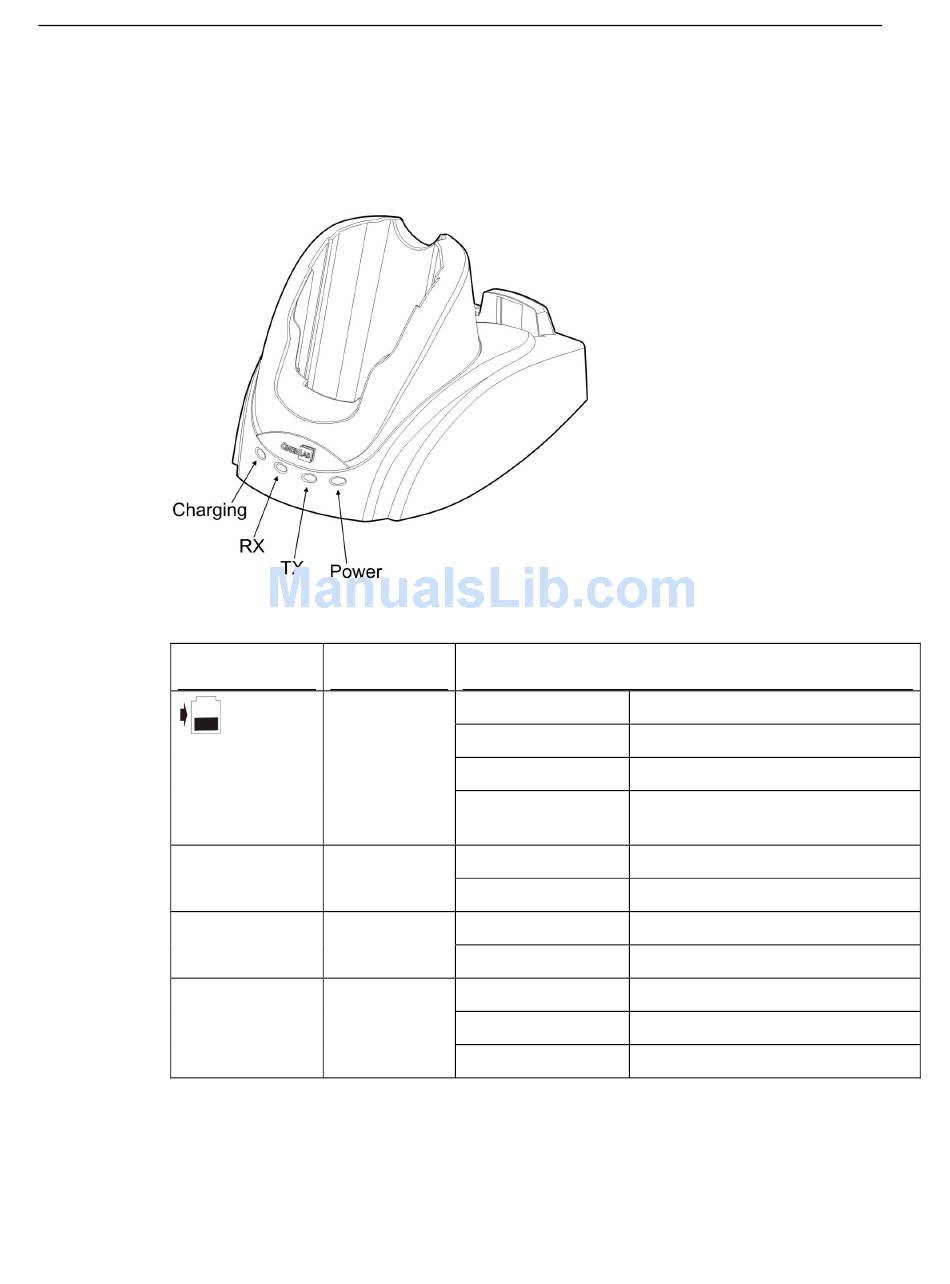

The cradle provides four LED indicators on the front panel to indicate connection and
charging status.
Front Panel LEDs
RX:
TX:
POWER:
Tasks
Spare battery
:
charging status
Receiving
status
Transmitting
status
Line status
Indication of connection status
Solid red Charging
Solid green Charging done
Flashing (red/green) Error occurs
Off Battery not ready (No redundant
battery)
Solid red Receiving data from Ethernet or host
Off No activity
Solid red Transmitting data to Ethernet or host
Off No activity
Solid red Ethernet connection via RJ-45
Solid green Direct connection via RS-232
Off Power off
