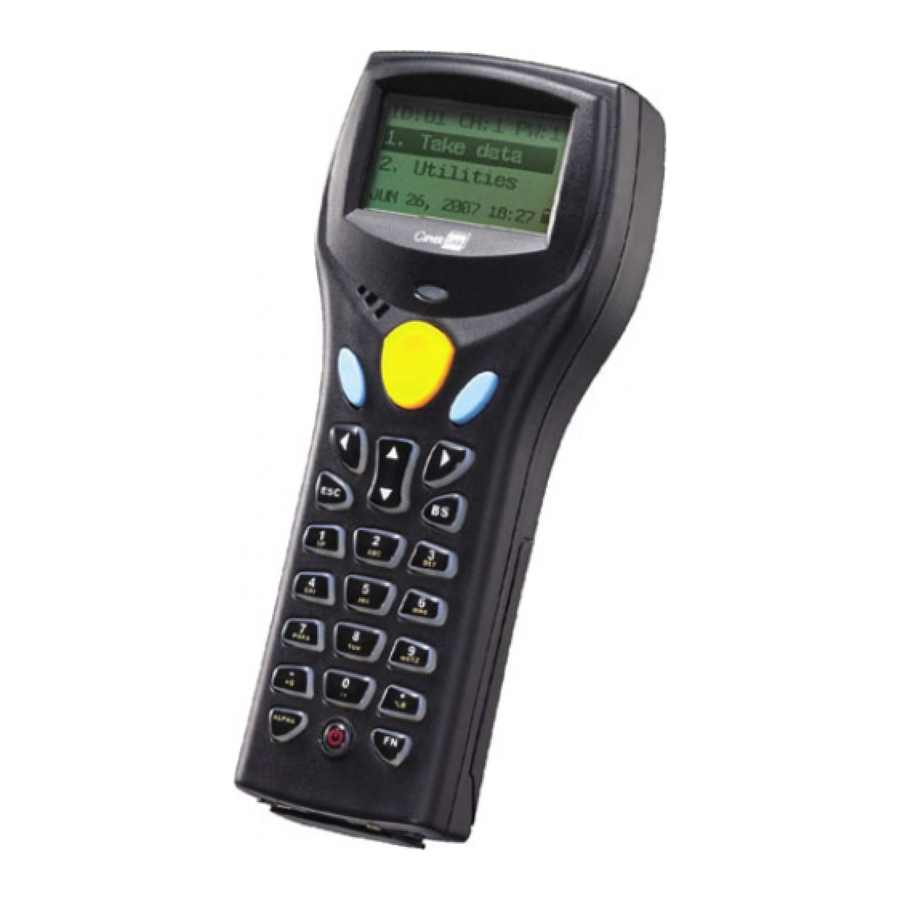

CipherLab 8300 Series
CIPHERLAB CO., LTD.
Head Office: 12F, 333, Dunhua S. Rd., Sec.2, Taipei, Taiwan
Tel: +886-2-8647-1166
e-mail:
support@cipherlab.com.tw
User's Guide
Version 1.05
Copyright © 2003 CIPHERLAB Co., Ltd.
Fax: +886-2-8647-2255
http://www.cipherlab.com.tw
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CipherLab 8300 Series

Summary of Contents for CipherLab 8300 Series

  • Page 1 CipherLab 8300 Series User's Guide Version 1.05 Copyright © 2003 CIPHERLAB Co., Ltd. CIPHERLAB CO., LTD. Head Office: 12F, 333, Dunhua S. Rd., Sec.2, Taipei, Taiwan Tel: +886-2-8647-1166 Fax: +886-2-8647-2255 e-mail: http://www.cipherlab.com.tw support@cipherlab.com.tw...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........................ii Preface ..........................1 General Features and Characteristics ...............2 Electrical ........................2 Environmental ......................2 Physical ........................2 ..........................2 Memory ........................2 Reader ........................2 Display ........................3 Keypad ........................3 Indicator ........................3 2.10 Communication ......................3 2.11 RF Specification ......................3 2.12 Software ........................4 2.13 Accessories...

  • Page 3: Preface

    1. Preface The 8300 Terminals are rugged, versatile, high performance data terminals designed for all-day, everyday use. They are powered by a Li-ion rechargeable battery with working hour longer than 100 hours. They are supported by a rich set of development tools, including a Windows-based application generator, “C”...

  • Page 4: General Features And Characteristics

    2M / 4M Bytes SRAM 2.6 Reader The 8300 Series Terminal can be equipped with either Laser or Long Range CCD scanner. The angle of the scanning beam can be straight (0°) or 45° to the LCD plane. Detailed specifications are as...

  • Page 5: Display

    Resolution: 0.125mm ~ 1.00mm Depth of field: 2 ~ 20cm Width of field: 45mm ~ 124mm Scan rate: 100 scans/sec Ambient Light Rejection: 1200 lux (Direct Sun-light) 2500 lux (Fluorescent Light) 2.7 Display 128x64 graphic dots FSTN LCD display with LED back-light 2.8 Keypad 24 numeric or 39 alphanumeric rubber keys.

  • Page 6: Software

    Standard: IEEE 802.11b & Wi-Fi compliance 2.12 Software Operating System: CipherLab proprietary OS Programming Tools: “C” compiler, BASIC compiler and a Windows-based Application Generator 2.13 Accessories Charging & Communication cradle RS-232 cable Keyboard wedge cable Power adapter Li-ion rechargeable battery pack 3560 Bluetooth Access Point 802.11b WLAN Access Point...

  • Page 8: Software Architecture

    3. Software Architecture The 8300 Series Terminal system software consists of three modules: the kernel & Application Manager module, the System module and the Application module. 3.1 Kernel & Application Manager The kernel is the innermost core of the system. It has the highest security and is always protected by the system.

  • Page 9: System

    terminal to be cloned without going through a PC. 3.2 System The system module provides the following services: 1. Information The system information includes hardware version, serial number, manufacturing date, kernel version, C library or BASIC run-time version, application program version and hardware configurations.
  • Page 10 Code 128 UPCE UPCE with ADDON 2 UPCE with ADDON 5 EAN8 EAN8 with ADDON 2 EAN8 with ADDON 5 EAN13 EAN13 with ADDON 2 EAN13 with ADDON 5 Other barcodes must be enabled through programming. 2. Buzzer To test the buzzer with different Frequency/Duration. Press ENTER key to start and then press any key to stop the test.

  • Page 11: Application

    And for RF models, you need to use the RF Database Manager to handle the in-coming and out-going data to and from the PC. For detailed information, please refer to “8300 Series Application Generator User’s Guide” and “RF Application Generator User’s Guide”.

  • Page 12: Operations

    4. Operations Batteries must be fresh and properly loaded before start operation. 4.1 Keypad operations The 8300 Series Terminals have two keyboard layouts: 24 rubber keys and 39 rubber keys. The functions of some special keys are as follows: SCAN Scan a barcode.

  • Page 13: System Mode

    4.3 System mode To enter the system menu, you need to press the 7, 9 and POWER keys simultaneously upon power up the terminal. For details of the services provided by the system, please refer to section 4.2. 4.4 Kernel mode To enter the kernel menu, you need to press 7, 9 and POWER keys simultaneously to enter the system menu first, then power off the unit and press 1, 7 and POWER key simultaneously.

  • Page 14: Troubleshooting

    5. Troubleshooting Does not power up after pressing POWER key. Make sure the battery is loaded. Charge the battery and check the charging status. If no charging information shown on the display, reload the battery and check if the battery is properly installed then try again. Call for service if problem persists.
