1.7 Status LEDs

1.7.1 8001/8300 Ethernet Cradle

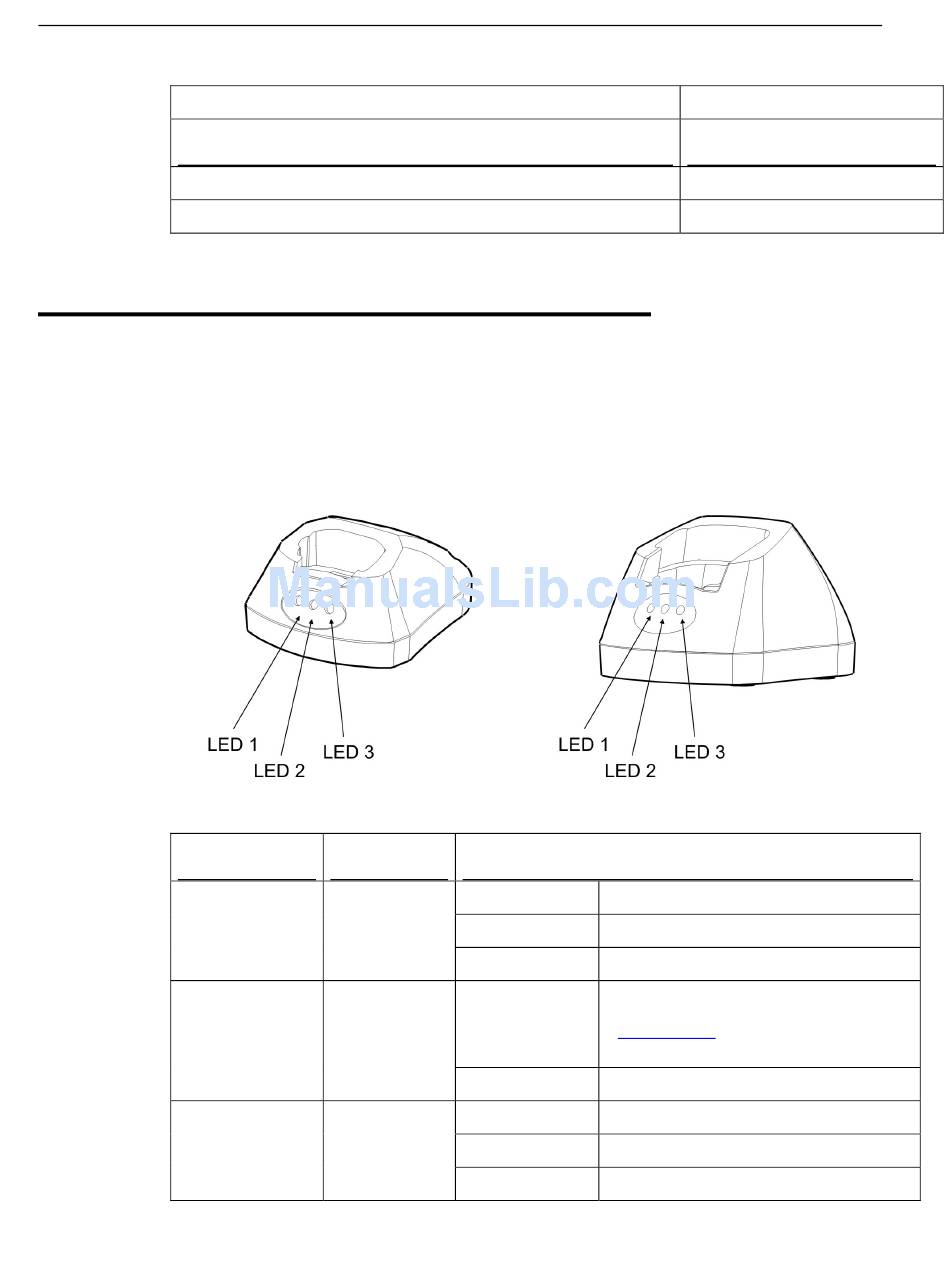

The cradle provides three LED indicators on the front panel to indicate connection status.
Front Panel LEDs
LED 1:
LED 2:
LED 3:
Chapter 1 Introducing the Ethernet Cradle
Tasks Indication of connection status
Line status Solid red
Flashing
Off
Tx / Rx status Flashing red
Off
LAN status Flashing green
Flashing red
Off
Select Work Online/Offline
Description
View IP settings
Select working mode
Waiting to connect
Connected
Hardware initializing
Data transmission
*Configurable when working mode set
to Data or Modem Mode
No activity
A 10 Mbps connection is available
A 100 Mbps connection is available
No activity
