While the drive is at a standstill additional machine data is measured.
The measured values are entered in the parameters automatically.

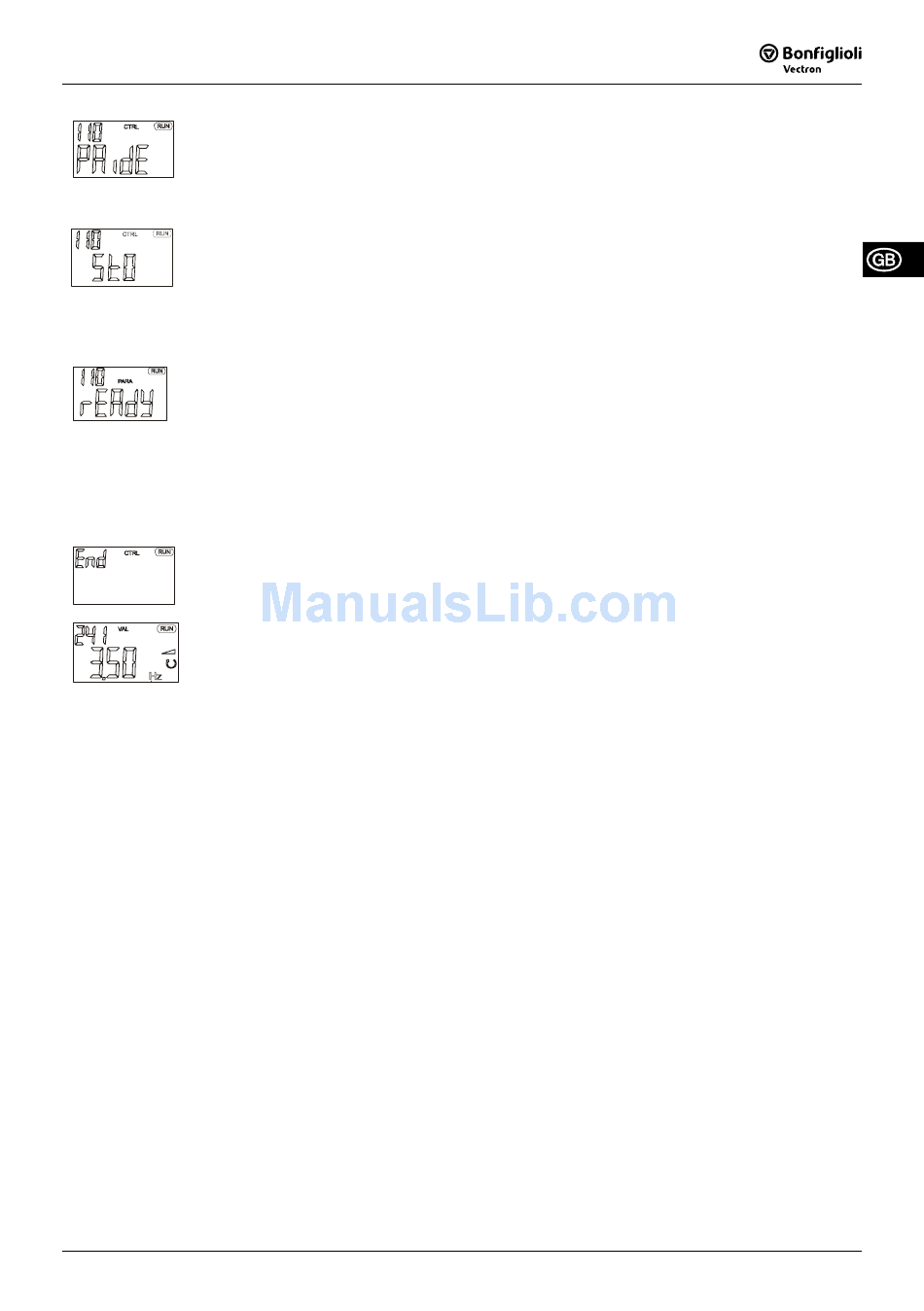

• Confirm the display "PAidE" by pressing the ENT key.
• After completion of the parameter identification, observe warning and error messages.
No signals are present at digital inputs S1IND (STOA) and S7IND (STOB). If signals were already
applied at the beginning of the guided commissioning, the "StO" message is not displayed.
Note:
The parameter identification feature of the frequency inverter requires the presence of signals at digital inputs
S1IND (STOA) and S7IND (STOB) for release of the power unit.
• Confirm the final "rEAdY" message by pressing the ENT key.
Canceling the operation with the ESC key or withdrawing the release signal S1IND (STOA) or
S7IND (STOB) results in an incomplete take-over of the values.
Note:
In the case of higher requirements as regards the accuracy of the speed/torque control, you should carry out the
guided commissioning procedure once again under operating conditions because part of the machine data
depends on the operating temperature.
During this procedure, confirm the rated values for the machine data already entered.
• Confirm the "End" display by pressing the ENT key.
The guided commissioning of the frequency inverter is terminated via a reset and the initiali-
zation of the frequency inverter. The relay output X10 signals a fault.
After successful initialization of the frequency inverter, the factory-set parameter
quency
The drive is accelerated to the adjusted
signals at digital inputs S1IND (STOA) and S7IND (STOB) and
•
• start clockwise operation with positive signal edge at S2IND or
start anti-clockwise operation with positive signal edge at S3IND
09/08
09/08
241 is displayed.
Minimum Frequency
418 (default value 3.50 Hz) by:
Actual Fre-
