4-3 FREQUENCY SYNTHESIZER CIRCUITS

The 3rd TX/RX LO signal (MAIN UNIT)
The 32 MHz reference frequency signal, which is gener-
ated by X1601, is amplified by the buffer (Q1601) and two
AMPs (IC1604 and IC1605), and then applied to the divider
(IC1603). The divided reference frequency signal is applied
to the DDS IC (IC1601).
Using the applied DDS master clock signal as the reference,
the DDS IC generates the 419 kHz 3rd RX/TX LO signal.
The generated 3rd RX/TX LO signal is passed through the
LPF (L1601, L1603, C1601, C1604, C1605, C1608), and
amplified by the AMP (IC1404), and then applied to the 1st
TX/RX IF mixer (IC1402).
The 2nd TX/RX LO signal (MAIIN UNIT)
The 32 MHz reference frequency signal, which is gener-
ated by X1601, is amplified by the buffer (Q1601) and AMP
(IC1604), and then doubled by the doubler (L1617, L1620,
L1622–L1624, C1642, C1644, C1647, C1650, C1653,
C1655, C1658, C1659, C1661–C1664), resulting in the 64
MHz 2nd TX/RX LO signal.
The 2nd TX/RX LO signal is amplified by the LO AMP
(IC1602), and then applied to the 2nd TX/RX IF mixer
(D1812, D1813), through the LPF (L1602, L1604, C1602,
C1603, C1606, C1607, C1609).

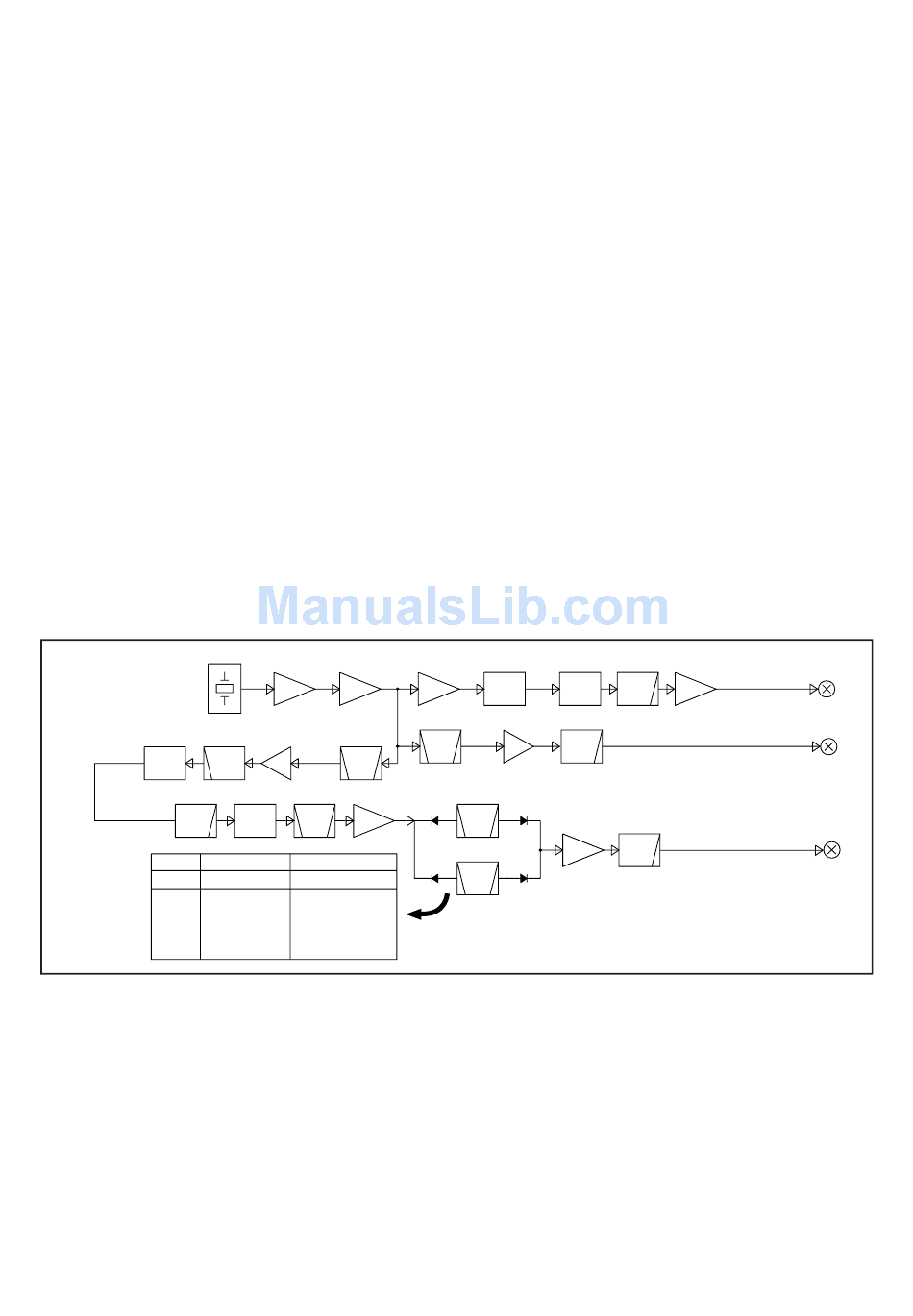

• FREQUENCY SYNTHESIZER CIRCUIT
32.0MHz
REF OSC
IC1703
DDS
32.2425—47.2275 MHz
LPF
Operating
frequenct
Diode SW
to pass
L1719, L1722, L1724,
L1726, L1728, L1730,
C1744, C1746, C1749,
C1750, C1752, C1754,
Components
C1755, C1760, C1762,
C1763, C1767, C1768,
C1772, C1773, C1775,
C1778
X1601
IC1604
Q1601
BUFF AMP
X8
IC1606
256 MHz
HPF AMP BPF
D1702 D1703 IC1705
X2 BPF AMP
0.03–15 MHz 15–30 MHz
D1704,D1706 D1705,D1707
L1720, L1723, L1725,
L1727, L1729, L1731,
L1732, C1745, C1747,
C1751, C1753, C1756–C1759,
C1761, C1764, C1765,
C1769, C1770, C1774,
C1776, C1779
The 1st TX/RX LO signal
The 32 MHz reference frequency signal, which is gener-
ated by X1601, is amplified by the buffer (Q1601) and
AMP (IC1604), and then applied to the BPF (L1608,
L1612–L1615, L1618, L1626, C1666, C1620, C1623,
C1625, C1629, C1631, C1634, C1636, C1638, C1640,
C1641, C1643, C1646, C1649, C1652, C1654), resulting in
the 256 MHz DDS master clock signal.
The clock signal is amplified by the AMP (IC1606), and then
applied to the DDS IC, through the HPF (L1627, L1628,
L1701, C1667, C1668, C1702, C1703).
Using the applied DDS master clock signal as the reference,
the DDS IC generates the 32.2425–47.2275 MHz signal.
The generated signal is passed through the LPF (L1704,
L1706, C1711, C1713, C1718, C1720, C1722, C1723), and
doubled by the doubler (D1702, D1703), resulting in the
64.485-94.455 MHz 1st TX/RX LO signal.
The 1st TX/RX LO signal is passed through the BPF
(L1709–L1711, C1729. C1731–C1734, C1736), amplified by
the AMP (IC1705), passed through another BPF (See the
table below for the detail), and then applied to the LO AMP
(Q1410).
The amplified 1st TX/RX LO signal applied to the 1st TX/RX
IF mixer (IC1401/Q1404–Q1407), through the LPF (L1419,
L1422, C1437, C1444, C1445, C1448).
IC1603
IC1601
IC1605
32MHz
AMP 1/2
X2
IC1602
LO
64 MHz
BPF
AMP
64.485-79.455MHz
(TX/RX Freq.= 0.03-15 MHz)
D1704
D1706
BPF
79.455-94.455MHz
(TX/RX Freq.= 15-30 MHz)
D1705
D1707
BPF
4-4
IC1404
DDS LPF AMP
LPF
Q1410
1st LO=64.485-94.455 MHz
LO
LPF
AMP
fc=94.455 MHz
IC1402
3rd LO=419.0 kHz
D1812
D1813
2nd LO=64.0 MHz
Q1404-Q1407
