SECTION 5.

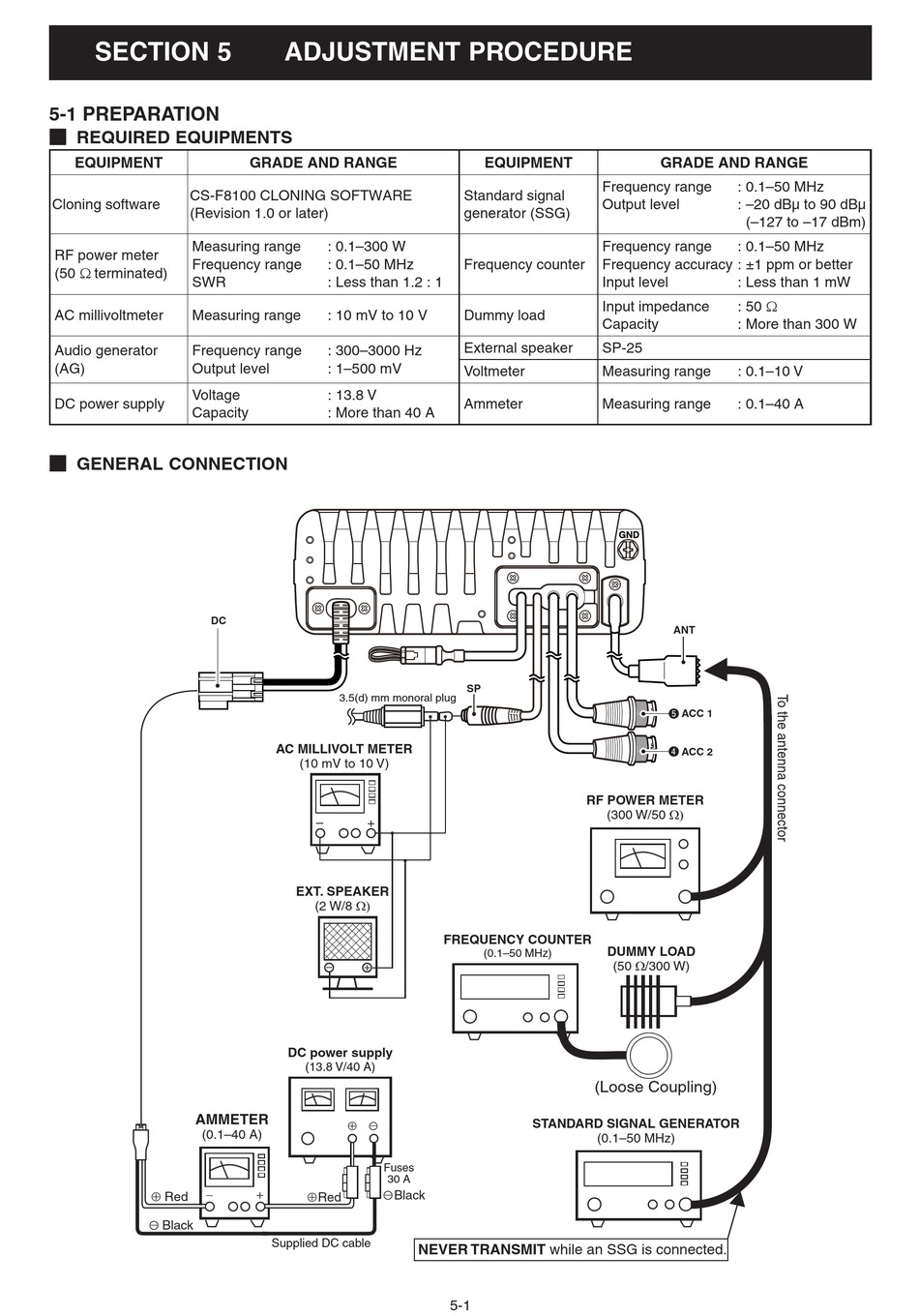

5-1 PREPARATION

M REQUIRED EQUIPMENTS
EQUIPMENT
CS-F8100 CLONING SOFTWARE
Cloning software
(Revision 1.0 or later)
Measuring range
RF power meter
Frequency range
(50 Ω terminated)
SWR
AC millivoltmeter Measuring range
Audio generator Frequency range
(AG) Output level
Voltage
DC power supply
Capacity
M GENERAL CONNECTION
DC
AMMETER
(0.1–40 A)
−
⊕ Red
−
Black
ADJUSTMENT PROCEDURE
GRADE AND RANGE
: 0.1–300 W
: 0.1–50 MHz
: Less than 1.2 : 1
: 10 mV to 10 V
: 300–3000 Hz
: 1–500 mV
: 13.8 V
: More than 40 A
3.5(d) mm monoral plug
AC MILLIVOLT METER
(10 mV to 10 V)
– +
EXT. SPEAKER
(2 W/8 Ω)
+
–
DC power supply
(13.8 V/40 A)
−
⊕
Fuses
30 A
−
Black
⊕ Red
Supplied DC cable
NEVER TRANSMIT while an SSG is connected.
EQUIPMENT
Frequency range
Standard signal
Output level
generator (SSG)
Frequency range
Frequency counter Frequency accuracy : ±1 ppm or better
Input level
Input impedance
Dummy load
Capacity
External speaker SP-25
Voltmeter Measuring range
Ammeter Measuring range
SP
RF POWER METER
(300 W/50 Ω)
FREQUENCY COUNTER
DUMMY LOAD
(0.1–50 MHz)
(50 Ω/300 W)
(Loose Coupling)
STANDARD SIGNAL GENERATOR
(0.1–50 MHz)
5-1
GRADE AND RANGE
: 0.1–50 MHz
: –20 dBµ to 90 dBµ
(–127 to –17 dBm)
: 0.1–50 MHz
: Less than 1 mW
: 50 Ω
: More than 300 W
: 0.1–10 V
: 0.1–40 A
ANT
t
ACC 1
r
ACC 2
