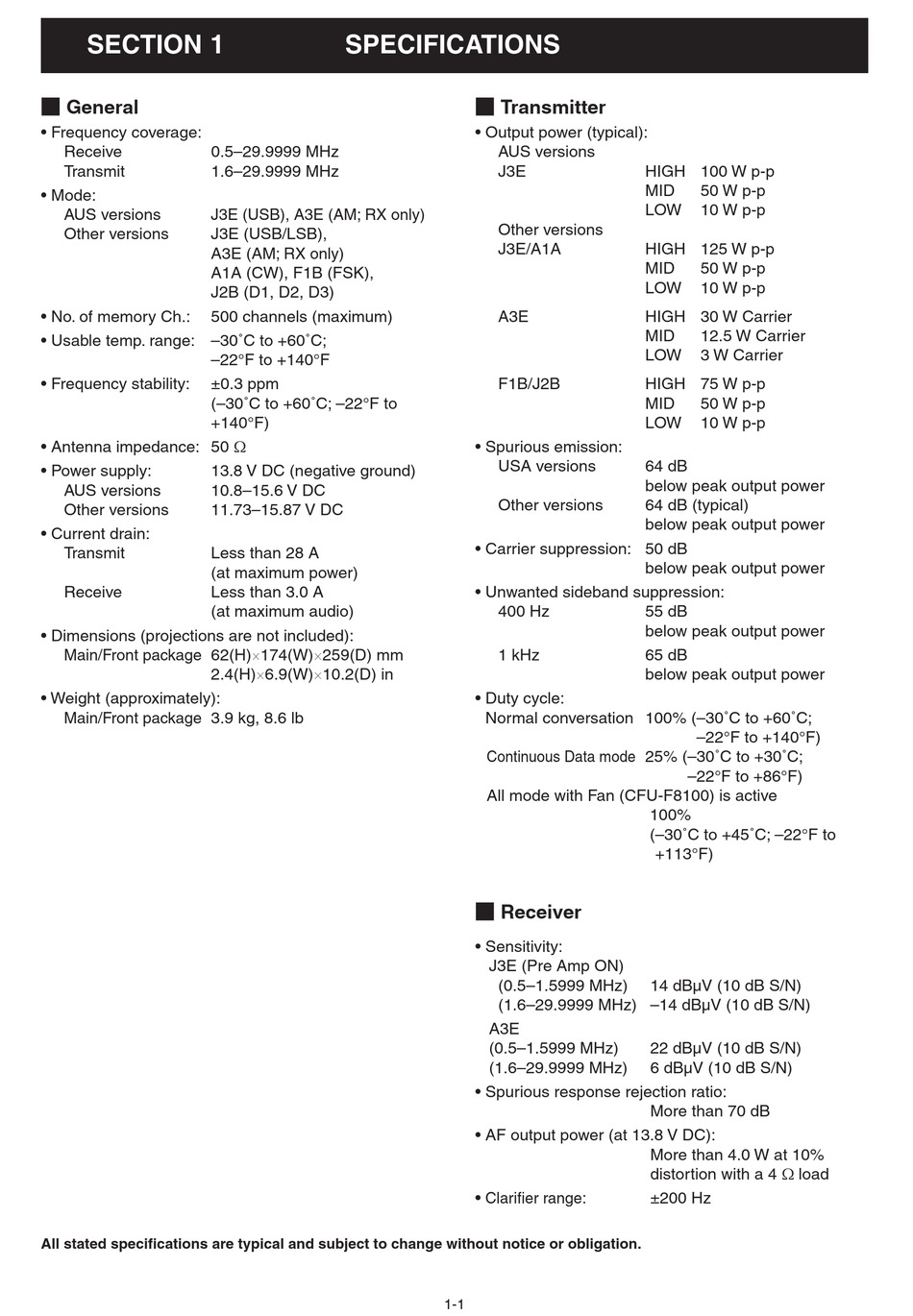

SECTION 1.
M General
• Frequency coverage:
Receive 0.5–29.9999 MHz
Transmit 1.6–29.9999 MHz
• Mode:
AUS versions J3E (USB), A3E (AM; RX only)
Other versions J3E (USB/LSB),
A3E (AM; RX only)
A1A (CW), F1B (FSK),
J2B (D1, D2, D3)
• No. of memory Ch.: 500 channels (maximum)
• Usable temp. range: –30˚C to +60˚C;
–22°F to +140°F
• Frequency stability: ±0.3 ppm
(–30˚C to +60˚C; –22°F to
+140°F)
• Antenna impedance: 50 Ω
• Power supply: 13.8 V DC (negative ground)
AUS versions 10.8–15.6 V DC
Other versions 11.73–15.87 V DC
• Current drain:
Transmit Less than 28 A
(at maximum power)
Receive Less than 3.0 A
(at maximum audio)
• Dimensions (projections are not included):
Main/Front package 62(H)×174(W)×259(D) mm
2.4(H)×6.9(W)×10.2(D) in
• Weight (approximately):
Main/Front package 3.9 kg, 8.6 lb
All stated specifi cations are typical and subject to change without notice or obligation.
SPECIFICATIONS
M Transmitter
• Output power (typical):
AUS versions
J3E
Other versions
J3E/A1A
A3E
F1B/J2B
• Spurious emission:
USA versions
Other versions
• Carrier suppression: 50 dB
• Unwanted sideband suppression:
400 Hz
1 kHz
• Duty cycle:
Normal conversation 100% ( –30˚C to +60˚C;
Continuous Data mode 25% ( –30˚C to +30˚C;
All mode with Fan (CFU-F8100) is active
M Receiver
• Sensitivity:
J3E (Pre Amp ON)
(0.5–1.5999 MHz)
(1.6–29.9999 MHz) –14 dBµV (10 dB S/N)
A3E
(0.5–1.5999 MHz)
(1.6–29.9999 MHz)
• Spurious response rejection ratio:
• AF output power (at 13.8 V DC):
• Clarifi er range:
1-1
HIGH 100 W p-p
MID 50 W p-p
LOW 10 W p-p
HIGH 125 W p-p
MID 50 W p-p
LOW 10 W p-p
HIGH 30 W Carrier
MID 12.5 W Carrier
LOW 3 W Carrier
HIGH 75 W p-p
MID 50 W p-p
LOW 10 W p-p
64 dB
below peak output power
64 dB (typical)
below peak output power
below peak output power
55 dB
below peak output power
65 dB
below peak output power
–22°F to +140°F)
–22°F to +86°F)
100%
( –30˚C to +45˚C; –22°F to
+113°F)
14 dBµV (10 dB S/N)
22 dBµV (10 dB S/N)
6 dBµV (10 dB S/N)
More than 70 dB
More than 4.0 W at 10%
distortion with a 4 Ω load
±200 Hz
