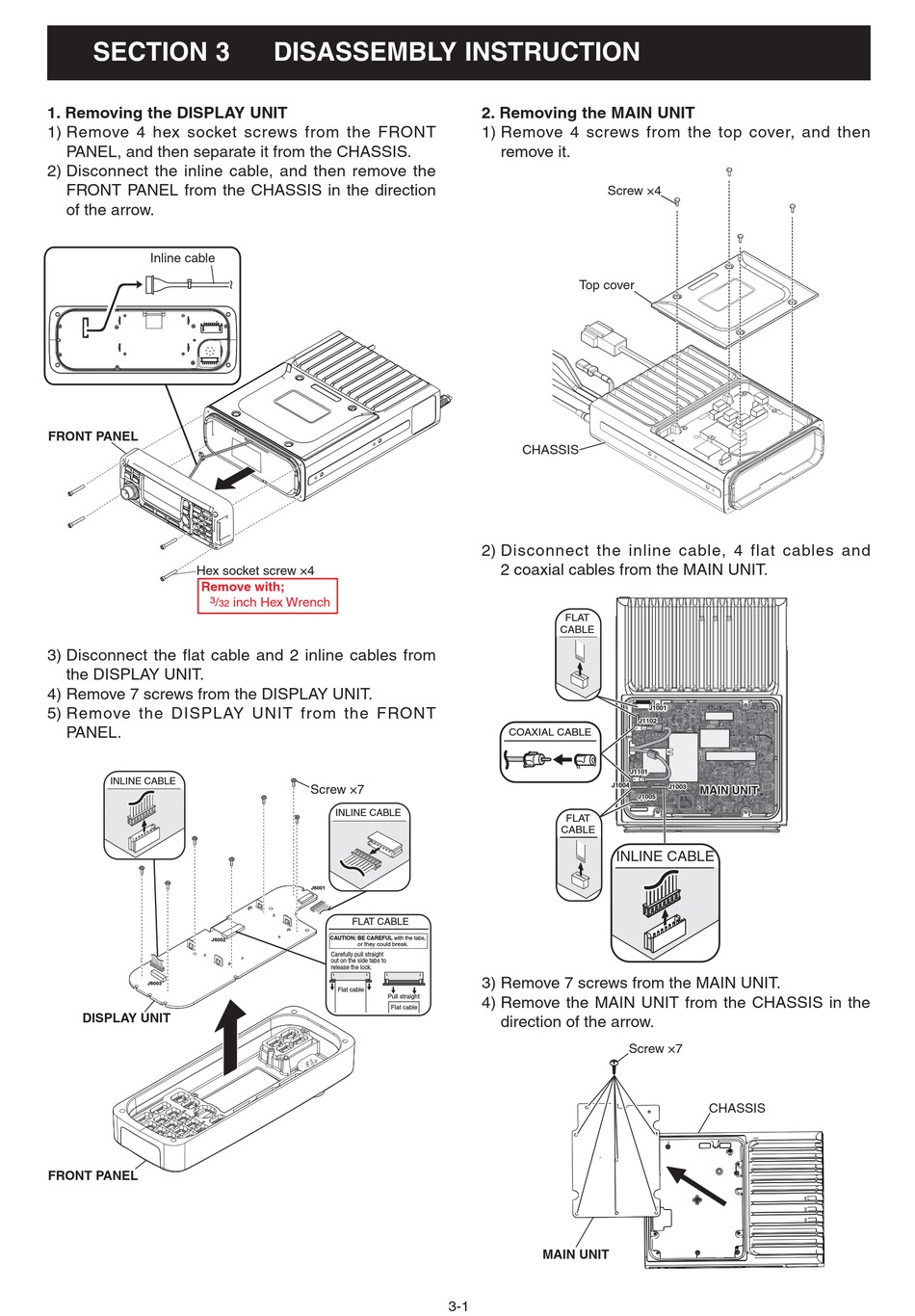

SECTION 3.
1. Removing the DISPLAY UNIT
1) Remove 4 hex socket screws from the FRONT
PANEL, and then separate it from the CHASSIS.
2) Disconnect the inline cable, and then remove the
FRONT PANEL from the CHASSIS in the direction
of the arrow.
Inline cable
FRONT PANEL
Hex socket screw ×4
Remove with;
3
/
32
3) Disconnect the flat cable and 2 inline cables from
the DISPLAY UNIT.
4) Remove 7 screws from the DISPLAY UNIT.
5) Remove the DISPLAY UNIT from the FRONT
PANEL.
INLINE CABLE
J6002
J6003
DISPLAY UNIT
FRONT PANEL
DISASSEMBLY INSTRUCTION
inch Hex Wrench
Screw ×7
INLINE CABLE
J6001
FLAT CABLE
CAUTION: BE CAREFUL with the tabs,
or they could break.
Carefully pull straight
out on the side tabs to
release the lock.
Flat cable
flat cable
Pull straight
Flat cable
2. Removing the MAIN UNIT
1) Remove 4 screws from the top cover, and then
remove it.
Screw ×4
Top cover
CHASSIS
2) Disconnect the inline cable, 4 flat cables and
2 coaxial cables from the MAIN UNIT.
FLAT
CABLE
COAXIAL CABLE
J1005 J1004
FLAT
CABLE
INLINE CABLE
3) Remove 7 screws from the MAIN UNIT.
4) Remove the MAIN UNIT from the CHASSIS in the
direction of the arrow.
MAIN UNIT
3-1
J1005 J1001
J1005 J1102
J1101 J1005
J1003 J1005
MAIN UNIT
MAIN UNIT
J1005 J1005
Screw ×7
CHASSIS
