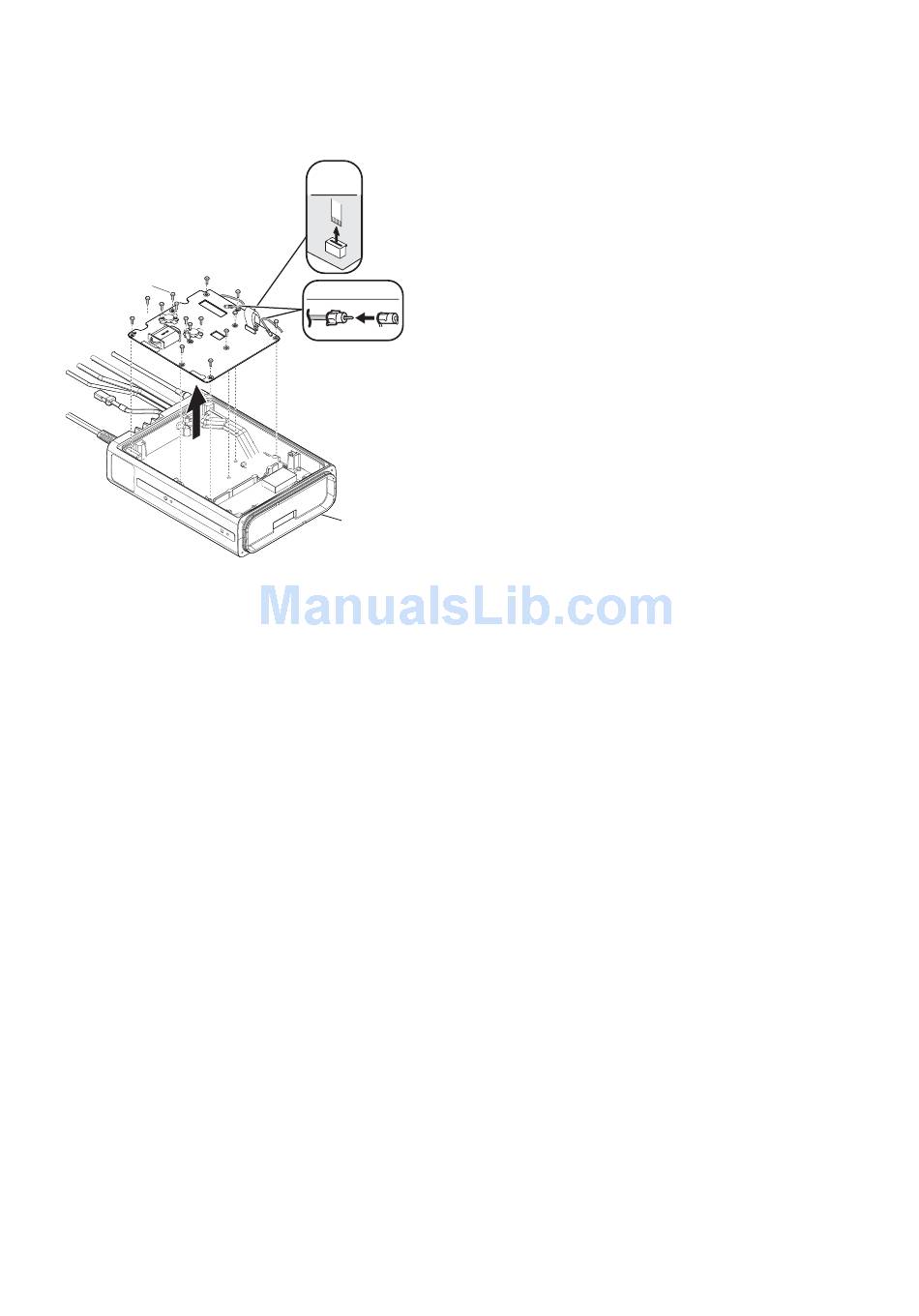

5. Removing the PA UNIT
1) Remove the 15 screws from the PA UNIT.
2) Disconnect the 2 flat cables and 2 coaxial cables
from the PA UNIT.
3) Remove the PA UNIT from the CHASSIS in the
direction of the arrow.
Screw ×15
PA UNIT
FLAT
CABLE
COAXIAL CABLE
CHASSIS
3-3
