Icom IC-F8100 Service Manual page 73

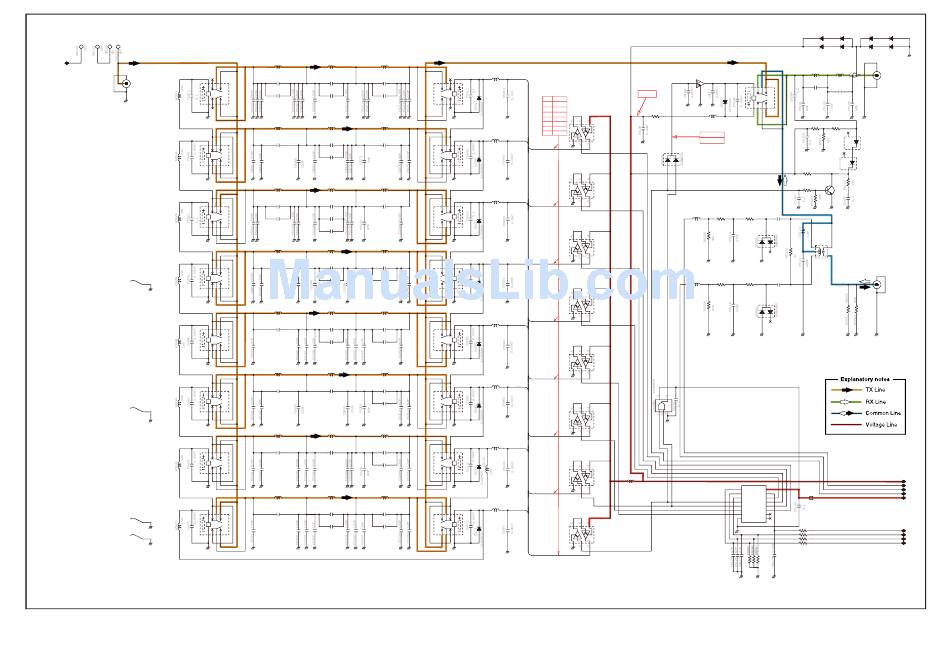

• PA UNIT (2/2)
PAO
RL5011
FTR-B4CA012Z
1.6M-2.24M
J5001
RL5041
FTR-B4CA012Z
4.8M-7M
RL5021
FTR-B4CA012Z
2.24M-3.3M
RL5051
FTR-B4CA012Z
7M-9.5M
MP5004
2590
RL5081
FTR-B4CA012Z
20M-30M
RL5061
FTR-B4CA012Z
9.5M-14M
MP5007
2590
RL5031
FTR-B4CA012Z
3.3M-4.8M
14M-20M RL5071
FTR-B4CA012Z
MP5005
2590
MP5006
2590
L5011 L5012 L5013
LR-571 LR-571 LR-570
C5204 C5209 C5213
470P 680P 120P
C5205 C5210 C5214
100P 100P 39P
L5041 L5042 L5043
LR-576 LR-577 LR-578
C5263 C5267 C5272
47P 100P 120P
C5268
100P
L5021 L5022 L5023
LR-581 LR-579 LR-579
C5224 C5229 C5234
100P 330P 330P
C5225 C5230
12P 220P
C5356
27P
L5051 L5052 L5053
LR-549 LR-550 LR-551
C5283 C5287 C5291
30P 120P 100P
C5288 C5292
30P 10P
L5081 L5082 L5083
LR-556 LR-557 LR-557
C5343 C5347 C5351
10P 27P 18P
C5348 C5352
22P
7P
L5061 L5062 L5063
LR-552 LR-553 LR-553
C5303 C5307 C5311
22P 100P 47P
C5312
33P
L5031 L5033
L5032
LR-573 LR-574 LR-575
C5243 C5247 C5252
68P 330P 220P
C5253
24P
L5071 L5072 L5073
LR-554 LR-555 LR-555
C5323 C5327 C5331
9P 47P 22P
C5328 C5332
27P 10P
11-10
FTR-B4CA012Z L5112
L1
33U
L 1 1 . 3 7 V
L 2 1 . 3 7 V
RL5012
L 3 1 . 3 7 V
L 4 1 . 3 7 V
L 5 1 . 3 7 V
L 6 1 . 3 7 V
Q5018
L 7 1 . 3 7 V
UMD3N
L 8 1 . 3 7 V
L5142
FTR-B4CA012Z L4
33U
L8
RL5042
Q5017
UMD3N
L5122
L2
FTR-B4CA012Z
L7
33U
RL5022
Q5016
UMD3N
L5152
FTR-B4CA012Z L5 L6
33U
RL5052
Q5015
UMD3N
L5182
L8 L5
FTR-B4CA012Z
10U
RL5082
Q5014
UMD3N
L4
L5162
FTR-B4CA012Z L6
33U
RL5062 Q5013
UMD3N
L3
L5132
FTR-B4CA012Z L3
33U
Q5012
RL5032 UMD3N
L5006
1.5U
L2
L5172
FTR-B4CA012Z L7
10U
Q5011
UMD3N
RL5072
L1
D5088
1SS403
D5086
1SS403
L5001
Q5001
RL5001
DTC114EU
0.33U
FTR-B4CA012Z
C5102
8P
1 . 3 7 V
R5091 L5003
0 100U
R5112
390
T X = . 6 2 V
R X = 0 V
R5111
4.7k
KTC2875
Q5019
R5108
2.2k
R5005 R5004
L5004 C5112
100U 0.0022
0 10k
L5101
LR-391
L5005 R5008 R5007
C5113
100U 0 10k 0.0022
FOR
REF
IC5001
1 16
STR V+
2 15
D OE
EP5002
3 14
CLK Q5
4 13
Q1 Q6 MPZ2012S601A
5 12
Q2 Q7
6 11
Q3 Q8
7 10
Q4 Q'S
8 9
GND QS
CD4094BPWR
R5104 100
R5101 100
R5102 100
R5103 100
*: Refer to the PARTS LIST for the value and name of component.
D5089 D5090 D5091
1SS403 1SS403 1SS403
D5087
D5084 D5085 1SS403
1SS403
1SS403
J5002
MAIN
L5002
0.27U
RX
C5104
20P
R5114
4.7k
MMBV3700
D5083
MMBV3700
D5082
ANT
J5005
C5001
0.68
14V
FOR
REF
TRXS
5V
EXRE
MCK
MDT
STR
